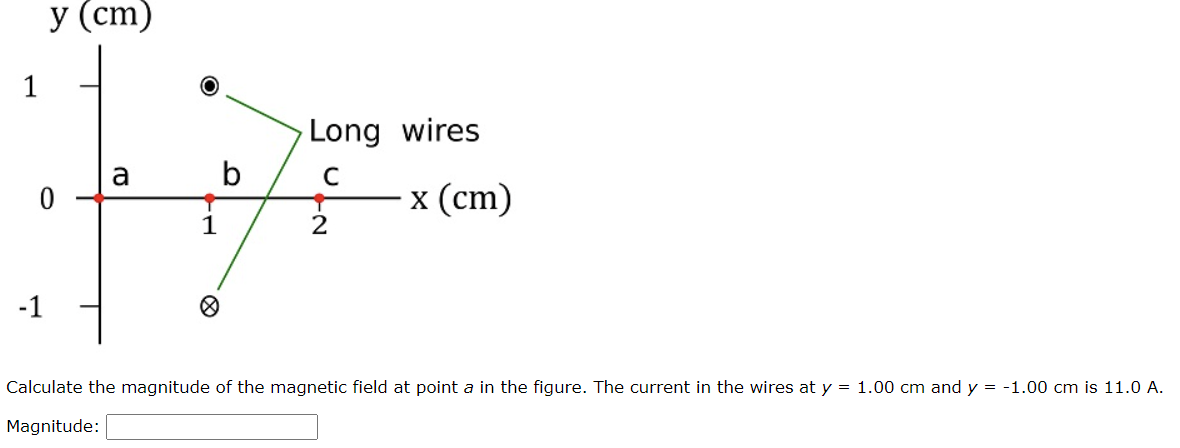

Calculate the magnitude of the magnetic field at point a in the figure. The current in the wires at y = 1.00 cm and y = −1.00 cm is 11.0 A. Magnitude:

Calculate the magnitude of the magnetic field at point a in the figure. The current in the wires at y = 1.00 cm and y = −1.00 cm is 11.0 A. Magnitude:

Image text
Calculate the magnitude of the magnetic field at point a in the figure. The current in the wires at y = 1.00 c m and y = − 1.00 c m is 11.0 A . Magnitude: ◻
