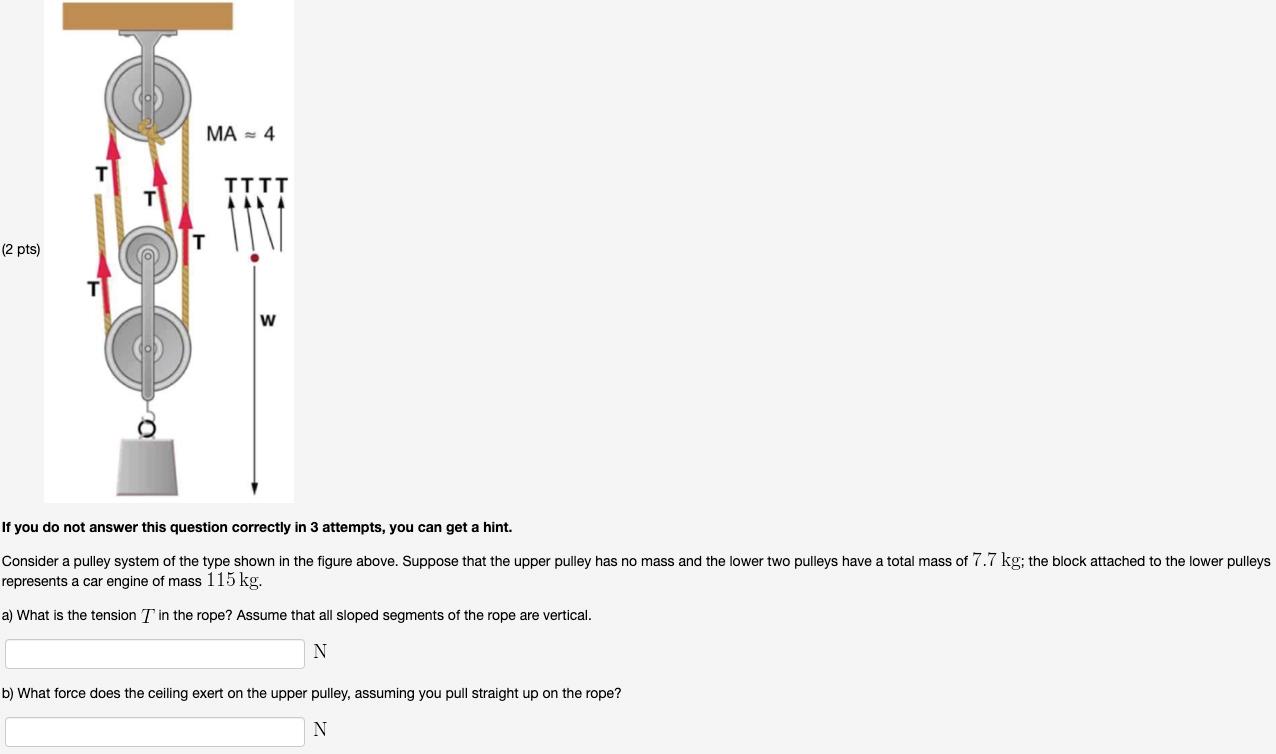

Consider a pulley system of the type shown in the figure above. Suppose that the upper pulley has no mass and the lower two pulleys have a total mass of 7.7 kg; the block attached to the lower pulleys represents a car engine of mass 115 kg. a) What is the tension T in the rope? Assume that all sloped segments of the rope are vertical. N b) What force does the ceiling exert on the upper pulley, assuming you pull straight up on the rope? N If you do not answer this question correctly in 3 attempts, you can get a hint.

Consider a pulley system of the type shown in the figure above. Suppose that the upper pulley has no mass and the lower two pulleys have a total mass of 7.7 kg; the block attached to the lower pulleys represents a car engine of mass 115 kg. a) What is the tension T in the rope? Assume that all sloped segments of the rope are vertical. N b) What force does the ceiling exert on the upper pulley, assuming you pull straight up on the rope? N If you do not answer this question correctly in 3 attempts, you can get a hint.

Image text
If you do not answer this question correctly in 3 attempts, you can get a hint. Consider a pulley system of the type shown in the figure above. Suppose that the upper pulley has no mass and the lower two pulleys have a total mass of 7.7 k g ; the block attached to the lower pulleys represents a car engine of mass 115 k g . a) What is the tension T in the rope? Assume that all sloped segments of the rope are vertical. ◻ N b) What force does the ceiling exert on the upper pulley, assuming you pull straight up on the rope? ◻ N
