Consider the 3 figures below A, B and C. (a) In Fig. (A). The current I through a wire is up, and the force F→ is left. What direction is the magnetic field B→ ? (b) Fig. (B). What is the direction of the velocity v→ of a positive charge here? (c) Fig. (C). A negative charge travels right, and B→ is into page. What direction is the Force F→ ? (a) (b) (c)

Consider the 3 figures below A, B and C. (a) In Fig. (A). The current I through a wire is up, and the force F→ is left. What direction is the magnetic field B→ ? (b) Fig. (B). What is the direction of the velocity v→ of a positive charge here? (c) Fig. (C). A negative charge travels right, and B→ is into page. What direction is the Force F→ ? (a) (b) (c)

Image text

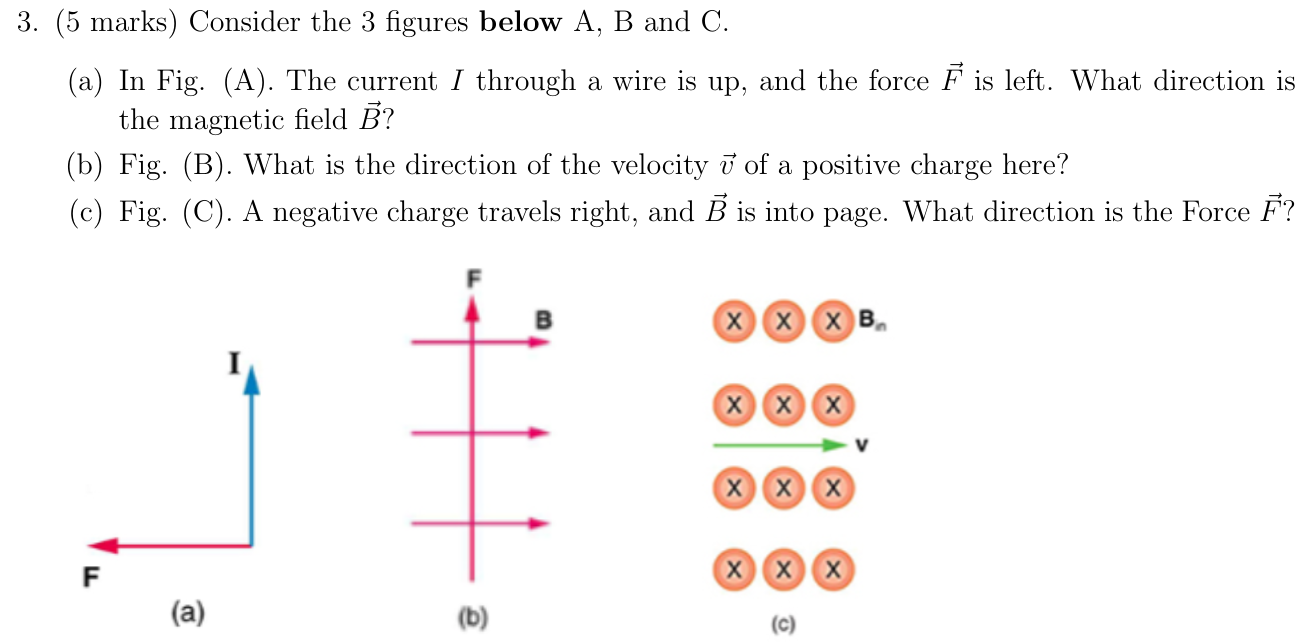

  1. ( 5 marks) Consider the 3 figures below A, B and C. (a) In Fig. (A). The current I through a wire is up, and the force F is left. What direction is the magnetic field B ? (b) Fig. (B). What is the direction of the velocity v of a positive charge here? (c) Fig. (C). A negative charge travels right, and B is into page. What direction is the Force F ? (a) (b) (c)
