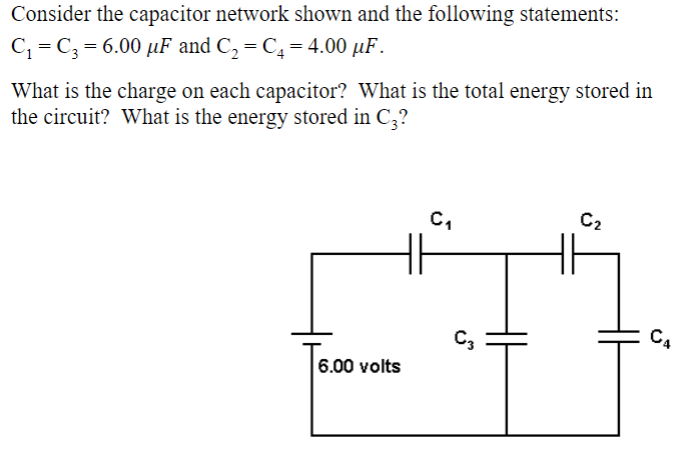

Consider the capacitor network shown and the following statements: C1 = C3 = 6.00 μF and C2 = C4 = 4.00 μF. What is the charge on each capacitor? What is the total energy stored in the circuit? What is the energy stored in C3?

Consider the capacitor network shown and the following statements: C1 = C3 = 6.00 μF and C2 = C4 = 4.00 μF. What is the charge on each capacitor? What is the total energy stored in the circuit? What is the energy stored in C3?

Image text
Consider the capacitor network shown and the following statements: C 1 = C 3 = 6.00 μ F and C 2 = C 4 = 4.00 μ F .
What is the charge on each capacitor? What is the total energy stored in the circuit? What is the energy stored in C 3 ?

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

Consider the circuit shown in the diagram below. The potential difference across the points a and b is ΔV = 120.0 V and the capacitors have the following values: C1 = 11.0 μF, C2 = 2.00 μF, C3 = 9.00 μF, and C4 = 18.0 μF. Initially the capacitors are all uncharged. (a) What is the total charge that has to flow through meter A for the capacitors to go from the initial uncharged state to the final state when they are fully charged? mC (b) What is the charge on each fully charged capacitor? Q1 = mc Q2 = mc Q3 = mc Q4 = mc
Solution
3 0

Consider the circuit shown in the diagram below. The potential difference across the points a and b is ΔV = 120.0 V and the capacitors have the following values: C1 = 12.0 μF, C2 = 5.00 μF, C3 = 2.00 μF, and C4 = 10.0 μF. Initially the capacitors are all uncharged. (a) What is the total charge that has to flow through meter A for the capacitors to go from the initial uncharged state to the final state when they are fully charged? mC (b) What is the charge on each fully charged capacitor? Q1 = mC Q2 = mC Q3 = mC Q4 = mC
Solution
3 0

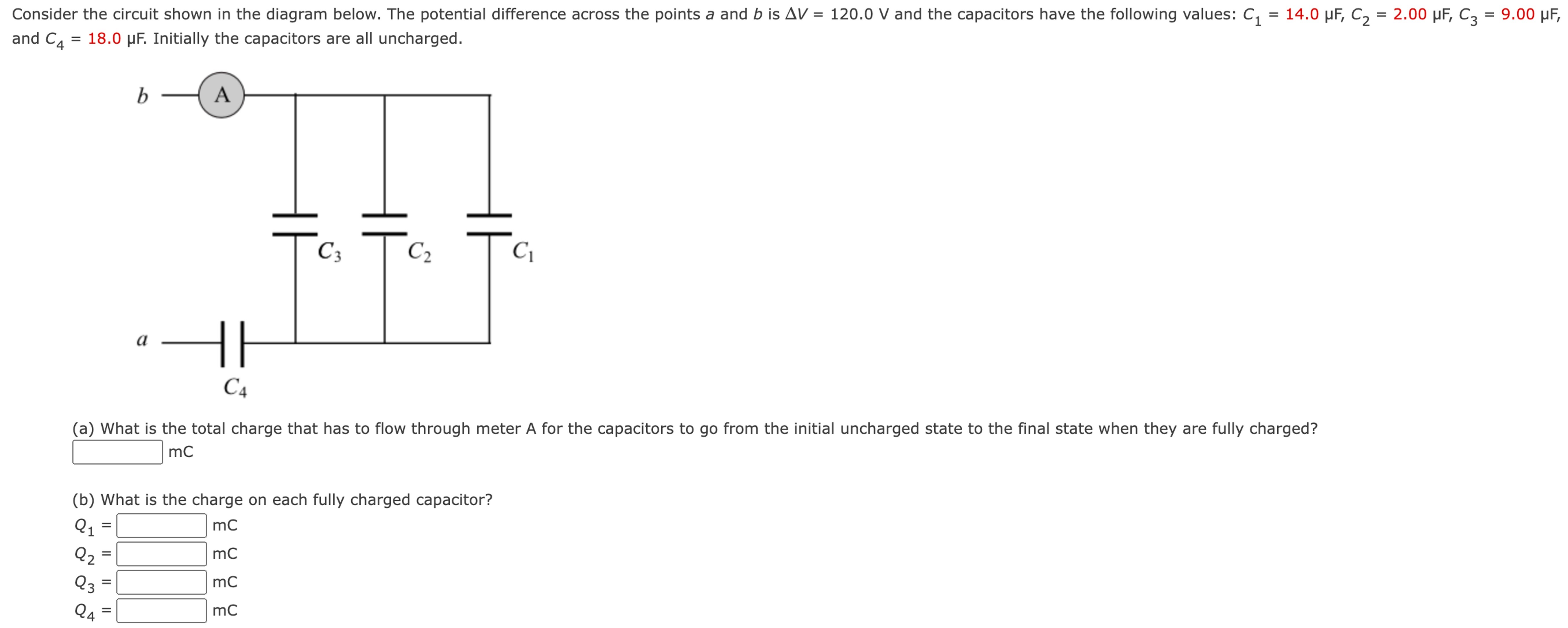

Consider the circuit shown in the diagram below. The potential difference across the points a and b is ΔV = 120.0 V and the capacitors have the following values: C1 = 14.0 μF, C2 = 2.00 μF, C3 = 9.00 μF, and C4 = 18.0 μF. Initially the capacitors are all uncharged. mC (b) What is the charge on each fully charged capacitor? Q1 = mc Q2 = mc Q3 = mc Q4 = mc
