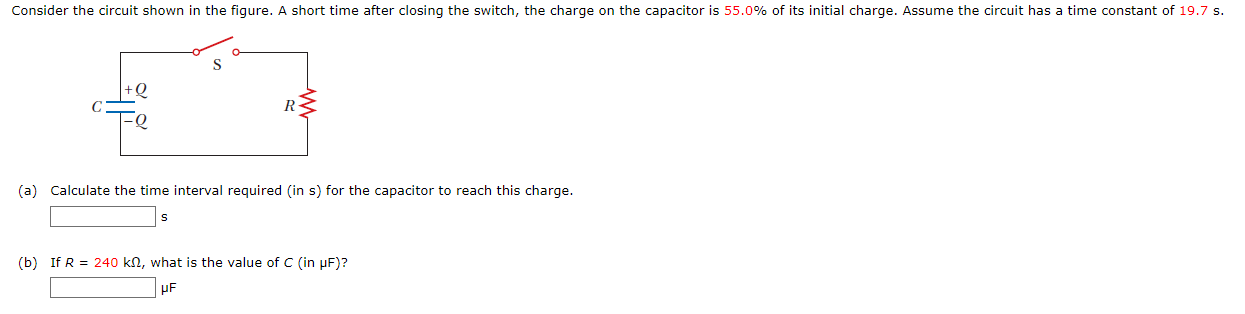

Consider the circuit shown in the figure. A short time after closing the switch, the charge on the capacitor is 55.0% of its initial charge. Assume the circuit has a time constant of 19.7 s. (a) Calculate the time interval required (in s) for the capacitor to reach this charge. s (b) If R = 240 kΩ, what is the value of C (in μF)? μF

Consider the circuit shown in the figure. A short time after closing the switch, the charge on the capacitor is 55.0% of its initial charge. Assume the circuit has a time constant of 19.7 s. (a) Calculate the time interval required (in s) for the capacitor to reach this charge. s (b) If R = 240 kΩ, what is the value of C (in μF)? μF

Image text
Consider the circuit shown in the figure. A short time after closing the switch, the charge on the capacitor is 55.0 % of its initial charge. Assume the circuit has a time constant of 19.7 s. (a) Calculate the time interval required (in s) for the capacitor to reach this charge. ◻ s (b) If R = 240 k Ω , what is the value of C (in μ F )? ◻ μ F

Detailed Answer

3 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (3)
  • Correct answers (3)
  • Complete solution (3)
  • Step-by-step solution (3)
  • Fully explained (3)

Similar/Related Questions

An electrical engineer designed an RL circuit similar to the one shown in the figure, with ε = 6.00 V, L = 2.00 mH, and R = 7.80 Ω (a) What is the inductive time constant of the circuit (in ms)? ms (b) Calculate the current in the circuit (in A) 250 μs after the switch is closed. A (c) What is the value of the final steady-state current (in A)? A (d) After what time interval (in ms ) does the current reach 80.0% of its maximum value? ms

Solution
0 0

Radiotherapy devices often utilize linear particle accelerators that require a high voltage pulse. A Marx generator is a circuit that allows the input voltage to be multiplied and delivered to a load i a short period of time. In the circuit shown in the figure, a fixed voltage source is applied between points a and b, and the capacitors are charged in parallel with all four switches open. (a) What is the final charge (in mC) on each of the capacitors when the voltage source is applied across points a and b and all four 5 witches are open? Q1 = mc Q2 = mc Q3 = mc (b) How long does it take for each of the capacitors to reach 99.0% of their maximum charge? t1 = ms t2 = ms t3 = ms (d) What is the initial voltage (in V) across points c and d immediately after all four switches are closed? (e) What is the time interval (in ms) required for the current in the circuit to reach 20.0% of its initial value after all four switches are closed? ms
Solution
0 0

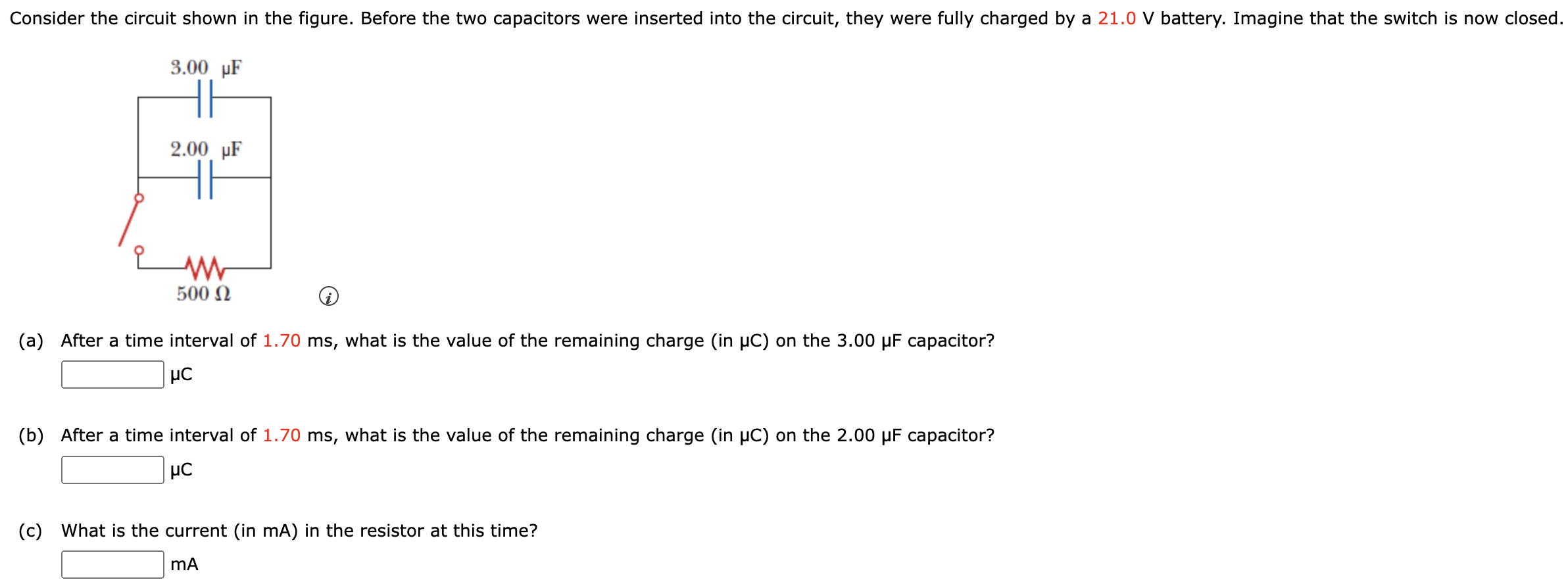

Consider the circuit shown in the figure. Before the two capacitors were inserted into the circuit, they were fully charged by a 21.0 V battery. Imagine that the switch is now closed. (a) After a time interval of 1.70 ms, what is the value of the remaining charge (in μC) on the 3.00 μF capacitor? μC (b) After a time interval of 1.70 ms, what is the value of the remaining charge (in μC) on the 2.00 μF capacitor? μC (c) What is the current (in mA) in the resistor at this time? mA
