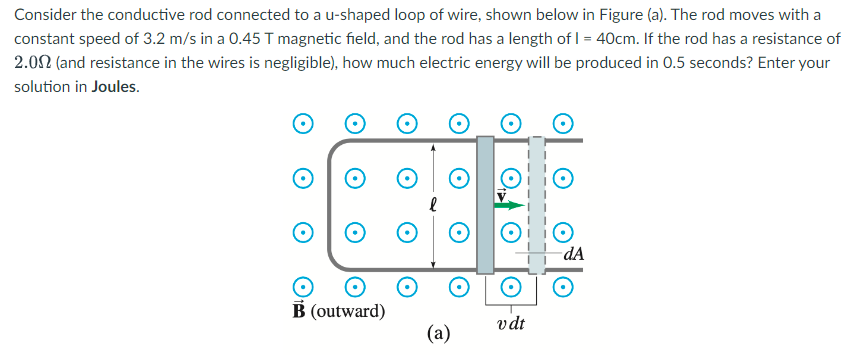

Consider the conductive rod connected to a u-shaped loop of wire, shown below in Figure (a). The rod moves with a constant speed of 3.2 m/s in a 0.45 T magnetic field, and the rod has a length of I = 40 cm. If the rod has a resistance of 2.0 Ω (and resistance in the wires is negligible), how much electric energy will be produced in 0.5 seconds? Enter your solution in Joules.

Consider the conductive rod connected to a u-shaped loop of wire, shown below in Figure (a). The rod moves with a constant speed of 3.2 m/s in a 0.45 T magnetic field, and the rod has a length of I = 40 cm. If the rod has a resistance of 2.0 Ω (and resistance in the wires is negligible), how much electric energy will be produced in 0.5 seconds? Enter your solution in Joules.

Image text
Consider the conductive rod connected to a u-shaped loop of wire, shown below in Figure (a). The rod moves with a constant speed of 3.2 m / s in a 0.45 T magnetic field, and the rod has a length of I = 40 c m . If the rod has a resistance of 2.0 Ω (and resistance in the wires is negligible), how much electric energy will be produced in 0.5 seconds? Enter your solution in Joules. (a)

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

a. A conducting bar is bent into a U-shape as shown below, with a sliding conductor placed across it. The sliding conductor moves at a constant velocity v→ = 100 ms in the presence of a time-varying magnetic field, B→ = a^z0.05 sin⁡(1000πt) T. If d = 0.5 m, determine the total emf developed in the loop at t = 3.25 ms. In what direction would current be at this time? Answer: Vemf = +19.8 V, current is CCW b. A square loop of wire is 25 cm on each side and has a resistance of 125 Ω/m. The loop lies in the z = 0 plane with its corners at (0, 0, 0), (0.25, 0, 0), (0.25, 0.25, 0), and (0, 0.25, 0) at t = 0. The loop is moving with velocity vy = 50 m/s in a B-field given by B→ = a^z8 cos⁡(1.5×108t − 0.5x) μT. Determine a function of time which expresses the ohmic power being delivered to the loop and then evaluate the expression at t = 5.00145281 ms. Answer: 20.9 W

Solution
0 0

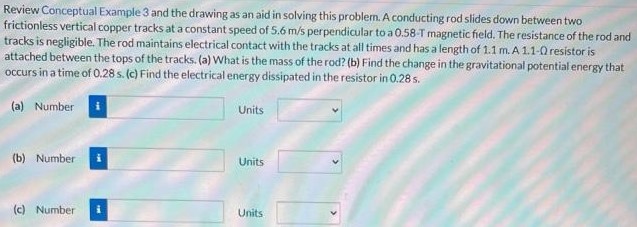

Review Conceptual Example 3 and the drawing as an aid in solving this problem. A conducting rod slides down between two frictionless vertical copper tracks at a constant speed of 5.6 m/s perpendicular to a 0.58−T magnetic field. The resistance of the rod and tracks is negligible. The rod maintains electrical contact with the tracks at all times and has a length of 1.1 m. A 1.1−Ω resistor is attached between the tops of the tracks. (a) What is the mass of the rod? (b) Find the change in the gravitational potential energy that occurs in a time of 0.28 s. (c) Find the electrical energy dissipated in the resistor in 0.28 s. (a) Number Units (b) Number Units (c) Number Units
