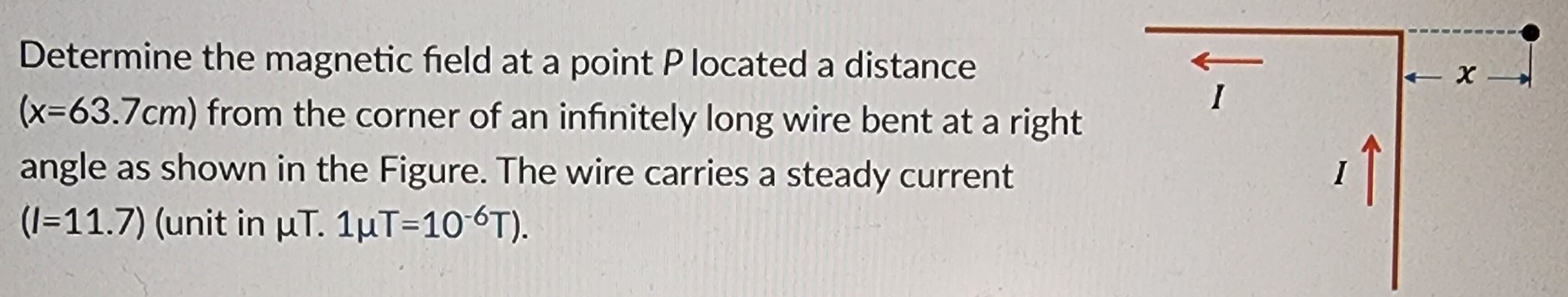

Determine the magnetic field at a point P located a distance (x = 63.7 cm) from the corner of an infinitely long wire bent at a right angle as shown in the Figure. The wire carries a steady current (I = 11.7) (unit in μT. 1 μT = 10−6 T).

Determine the magnetic field at a point P located a distance (x = 63.7 cm) from the corner of an infinitely long wire bent at a right angle as shown in the Figure. The wire carries a steady current (I = 11.7) (unit in μT. 1 μT = 10−6 T).

Image text
Determine the magnetic field at a point P located a distance ( x = 63.7 c m ) from the corner of an infinitely long wire bent at a right angle as shown in the Figure. The wire carries a steady current ( I = 11.7 ) (unit in μ T .1 μ T = 10 − 6 T ).
