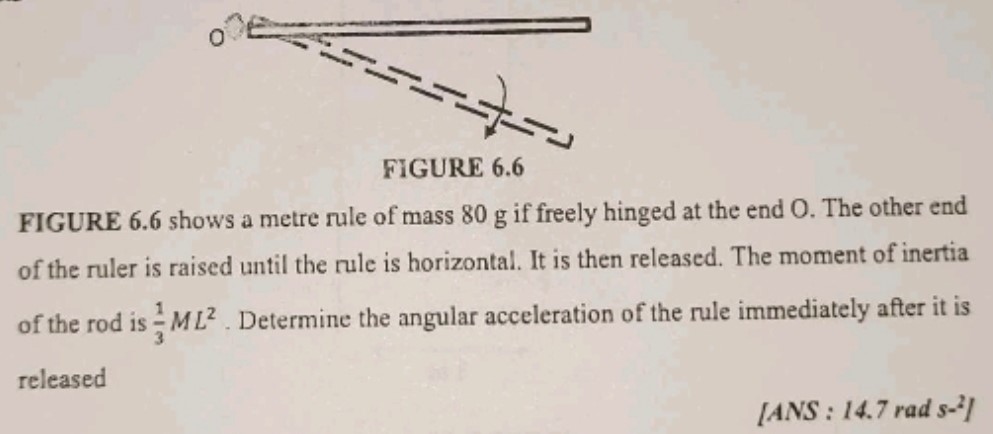

FIGURE 6.6 shows a metre rule of mass 80 g if freely hinged at the end O. The other end of the ruler is raised until the rule is horizontal. It is then released. The moment of inertia of the rod is 13 ML2. Determine the angular acceleration of the rule immediately after it is released [ANS:14.7 rads-2]

FIGURE 6.6 shows a metre rule of mass 80 g if freely hinged at the end O. The other end of the ruler is raised until the rule is horizontal. It is then released. The moment of inertia of the rod is 13 ML2. Determine the angular acceleration of the rule immediately after it is released [ANS:14.7 rads-2]

Image text
FIGURE 6.6 FIGURE 6.6 shows a metre rule of mass 80 g if freely hinged at the end O . The other end of the ruler is raised until the rule is horizontal. It is then released. The moment of inertia of the rod is 1 3 M L 2 . Determine the angular acceleration of the rule immediately after it is released [ A N S : 14.7 r a d s 2 ]

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

The truck with a ladder plotted in Fig. 5 starts from rest (and accelerates to the left) with an acceleration of 7 m/s2. The ladder of mass m = 10 kg, which is the rigid body of interest in this problem, can be modeled as a uniform slender rod that is hinged at point A and supported at point B. As a consequence, the center of mass G of the ladder is located at the midpoint of the rod. Any friction in this problem is supposed to be small enough to be neglected. a) Determine the minimum linear acceleration amin of the truck such that the ladder loses contact at point B, i. e. the normal force NB at B vanishes, and starts to rotate about point A. Do so by determining the sum of the moments about point A, and verify that for the given acceleration of the truck, the ladder will in fact lose contact at point B. b) Determine the mass moment of inertia I¯ of the ladder associated with its center of mass G. c) Use the result found in Part b) and employ the concept of relative acceleration expressed in terms of a normal-tangential coordinate system to determine the initial angular acceleration vector α of the ladder. Figure 5: A truck with a ladder accelerating from rest to the left and measurements.
Solution
0 0

A ballistic (m = 500 g) is traveling with a speed v0 = 5 m/s directly towards the middle of a thin rod⁡(M = 2 kg, L = 2 m), as shown below. The ballistic collides with and sticks to the rod, causing it to swing about a hinge at an angle ϕ, as shown below. The moment of inertia of a rod rotating about one of its ends is Irod = 13 ML2. Part (a) Which of the following quantities are conserved during the collision? (4 points) (a) Mechanical Energy (b) Linear Momentum (c) Angular Momentum (d) Net Force Part (b) Find the angular speed of the ballistic-rod system after the collision. (8 points) Part (c) Determine the maximum angle to which the ballistic and rod swing after the collision. (8 points) Part (d) If you wanted the ballistic and rod to swing higher, should you aim the ballistic higher or lower? Defend your reasoning with a conceptual argument. (5 points)
Solution
0 0

Ball a, of mass ma, is connected to ball b, of mass mb, by a massless rod of length L. (Figure 1 )The two vertical dashed lines in the figure, one through each ball, represent two different axes of rotation, axes a and b. These axes are parallel to each other and perpendicular to the rod. The moment of inertia of the two-mass system about axis a is Ia, and the moment of inertia of the system about axis b is Ib. It is observed that the ratio of Ia to Ib is equal to 3: Ia Ib = 3 Assume that both balls are pointlike; that is, neither has any moment of inertia about its own center of mass. Figure 1 of 1 Find the ratio of the masses of the two balls. Express your answer numerically. View Available Hint(s) ma mb = Find da, the distance from ball a to the system's center of mass. Express your answer in terms of L, the length of the rod. View Available Hint(s) da =Ball a, of mass ma, is connected to ball b, of mass mb, by a massless rod of length L. (Figure 1 )The two vertical dashed lines in the figure, one through each ball, represent two different axes of rotation, axes a and b. These axes are parallel to each other and perpendicular to the rod. The moment of inertia of the two-mass system about axis a is Ia, and the moment of inertia of the system about axis b is Ib. It is observed that the ratio of Ia to Ib is equal to 3: Ia Ib = 3 Assume that both balls are pointlike; that is, neither has any moment of inertia about its own center of mass. Figure 1 of 1 Find the ratio of the masses of the two balls. Express your answer numerically. View Available Hint(s) ma mb = Find da, the distance from ball a to the system's center of mass. Express your answer in terms of L, the length of the rod. View Available Hint(s) da =Ball a, of mass ma, is connected to ball b, of mass mb, by a massless rod of length L. (Figure 1 )The two vertical dashed lines in the figure, one through each ball, represent two different axes of rotation, axes a and b. These axes are parallel to each other and perpendicular to the rod. The moment of inertia of the two-mass system about axis a is Ia, and the moment of inertia of the system about axis b is Ib. It is observed that the ratio of Ia to Ib is equal to 3: Ia Ib = 3 Assume that both balls are pointlike; that is, neither has any moment of inertia about its own center of mass. Figure 1 of 1 Find the ratio of the masses of the two balls. Express your answer numerically. View Available Hint(s) ma mb = Find da, the distance from ball a to the system's center of mass. Express your answer in terms of L, the length of the rod. View Available Hint(s) da =
