For the given Charge density (Fig. 2), determine the following: (7 Mar

Question

Notify Me Bookmark

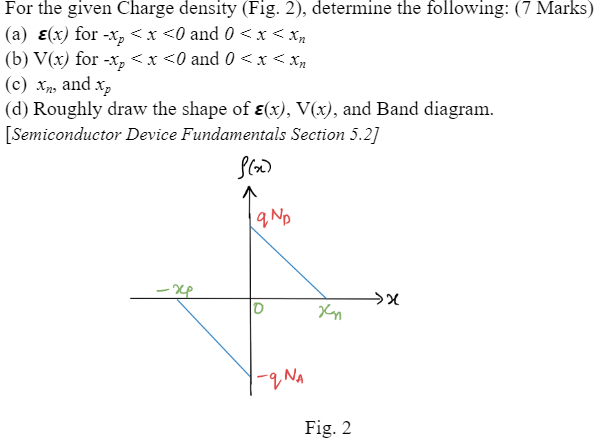

For the given Charge density (Fig. 2), determine the following: (7 Marks) (a) ε(x) for −xp < x < 0 and 0 < x < xn (b) V(x) for −xp < x < 0 and 0 < x < xn (c) xn, and xp (d) Roughly draw the shape of ε(x), V(x), and Band diagram. [Semiconductor Device Fundamentals Section 5.2] Fig. 2

For the given Charge density (Fig. 2), determine the following: (7 Marks) (a) ε(x) for −xp < x < 0 and 0 < x < xn (b) V(x) for −xp < x < 0 and 0 < x < xn (c) xn, and xp (d) Roughly draw the shape of ε(x), V(x), and Band diagram. [Semiconductor Device Fundamentals Section 5.2] Fig. 2

Image text

For the given Charge density (Fig. 2), determine the following: (7 Marks) (a)

ε (x)

for

- x_{p} < x < 0

and

0 < x < x_{n}

(b)

V (x)

for

- x_{p} < x < 0

and

0 < x < x_{n}

(c)

x_{n}

, and

x_{p}

(d) Roughly draw the shape of

ε (x), V (x)

, and Band diagram. [Semiconductor Device Fundamentals Section 5.2] Fig. 2
