In (Figure 1), R = 11.0 Ω and the battery emf is 6.30 V. With switch S2 open, switch S1 is closed. After several minutes, S1 is opened and S2 is closed. Figure 1 of 1 Part A At 2.20 ms after S1 is opened, the current has decayed to 0.200 A. Calculate the inductance of the coil. Express your answer with the appropriate units. L = Submit Request Answer Part B How long after S1 is opened will the current reach 1.00% of its original value? Express your answer with the appropriate units. t =

In (Figure 1), R = 11.0 Ω and the battery emf is 6.30 V. With switch S2 open, switch S1 is closed. After several minutes, S1 is opened and S2 is closed. Figure 1 of 1 Part A At 2.20 ms after S1 is opened, the current has decayed to 0.200 A. Calculate the inductance of the coil. Express your answer with the appropriate units. L = Submit Request Answer Part B How long after S1 is opened will the current reach 1.00% of its original value? Express your answer with the appropriate units. t =In (Figure 1), R = 11.0 Ω and the battery emf is 6.30 V. With switch S2 open, switch S1 is closed. After several minutes, S1 is opened and S2 is closed. Figure 1 of 1 Part A At 2.20 ms after S1 is opened, the current has decayed to 0.200 A. Calculate the inductance of the coil. Express your answer with the appropriate units. L = Submit Request Answer Part B How long after S1 is opened will the current reach 1.00% of its original value? Express your answer with the appropriate units. t =

Image text

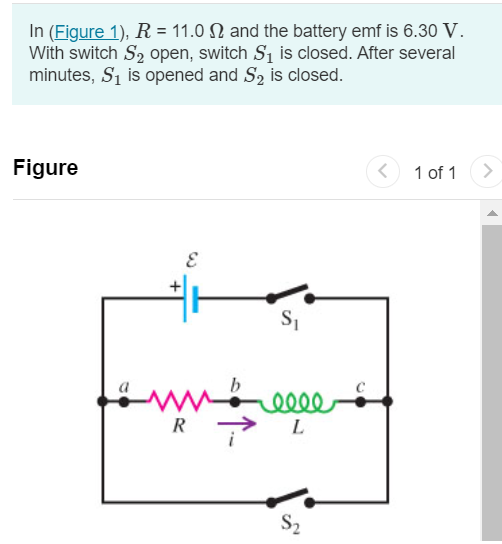

In (Figure 1), R = 11.0 Ω and the battery emf is 6.30 V . With switch S 2 open, switch S 1 is closed. After several minutes, S 1 is opened and S 2 is closed.
Figure 1 of 1
Part A

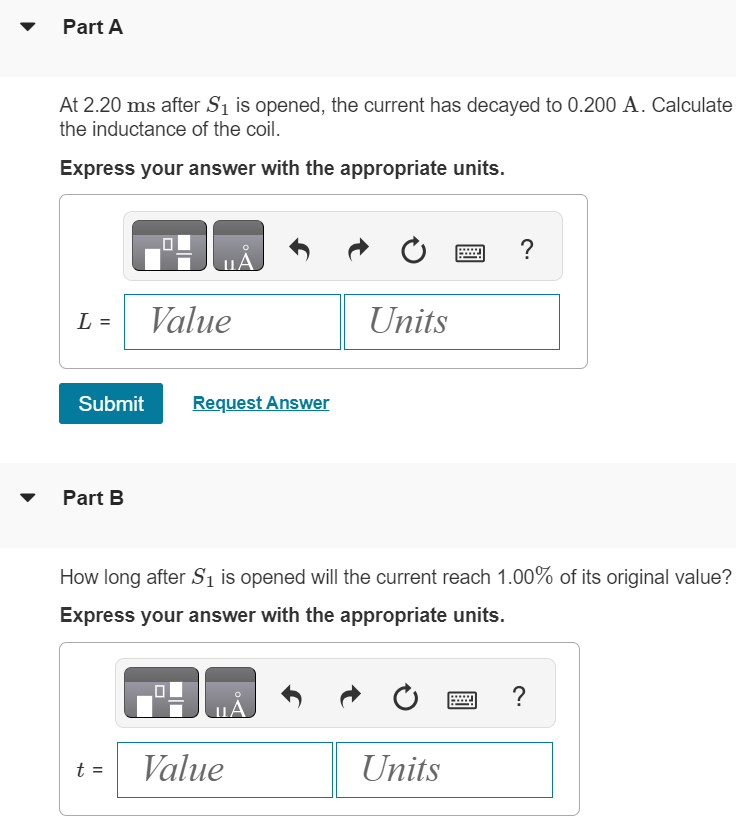

At 2.20 m s after S 1 is opened, the current has decayed to 0.200 A . Calculate the inductance of the coil.
Express your answer with the appropriate units.
L = Value Units
Value Units ? ◻ → ↻ 㽧 ◻ ◻ Submit Request Answer Part B
How long after S 1 is opened will the current reach 1.00 % of its original value? Express your answer with the appropriate units. ◻

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

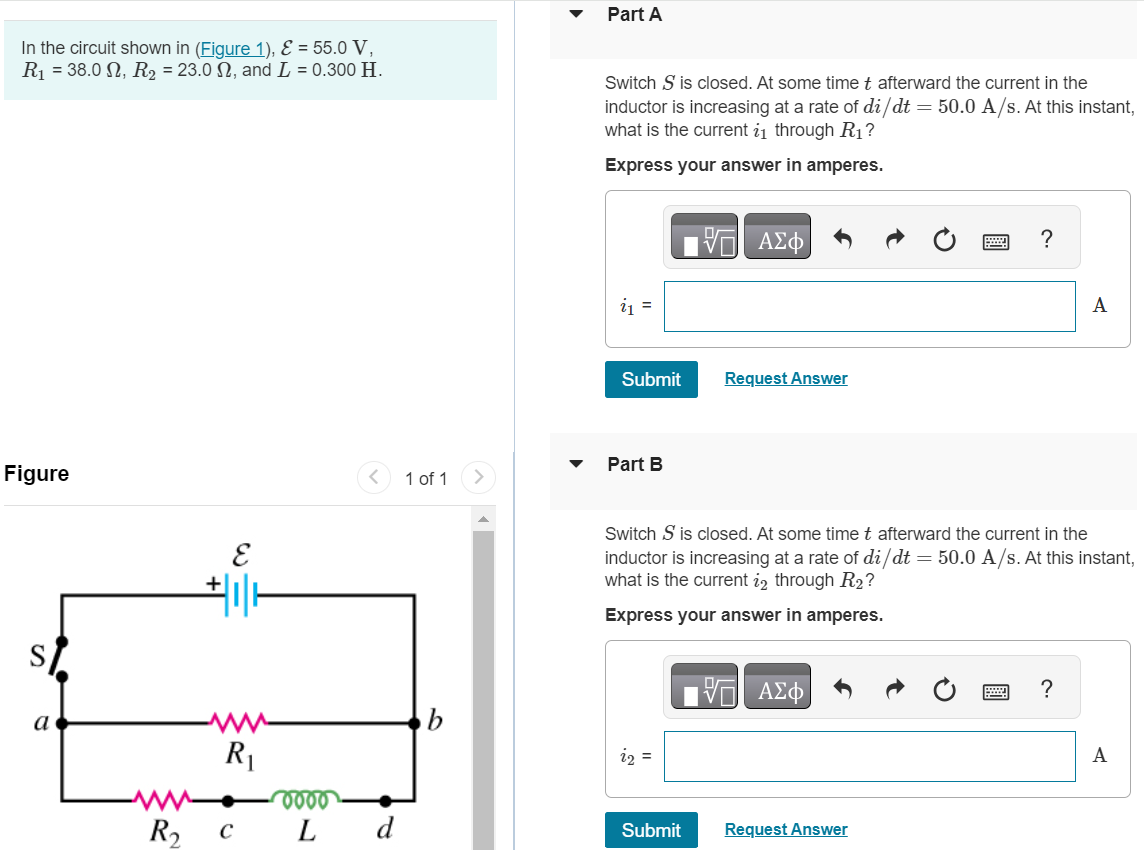

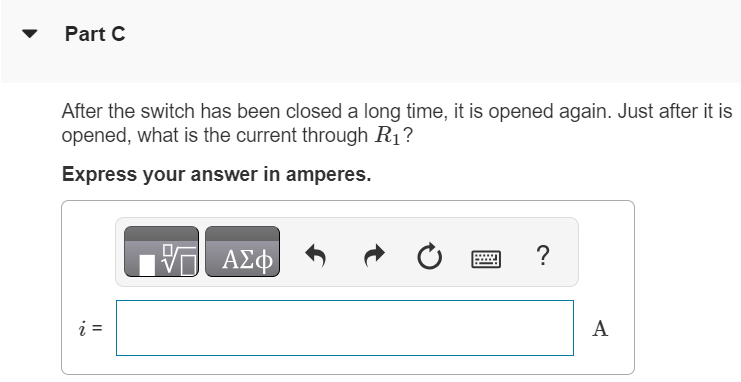

In the circuit shown in (Figure 1), E = 55.0 V, R1 = 38.0 Ω, R2 = 23.0 Ω, and L = 0.300 H. Figure 1 of 1 Part A Switch S is closed. At some time t afterward the current in the inductor is increasing at a rate of di/dt = 50.0 A/s. At this instant, what is the current i1 through R1 ? Express your answer in amperes. Submit Request Answer Part B Switch S is closed. At some time t afterward the current in the inductor is increasing at a rate of di/dt = 50.0 A/s. At this instant, what is the current i2 through R2 ? Express your answer in amperes. Submit Part C After the switch has been closed a long time, it is opened again. Just after it is opened, what is the current through R1 ? Express your answer in amperes. i = AIn the circuit shown in (Figure 1), E = 55.0 V, R1 = 38.0 Ω, R2 = 23.0 Ω, and L = 0.300 H. Figure 1 of 1 Part A Switch S is closed. At some time t afterward the current in the inductor is increasing at a rate of di/dt = 50.0 A/s. At this instant, what is the current i1 through R1 ? Express your answer in amperes. Submit Request Answer Part B Switch S is closed. At some time t afterward the current in the inductor is increasing at a rate of di/dt = 50.0 A/s. At this instant, what is the current i2 through R2 ? Express your answer in amperes. Submit Part C After the switch has been closed a long time, it is opened again. Just after it is opened, what is the current through R1 ? Express your answer in amperes. i = A
