In (Figure 1), R1 = 3.00 Ω, R2 = 6.00 Ω, and R3 = 3.00 Ω. The battery has negligible internal resistance. The current I2 through R2 is 3.00 A. Part A What is the current I1 through R1 ? Express your answer with the appropriate units. Submit Request Answer Part B What is the current I3 through R3 ? Express your answer with the appropriate units. I3 = Value Units Submit Request Answer Part C What is the emf of the battery? Express your answer with the appropriate units.

In (Figure 1), R1 = 3.00 Ω, R2 = 6.00 Ω, and R3 = 3.00 Ω. The battery has negligible internal resistance. The current I2 through R2 is 3.00 A. Part A What is the current I1 through R1 ? Express your answer with the appropriate units. Submit Request Answer Part B What is the current I3 through R3 ? Express your answer with the appropriate units. I3 = Value Units Submit Request Answer Part C What is the emf of the battery? Express your answer with the appropriate units. In (Figure 1), R1 = 3.00 Ω, R2 = 6.00 Ω, and R3 = 3.00 Ω. The battery has negligible internal resistance. The current I2 through R2 is 3.00 A. Part A What is the current I1 through R1 ? Express your answer with the appropriate units. Submit Request Answer Part B What is the current I3 through R3 ? Express your answer with the appropriate units. I3 = Value Units Submit Request Answer Part C What is the emf of the battery? Express your answer with the appropriate units.

Image text
In (Figure 1), R 1 = 3.00 Ω , R 2 = 6.00 Ω , and R 3 = 3.00 Ω . The battery has negligible internal resistance. The current I 2 through R 2 is 3.00 A . Part A What is the current I 1 through R 1 ? Express your answer with the appropriate units. ◻ Submit Request Answer Part B
What is the current I 3 through R 3 ? Express your answer with the appropriate units.
I 3 =
Value Units Submit Request Answer
Part C
What is the emf of the battery? Express your answer with the appropriate units.

Detailed Answer

3 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (3)
  • Correct answers (3)
  • Complete solution (3)
  • Step-by-step solution (3)
  • Fully explained (3)

Similar/Related Questions

A long, thin solenoid has 900 turns per meter and radius 2.50 cm. The current in the solenoid is increasing at a uniform rate of 42.0 A/s. Part A What is the magnitude of the induced electric field at a point near the center of the solenoid? Express your answer with the appropriate units. E = Value Units Submit Request Answer Part B What is the magnitude of the induced electric field at a point 0.500 cm from the axis of the solenoid? Express your answer with the appropriate units. Submit Request Answer Part C What is the magnitude of the induced electric field at a point 1.00 cm from the axis of the solenoid? Express your answer with the appropriate units.A long, thin solenoid has 900 turns per meter and radius 2.50 cm. The current in the solenoid is increasing at a uniform rate of 42.0 A/s. Part A What is the magnitude of the induced electric field at a point near the center of the solenoid? Express your answer with the appropriate units. E = Value Units Submit Request Answer Part B What is the magnitude of the induced electric field at a point 0.500 cm from the axis of the solenoid? Express your answer with the appropriate units. Submit Request Answer Part C What is the magnitude of the induced electric field at a point 1.00 cm from the axis of the solenoid? Express your answer with the appropriate units.
Solution
0 0

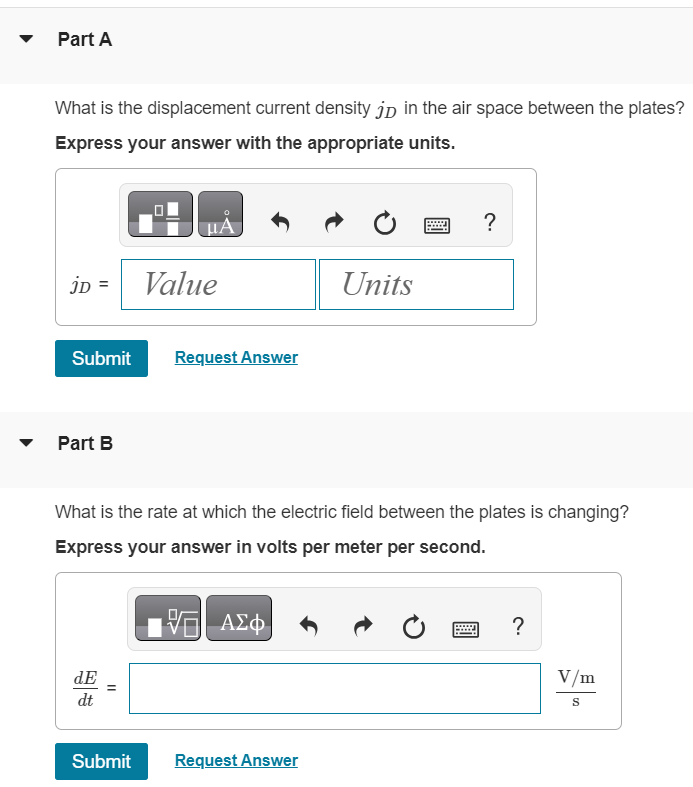

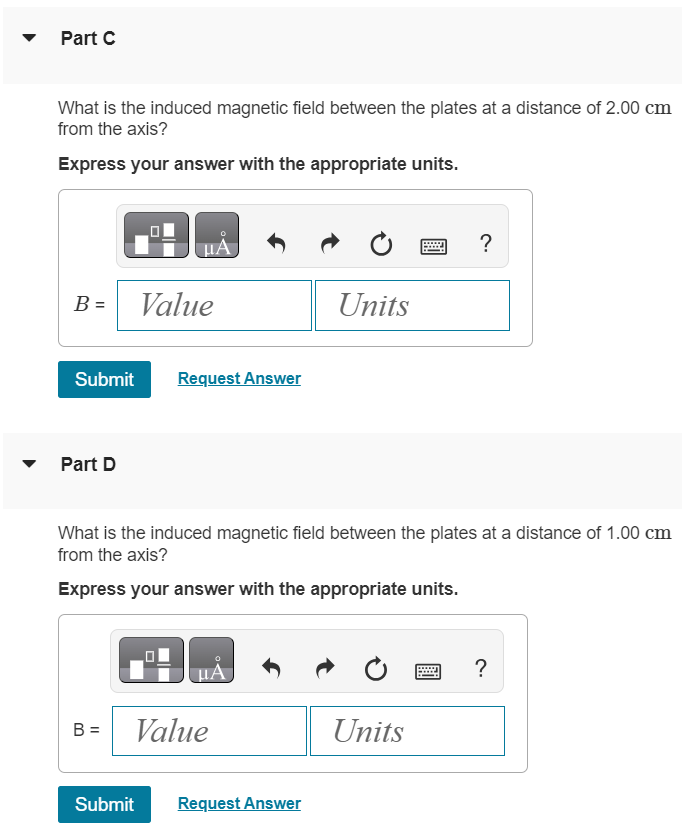

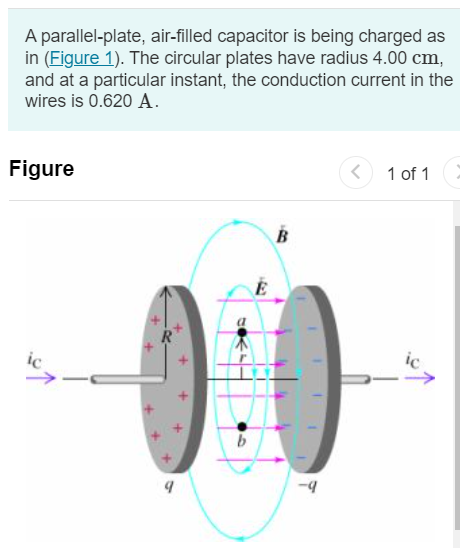

A parallel-plate, air-filled capacitor is being charged as in (Figure 1). The circular plates have radius 4.00 cm, and at a particular instant, the conduction current in the wires is 0.620 A. Figure 1 of 1 Part A What is the displacement current density jD in the air space between the plates? Express your answer with the appropriate units. Submit Request Answer Part B What is the rate at which the electric field between the plates is changing? Express your answer in volts per meter per second. dE dt V/m s Submit Request Answer Part C What is the induced magnetic field between the plates at a distance of 2.00 cm from the axis? Express your answer with the appropriate units. B = Value Units Submit Request Answer Part D What is the induced magnetic field between the plates at a distance of 1.00 cm from the axis? Express your answer with the appropriate units. B = Value Units Submit Request Answer A parallel-plate, air-filled capacitor is being charged as in (Figure 1). The circular plates have radius 4.00 cm, and at a particular instant, the conduction current in the wires is 0.620 A. Figure 1 of 1 Part A What is the displacement current density jD in the air space between the plates? Express your answer with the appropriate units. Submit Request Answer Part B What is the rate at which the electric field between the plates is changing? Express your answer in volts per meter per second. dE dt V/m s Submit Request Answer Part C What is the induced magnetic field between the plates at a distance of 2.00 cm from the axis? Express your answer with the appropriate units. B = Value Units Submit Request Answer Part D What is the induced magnetic field between the plates at a distance of 1.00 cm from the axis? Express your answer with the appropriate units. B = Value Units Submit Request Answer A parallel-plate, air-filled capacitor is being charged as in (Figure 1). The circular plates have radius 4.00 cm, and at a particular instant, the conduction current in the wires is 0.620 A. Figure 1 of 1 Part A What is the displacement current density jD in the air space between the plates? Express your answer with the appropriate units. Submit Request Answer Part B What is the rate at which the electric field between the plates is changing? Express your answer in volts per meter per second. dE dt V/m s Submit Request Answer Part C What is the induced magnetic field between the plates at a distance of 2.00 cm from the axis? Express your answer with the appropriate units. B = Value Units Submit Request Answer Part D What is the induced magnetic field between the plates at a distance of 1.00 cm from the axis? Express your answer with the appropriate units. B = Value Units Submit Request Answer
