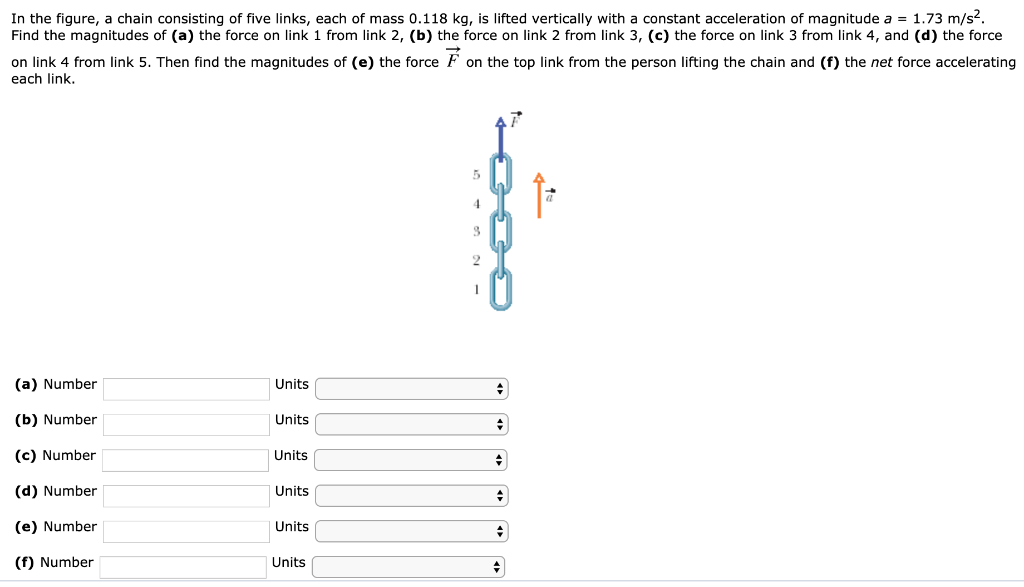

In the figure, a chain consisting of five links, each of mass 0.118 kg, is lifted vertically with a constant acceleration of magnitude a = 1.73 m/s2. Find the magnitudes of (a) the force on link 1 from link 2, (b) the force on link 2 from link 3, (c) the force on link 3 from link 4, and (d) the force on link 4 from link 5. Then find the magnitudes of (e) the force F→ on the top link from the person lifting the chain and (f) the net force accelerating each link. (a) Number Units (b) Number Units (c) Number Units (d) Number Units (e) Number Units (f) Number Units

In the figure, a chain consisting of five links, each of mass 0.118 kg, is lifted vertically with a constant acceleration of magnitude a = 1.73 m/s2. Find the magnitudes of (a) the force on link 1 from link 2, (b) the force on link 2 from link 3, (c) the force on link 3 from link 4, and (d) the force on link 4 from link 5. Then find the magnitudes of (e) the force F→ on the top link from the person lifting the chain and (f) the net force accelerating each link. (a) Number Units (b) Number Units (c) Number Units (d) Number Units (e) Number Units (f) Number Units

Image text
In the figure, a chain consisting of five links, each of mass 0.118 kg , is lifted vertically with a constant acceleration of magnitude a = 1.73 m / s 2 . Find the magnitudes of (a) the force on link 1 from link 2, (b) the force on link 2 from link 3, (c) the force on link 3 from link 4, and (d) the force on link 4 from link 5. Then find the magnitudes of (e) the force F → on the top link from the person lifting the chain and (f) the net force accelerating each link. (a) Number ◻ Units ◻ (b) Number ◻ Units ◻ (c) Number ◻ Units ◻ (d) Number ◻ Units ◻ (e) Number ◻ Units ◻ (f) Number ◻ Units ◻
