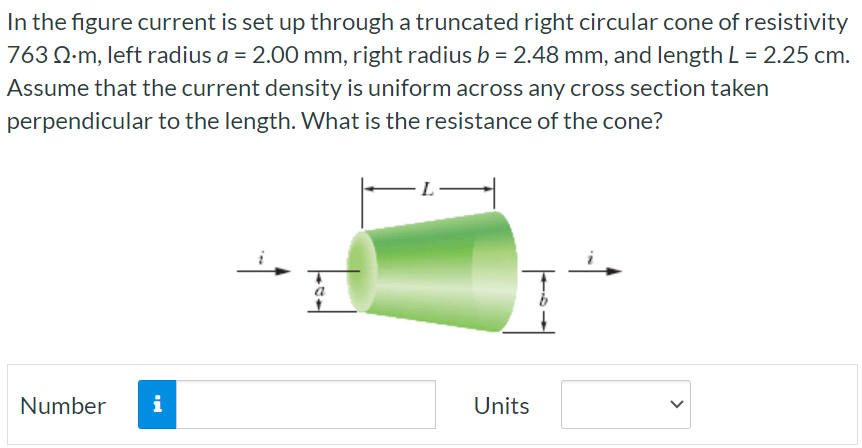

In the figure current is set up through a truncated right circular cone of resistivity 763 Ω⋅m, left radius a = 2.00 mm, right radius b = 2.48 mm, and length L = 2.25 cm. Assume that the current density is uniform across any cross section taken perpendicular to the length. What is the resistance of the cone? Number Units

In the figure current is set up through a truncated right circular cone of resistivity 763 Ω⋅m, left radius a = 2.00 mm, right radius b = 2.48 mm, and length L = 2.25 cm. Assume that the current density is uniform across any cross section taken perpendicular to the length. What is the resistance of the cone? Number Units

Image text
In the figure current is set up through a truncated right circular cone of resistivity 763 Ω ⋅ m , left radius a = 2.00 m m , right radius b = 2.48 m m , and length L = 2.25 c m . Assume that the current density is uniform across any cross section taken perpendicular to the length. What is the resistance of the cone?
Number i Units

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

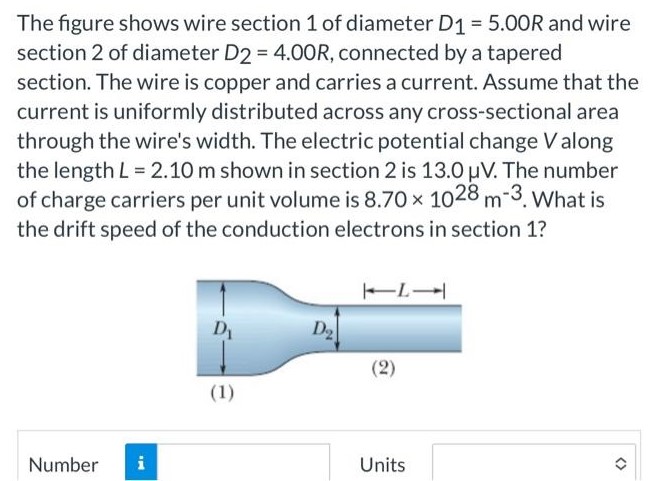

The figure shows wire section 1 of diameter D1 = 5.00R and wire section 2 of diameter D2 = 4.00R, connected by a tapered section. The wire is copper and carries a current. Assume that the current is uniformly distributed across any cross-sectional area through the wire's width. The electric potential change V along the length L = 2.10 m shown in section 2 is 13.0 μV. The number of charge carriers per unit volume is 8.70×1028 m−3. What is the drift speed of the conduction electrons in section 1? Number Units
Solution
0 0

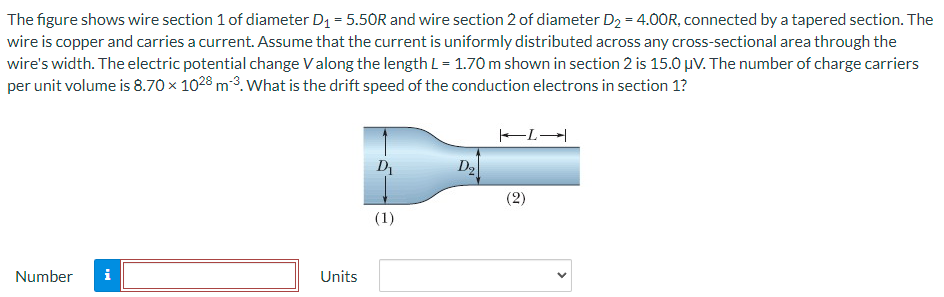

The figure shows wire section 1 of diameter D1 = 5.50R and wire section 2 of diameter D2 = 4.00R, connected by a tapered section. The wire is copper and carries a current. Assume that the current is uniformly distributed across any cross-sectional area through the wire's width. The electric potential change V along the length L = 1.70 m shown in section 2 is 15.0 μV. The number of charge carriers per unit volume is 8.70×1028 m−3. What is the drift speed of the conduction electrons in section 1? Number Units
