In the figure R1 = 94.0 Ω, R2 = R3 = 55.0 Ω, R4 = 104 Ω, and the ideal battery has emf ε = 6.00 V. (a) What is the equivalent resistance? What is i in (b) resistance 1, (c) resistance 2 , (d) resistance 3 , and (e) resistance 4? (a) Number Units (b) Number Units (c) Number Units (d) Number Units (e) Number Units

In the figure R1 = 94.0 Ω, R2 = R3 = 55.0 Ω, R4 = 104 Ω, and the ideal battery has emf ε = 6.00 V. (a) What is the equivalent resistance? What is i in (b) resistance 1, (c) resistance 2 , (d) resistance 3 , and (e) resistance 4? (a) Number Units (b) Number Units (c) Number Units (d) Number Units (e) Number Units

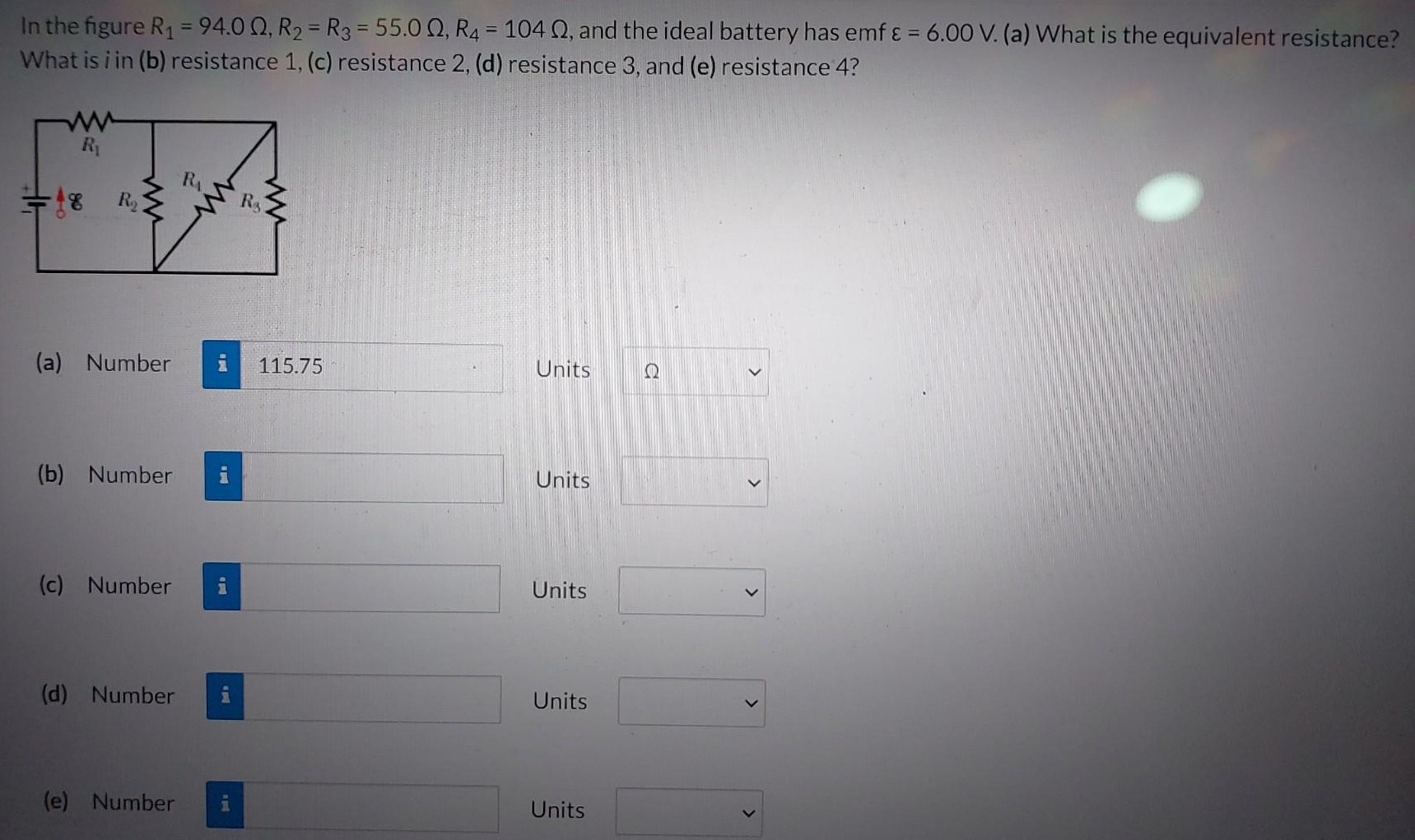

Image text
In the figure R 1 = 94.0 Ω , R 2 = R 3 = 55.0 Ω , R 4 = 104 Ω , and the ideal battery has emf ε = 6.00 V . (a) What is the equivalent resistance? What is i in (b) resistance 1, (c) resistance 2 , (d) resistance 3 , and (e) resistance 4 ? (a) Number 115.75 Units Ω (b) Number Units (c) Number Units ◻ (d) Number i Units ◻ (e) Number i Units ◻
