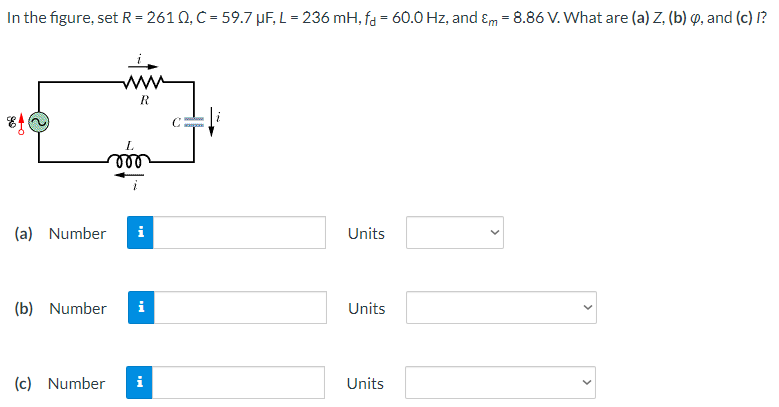

In the figure, set R = 261 Ω, C = 59.7 μF, L = 236 mH, fd = 60.0 Hz, and εm = 8.86 V. What are (a) Z, (b) φ, and (c) l? (a) Number Units (b) Number Units (c) Number Units

In the figure, set R = 261 Ω, C = 59.7 μF, L = 236 mH, fd = 60.0 Hz, and εm = 8.86 V. What are (a) Z, (b) φ, and (c) l? (a) Number Units (b) Number Units (c) Number Units

Image text
In the figure, set R = 261 Ω , C = 59.7 μ F , L = 236 mH , f d = 60.0 Hz , and ε m = 8.86 V . What are (a) Z , (b) φ , and (c) l ? (a) Number i Units ◻ (b) Number i Units ◻ (c) Number i Units ◻

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

In the figure, set R = 188 Ω, C = 74.2 μF, L = 188 mH, fd = 60.0 Hz, and εm = 7.03 V. What are (a) Z, (b) φ, and (c) I? (a) Number Units (b) Number Units (c) Number Units
Solution
0 0

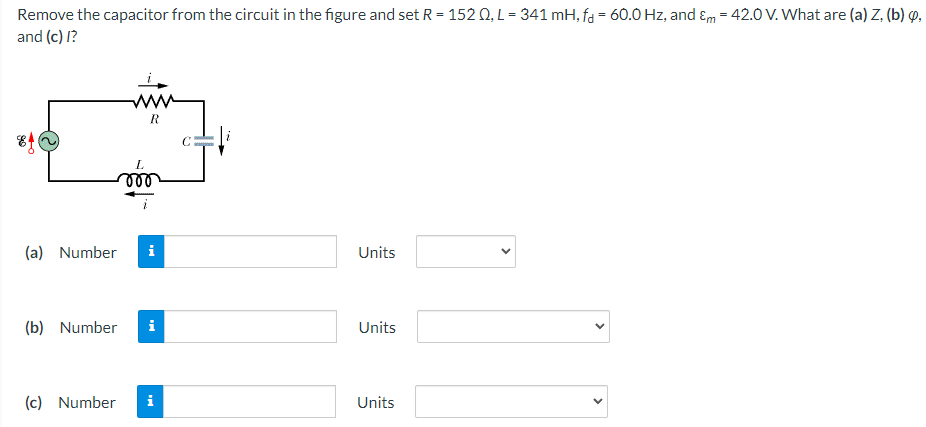

Remove the capacitor from the circuit in the figure and set R = 152 Ω, L = 341 mH, fd = 60.0 Hz, and εm = 42.0 V. What are (a) Z , (b) φ, and (c) I? (a) Number Units (b) Number Units (c) Number Units
