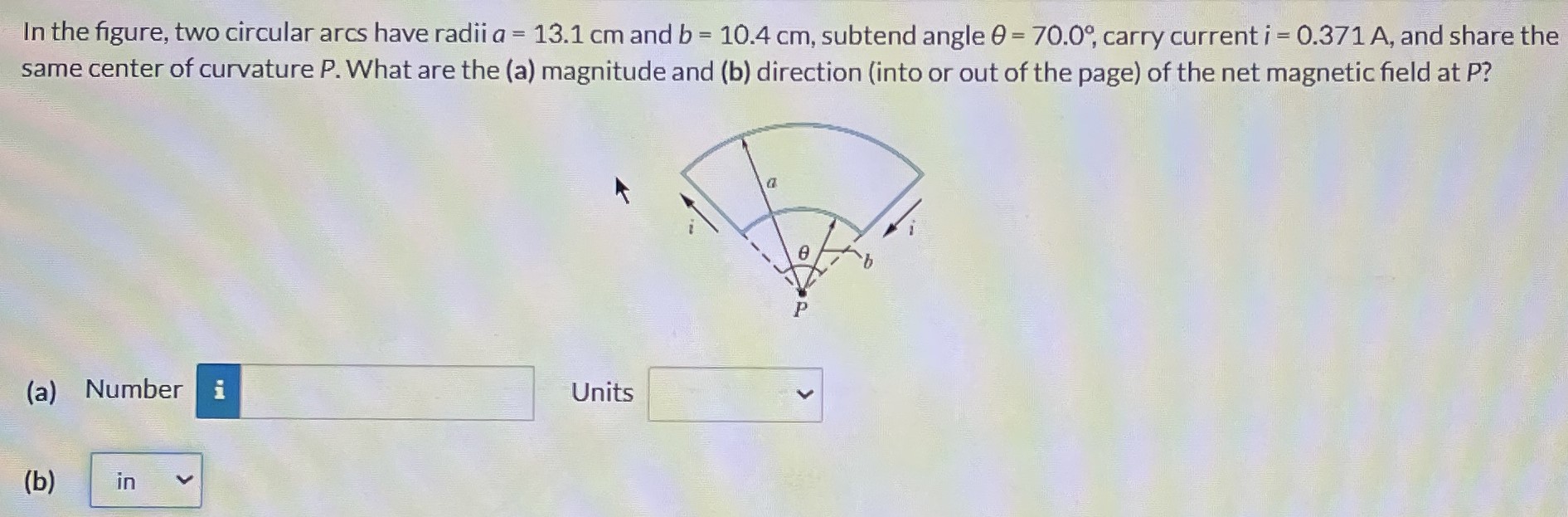

In the figure, two circular arcs have radii a = 13.1 cm and b = 10.4 cm, subtend angle θ = 70.0∘, carry current i = 0.371 A, and share the same center of curvature P. What are the (a) magnitude and (b) direction (into or out of the page) of the net magnetic field at P? (a) Number Units (b)

In the figure, two circular arcs have radii a = 13.1 cm and b = 10.4 cm, subtend angle θ = 70.0∘, carry current i = 0.371 A, and share the same center of curvature P. What are the (a) magnitude and (b) direction (into or out of the page) of the net magnetic field at P? (a) Number Units (b)

Image text
In the figure, two circular arcs have radii a = 13.1 cm and b = 10.4 cm , subtend angle θ = 70.0 ∘ , carry current i = 0.371 A , and share the same center of curvature P . What are the (a) magnitude and (b) direction (into or out of the page) of the net magnetic field at P ? (a) Number
Units ◻ (b) ◻

Detailed Answer

3 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (3)
  • Correct answers (3)
  • Complete solution (3)
  • Step-by-step solution (3)
  • Fully explained (3)

Similar/Related Questions

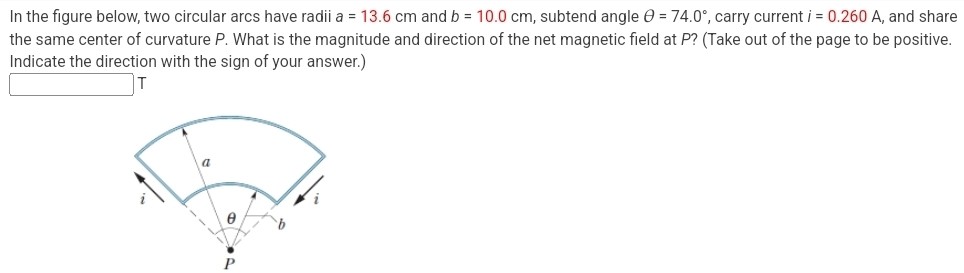

In the figure below, two circular arcs have radii a = 13.6 cm and b = 10.0 cm, subtend angle θ = 74.0∘, carry current i = 0.260 A, and share the same center of curvature P. What is the magnitude and direction of the net magnetic field at P? (Take out of the page to be positive. Indicate the direction with the sign of your answer.) T
