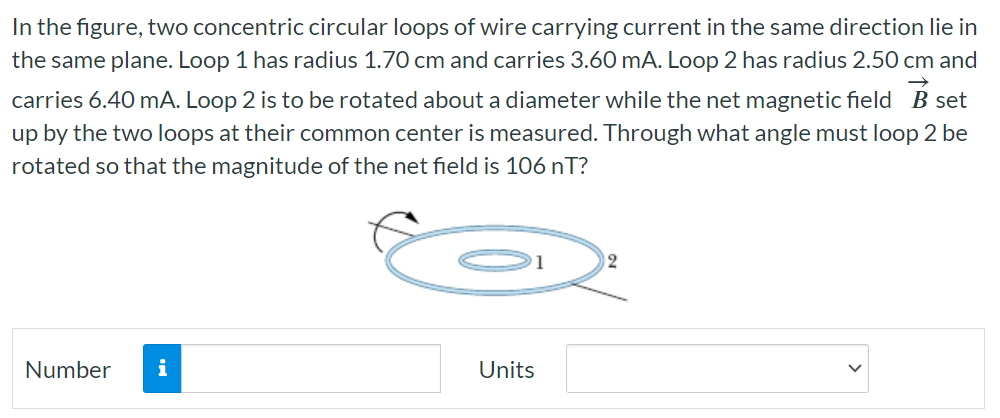

In the figure, two concentric circular loops of wire carrying current in the same direction lie in the same plane. Loop 1 has radius 1.70 cm and carries 3.60 mA. Loop 2 has radius 2.50 cm and carries 6.40 mA. Loop 2 is to be rotated about a diameter while the net magnetic field B→ set up by the two loops at their common center is measured. Through what angle must loop 2 be rotated so that the magnitude of the net field is 106 nT? Number Units

In the figure, two concentric circular loops of wire carrying current in the same direction lie in the same plane. Loop 1 has radius 1.70 cm and carries 3.60 mA. Loop 2 has radius 2.50 cm and carries 6.40 mA. Loop 2 is to be rotated about a diameter while the net magnetic field B→ set up by the two loops at their common center is measured. Through what angle must loop 2 be rotated so that the magnitude of the net field is 106 nT? Number Units

Image text
In the figure, two concentric circular loops of wire carrying current in the same direction lie in the same plane. Loop 1 has radius 1.70 c m and carries 3.60 m A . Loop 2 has radius 2.50 c m and carries 6.40 m A . Loop 2 is to be rotated about a diameter while the net magnetic field B → set up by the two loops at their common center is measured. Through what angle must loop 2 be rotated so that the magnitude of the net field is 106 n T ?
Number i Units

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

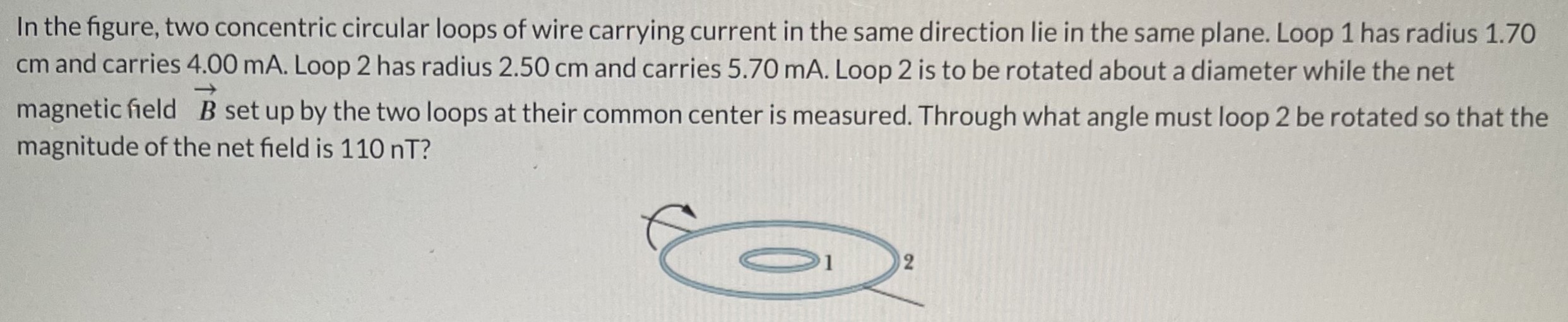

In the figure, two concentric circular loops of wire carrying current in the same direction lie in the same plane. Loop 1 has radius 1.70 cm and carries 4.00 mA. Loop 2 has radius 2.50 cm and carries 5.70 mA. Loop 2 is to be rotated about a diameter while the net magnetic field B→ set up by the two loops at their common center is measured. Through what angle must loop 2 be rotated so that the magnitude of the net field is 110 nT?
