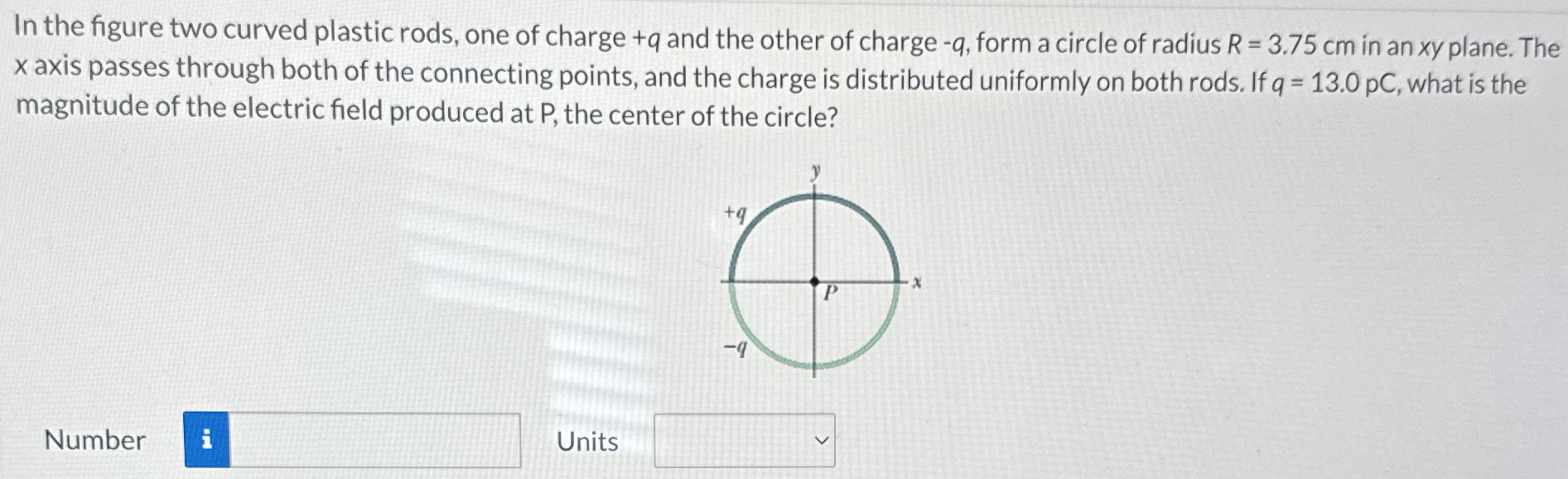

In the figure two curved plastic rods, one of charge +q and the other of charge −q, form a circle of radius R = 3.75 cm in an xy plane. The x axis passes through both of the connecting points, and the charge is distributed uniformly on both rods. If q = 13.0 pC, what is the magnitude of the electric field produced at P, the center of the circle? Number Units

In the figure two curved plastic rods, one of charge +q and the other of charge −q, form a circle of radius R = 3.75 cm in an xy plane. The x axis passes through both of the connecting points, and the charge is distributed uniformly on both rods. If q = 13.0 pC, what is the magnitude of the electric field produced at P, the center of the circle? Number Units

Image text
In the figure two curved plastic rods, one of charge + q and the other of charge − q , form a circle of radius R = 3.75 cm in an x y plane. The x axis passes through both of the connecting points, and the charge is distributed uniformly on both rods. If q = 13.0 pC , what is the magnitude of the electric field produced at P , the center of the circle?
Number i Units ◻
