Question

Notify Me Bookmark

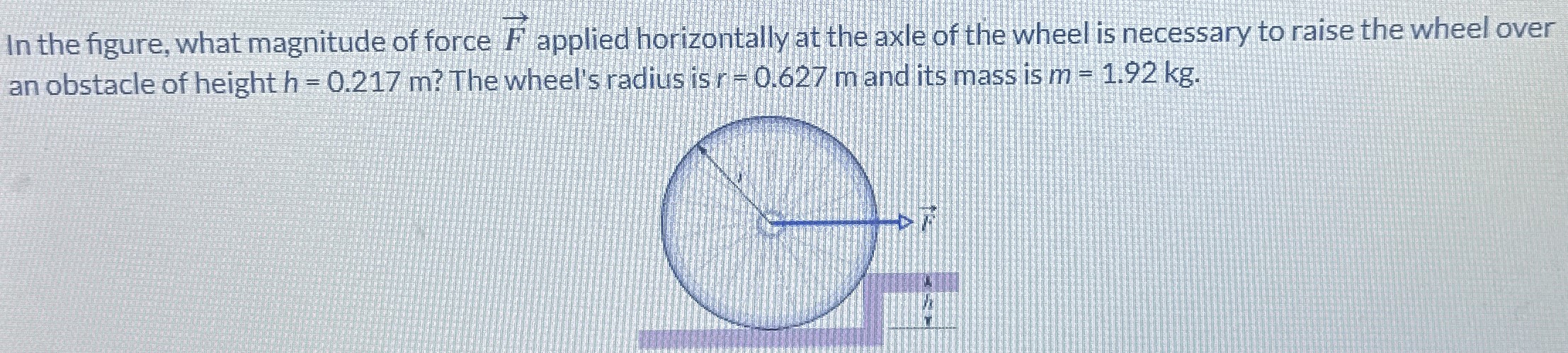

In the figure, what magnitude of force F→ applied horizontally at the axle of the wheel is necessary to raise the wheel over an obstacle of height h = 0.217 m? The wheel's radius is r = 0.627 m and its mass is m = 1.92 kg.

In the figure, what magnitude of force F→ applied horizontally at the axle of the wheel is necessary to raise the wheel over an obstacle of height h = 0.217 m? The wheel's radius is r = 0.627 m and its mass is m = 1.92 kg.

Image text
In the figure, what magnitude of force F → applied horizontally at the axle of the wheel is necessary to raise the wheel over an obstacle of height h = 0.217 m ? The wheel's radius is r = 0.627 m and its mass is m = 1.92 kg .

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

You are working during the summer at a company that builds theme parks. The company is designing an electromagnetic propulsion system for a new roller coaster. A model of a substructure of the device appears in the figure below. (i) The rod is of length d = 1.00 m and mass m = 0.600 kg. The rod carries a current I = 100 A in the direction shown and rolls along the rails of length L = 20.0 m without slipping. The entire system of rod and rails is immersed in a uniform downward-directed magnetic field with magnitude B = 2.30 T. The electromagnetic force on the rod is parallel to the rails, causing the rod to roll to the right in the figure. When a full-scale device is produced, this rod will represent the axle of wheels on which the car and its passengers ride. The electromagnetic force on the axle will provide the motion of the car at the beginning of the roller-coaster ride. Your supervisor wants to test the substructure in the figure in a flat outdoor area on the grounds of the company. By projecting the rod from the rails in a horizontal direction from a height h = 2.20 m, the projection speed can be determined from how far from the ends of the rails the rod hits the ground. Your supervisor asks you to determine the length of the outdoor area needed to test the device. (Determine the total horizontal distance, in m, from the initial position of the rod on the tracks to the final position of the rod where it lands on the ground.) m

Solution
0 0

In a judo foot-sweep move, you sweep your opponent's left foot out from under him while pulling on his gi (uniform) toward that side. As a result, your opponent rotates around his right foot and onto the mat. The figure shows a simplified diagram of your opponent as you face him, with his left foot swept out. The rotational axis is through point O. The gravitational force F→g on him effectively acts at his center of mass, which is a horizontal distance d = 25 cm from point O. His mass is 84 kg, and his rotational inertia about point O is 65 kg⋅m2. What is the magnitude of his initial angular acceleration about point O if your pull F→a on his gi is (a) negligible and (b) horizontal with a magnitude of 300 N and applied at height h = 1.4 m? Assume free-fall acceleration to be equal to 9.81 m/s2. (a) Number Units (b) Number Units

Solution
0 0

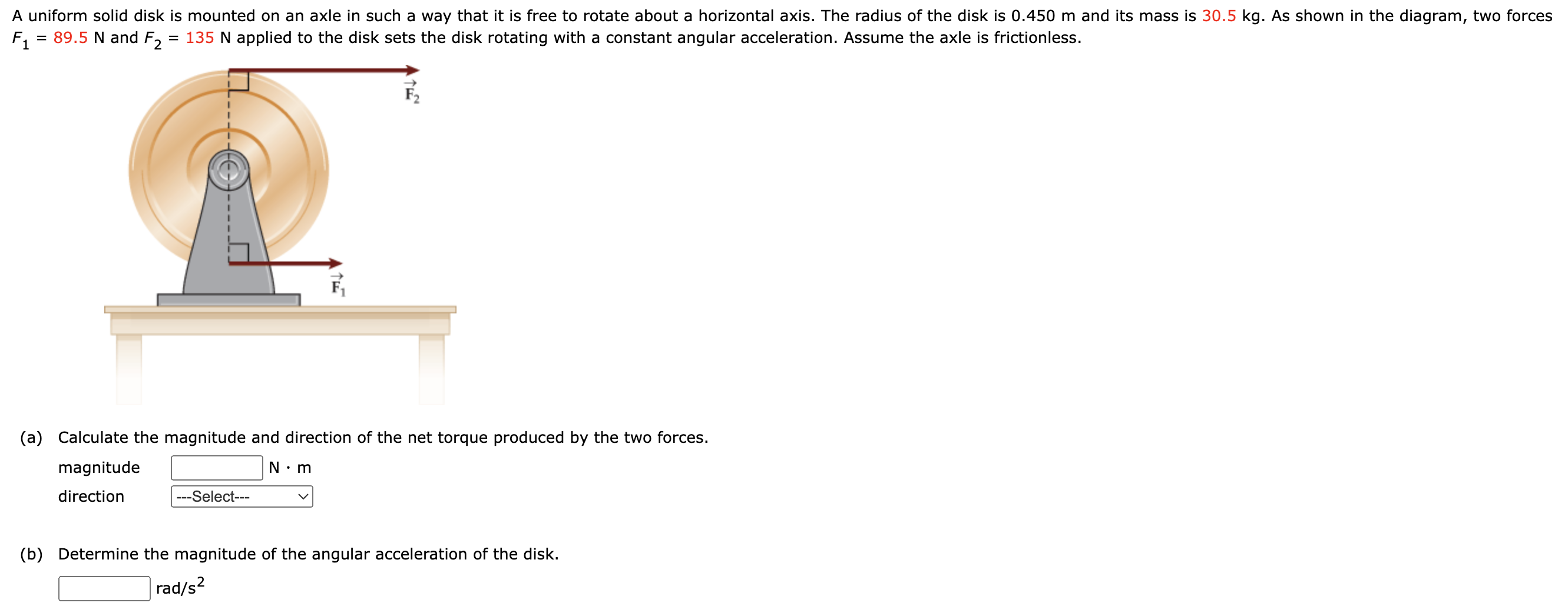

A uniform solid disk is mounted on an axle in such a way that it is free to rotate about a horizontal axis. The radius of the disk is 0.450 m and its mass is 30.5 kg. As shown in the diagram, two forces F1 = 89.5 N and F2 = 135 N applied to the disk sets the disk rotating with a constant angular acceleration. Assume the axle is frictionless. (a) Calculate the magnitude and direction of the net torque produced by the two forces. magnitude N⋅m direction (b) Determine the magnitude of the angular acceleration of the disk. rad/s2
Solution
0 0
