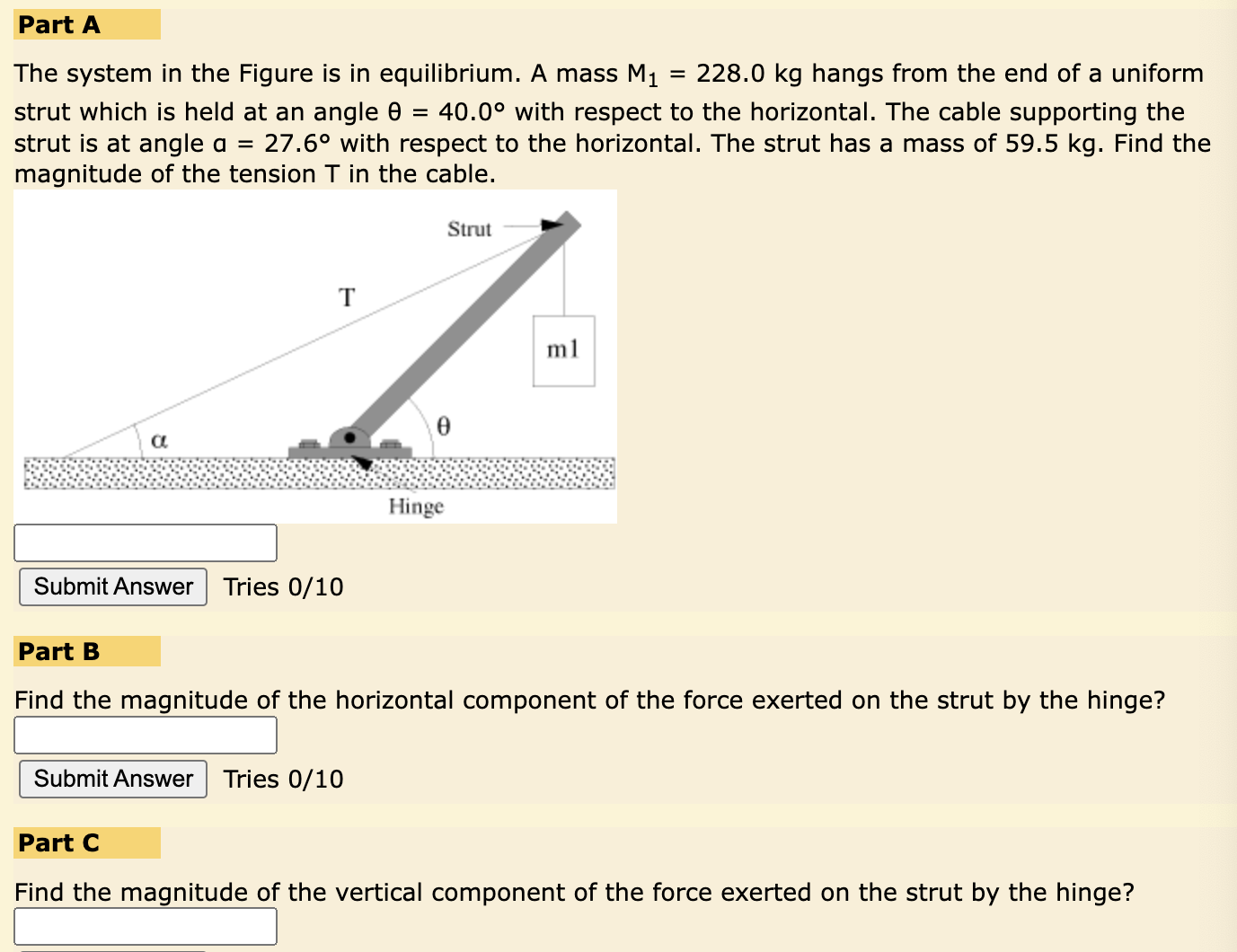

Part A The system in the Figure is in equilibrium. A mass M1 = 228.0 kg hangs from the end of a uniform strut which is held at an angle θ = 40.0∘ with respect to the horizontal. The cable supporting the strut is at angle a = 27.6∘ with respect to the horizontal. The strut has a mass of 59.5 kg. Find the magnitude of the tension T in the cable. Part B Find the magnitude of the horizontal component of the force exerted on the strut by the hinge? Part C Find the magnitude of the vertical component of the force exerted on the strut by the hinge?

Part A The system in the Figure is in equilibrium. A mass M1 = 228.0 kg hangs from the end of a uniform strut which is held at an angle θ = 40.0∘ with respect to the horizontal. The cable supporting the strut is at angle a = 27.6∘ with respect to the horizontal. The strut has a mass of 59.5 kg. Find the magnitude of the tension T in the cable. Part B Find the magnitude of the horizontal component of the force exerted on the strut by the hinge? Part C Find the magnitude of the vertical component of the force exerted on the strut by the hinge?

Image text
Part A The system in the Figure is in equilibrium. A mass M 1 = 228.0 k g hangs from the end of a uniform strut which is held at an angle θ = 40.0 with respect to the horizontal. The cable supporting the strut is at angle a = 27.6 with respect to the horizontal. The strut has a mass of 59.5 k g . Find the magnitude of the tension T in the cable.
Submit Answer Tries 0 / 10 Part B Find the magnitude of the horizontal component of the force exerted on the strut by the hinge? Submit Answer Tries 0 / 10 Part C Find the magnitude of the vertical component of the force exerted on the strut by the hinge?
