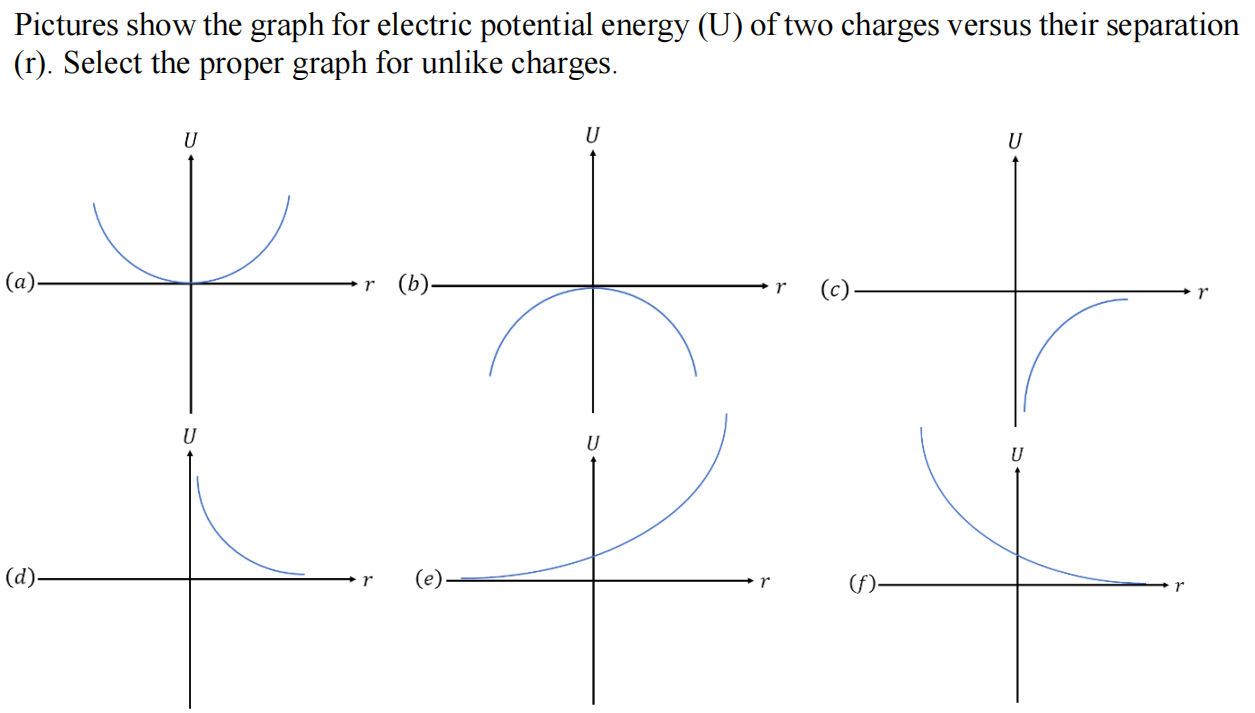

Pictures show the graph for electric potential energy (U) of two charges versus their separation (r). Select the proper graph for unlike charges. (b)
