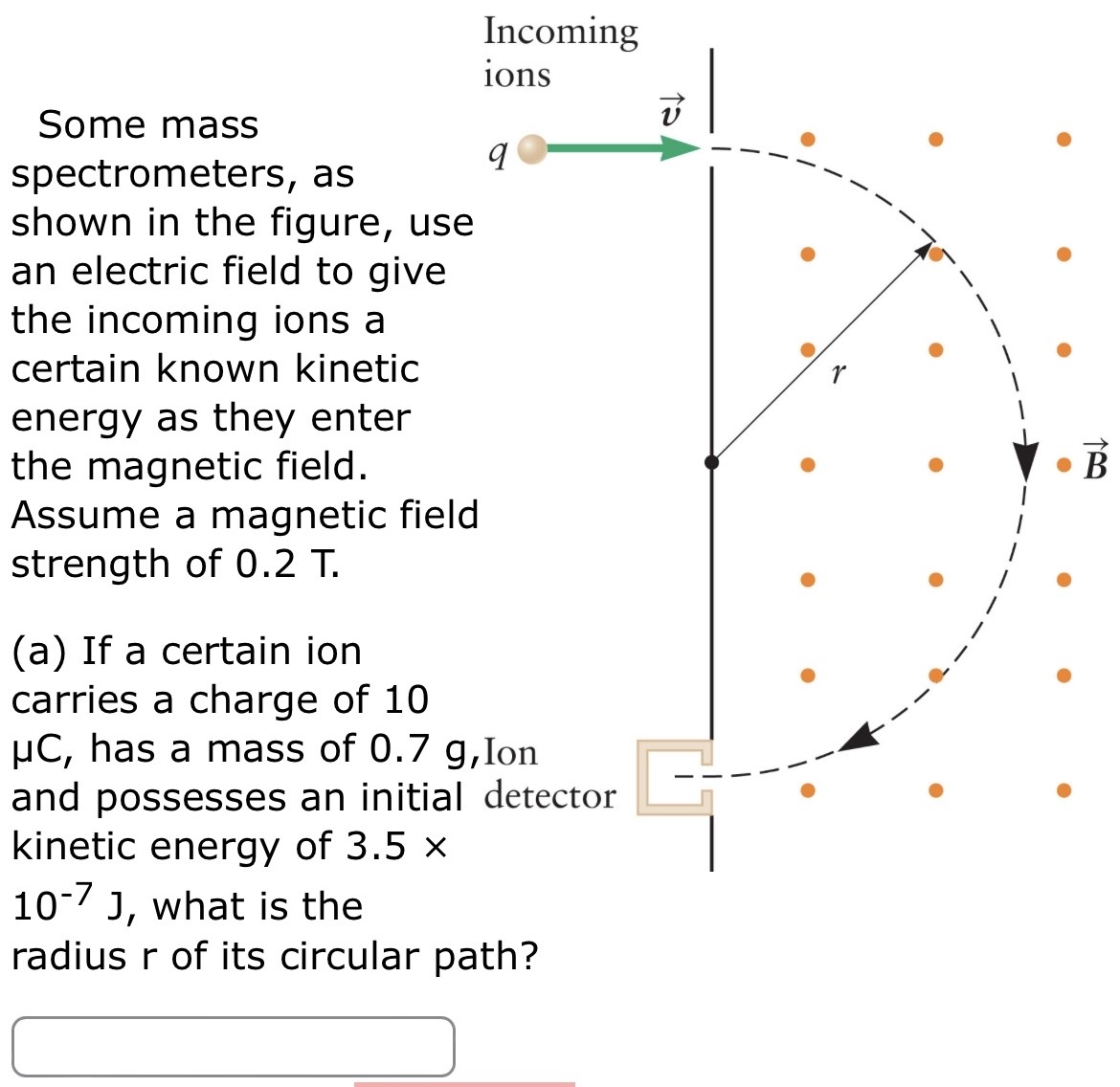

Some mass spectrometers, as shown in the figure, use an electric field to give the incoming ions a certain known kinetic energy as they enter the magnetic field. Assume a magnetic field strength of 0.2 T. (a) If a certain ion carries a charge of 10 μC, has a mass of 0.7 g, and possesses an initial kinetic energy of 3.5× 10−7 J, what is the radius r of its circular path?

Some mass spectrometers, as shown in the figure, use an electric field to give the incoming ions a certain known kinetic energy as they enter the magnetic field. Assume a magnetic field strength of 0.2 T. (a) If a certain ion carries a charge of 10 μC, has a mass of 0.7 g, and possesses an initial kinetic energy of 3.5× 10−7 J, what is the radius r of its circular path?

Image text
Some mass spectrometers, as shown in the figure, use an electric field to give the incoming ions a certain known kinetic energy as they enter the magnetic field. Assume a magnetic field strength of 0.2 T . (a) If a certain ion carries a charge of 10 μ C , has a mass of 0.7 g , Ion and possesses an initial dete kinetic energy of 3.5 × 10 − 7 J , what is the radius r of its circular path?
