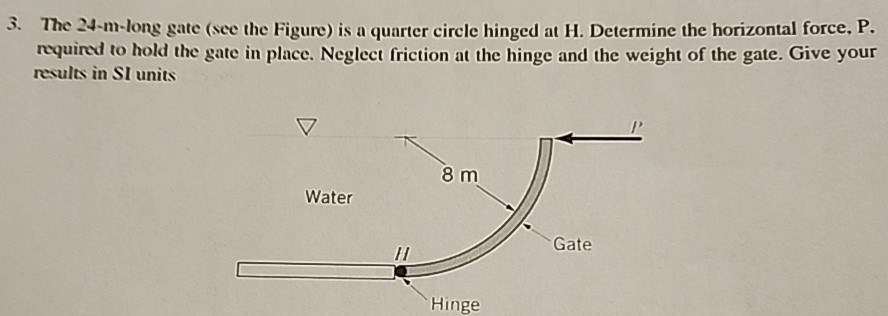

The 24-m-long gate (see the Figure) is a quarter circle hinged at H. Determine the horizontal force, P. required to hold the gate in place. Neglect friction at the hinge and the weight of the gate. Give your results in SI units

The 24-m-long gate (see the Figure) is a quarter circle hinged at H. Determine the horizontal force, P. required to hold the gate in place. Neglect friction at the hinge and the weight of the gate. Give your results in SI units

Image text
  1. The 24 - m -long gate (see the Figure) is a quarter circle hinged at H . Determine the horizontal force, P . required to hold the gate in place. Neglect friction at the hinge and the weight of the gate. Give your results in S I units
