The boxes are stacked as shown. The force P is 40−lb. Determine the maximum acceleration of the top block Determine the acceleration of the system if they stick together Determine if the top block slips relative to the bottom block Determine the actual accelerations of each block. Ans: 9.66, 12.88

The boxes are stacked as shown. The force P is 40−lb. Determine the maximum acceleration of the top block Determine the acceleration of the system if they stick together Determine if the top block slips relative to the bottom block Determine the actual accelerations of each block. Ans: 9.66, 12.88

Image text

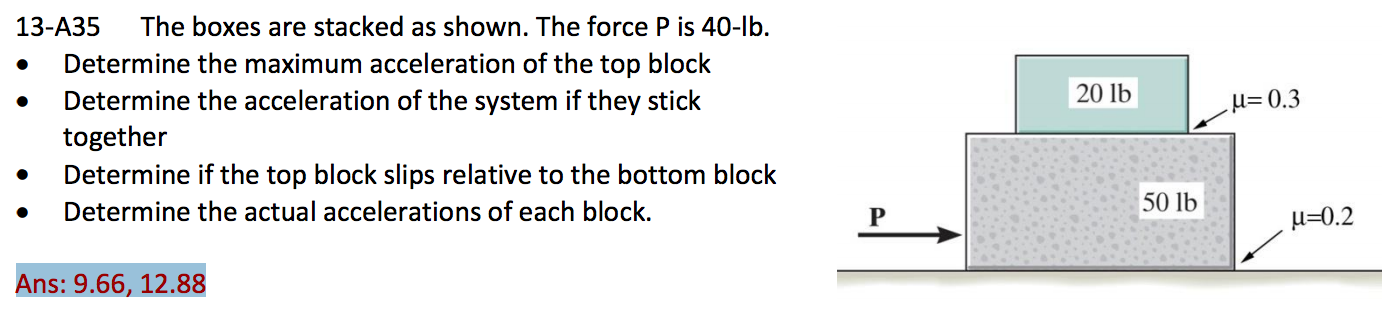

13-A35 The boxes are stacked as shown. The force P is 40 − l b .
  • Determine the maximum acceleration of the top block
  • Determine the acceleration of the system if they stick together
  • Determine if the top block slips relative to the bottom block
  • Determine the actual accelerations of each block.
Ans: 9.66 , 12.88
