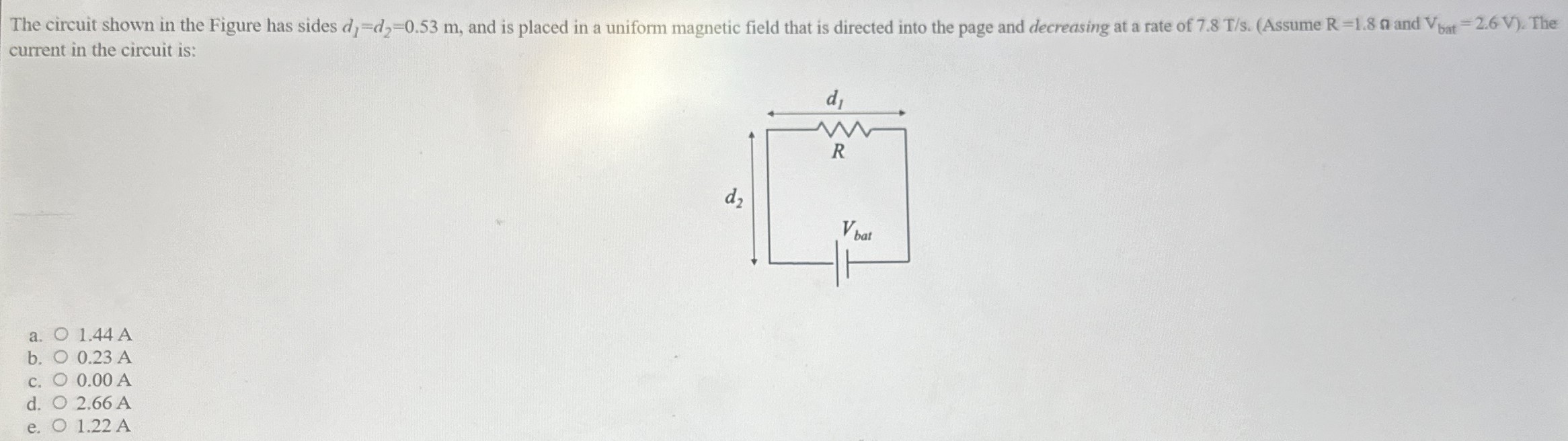

The circuit shown in the Figure has sides d1 = d2 = 0.53 m, and is placed in a uniform magnetic field that is directed into the page and decreasing at a rate of 7.8 T/s. (Assume R = 1.8 Ω and Vbat = 2.6 V). The current in the circuit is: a. 1.44 A b. 0.23 A c. 0.00 A d. 2.66 A e. 1.22 A

The circuit shown in the Figure has sides d1 = d2 = 0.53 m, and is placed in a uniform magnetic field that is directed into the page and decreasing at a rate of 7.8 T/s. (Assume R = 1.8 Ω and Vbat = 2.6 V). The current in the circuit is: a. 1.44 A b. 0.23 A c. 0.00 A d. 2.66 A e. 1.22 A

Image text
The circuit shown in the Figure has sides d 1 = d 2 = 0.53 m , and is placed in a uniform magnetic field that is directed into the page and decreasing at a rate of 7.8 T / s . (Assume R = 1.8 Ω and V bat = 2.6 V ). The current in the circuit is: a. 1.44 A b. 0.23 A c. 0.00 A d. 2.66 A e. 1.22 A

Detailed Answer
