The coefficients of friction μs = 0.40 and μk = 0.30 between all surfaces of contact. Determine the smallest force p required to start the 30 kg block moving if cable AB is attached as shown, [20 marks] A body of weight 2000 N moves on a level horizontal rough road for a distance of 200 m. The resistance of the road is 10 N per 1000 N weight of the body. Find the work done by the resistance on the body. [05 marks]

The coefficients of friction μs = 0.40 and μk = 0.30 between all surfaces of contact. Determine the smallest force p required to start the 30 kg block moving if cable AB is attached as shown, [20 marks] A body of weight 2000 N moves on a level horizontal rough road for a distance of 200 m. The resistance of the road is 10 N per 1000 N weight of the body. Find the work done by the resistance on the body. [05 marks]

Image text

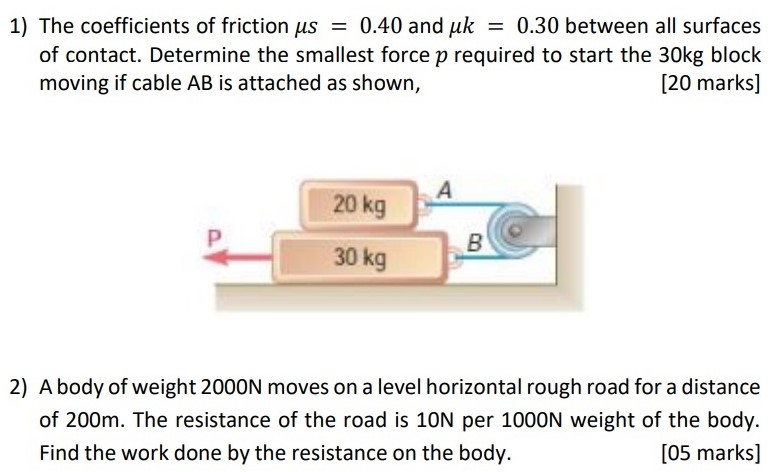

  1. The coefficients of friction μ s = 0.40 and μ k = 0.30 between all surfaces of contact. Determine the smallest force p required to start the 30 k g block moving if cable A B is attached as shown, [20 marks]
  2. A body of weight 2000 N moves on a level horizontal rough road for a distance of 200 m . The resistance of the road is 10 N per 1000 N weight of the body. Find the work done by the resistance on the body. [05 marks]
