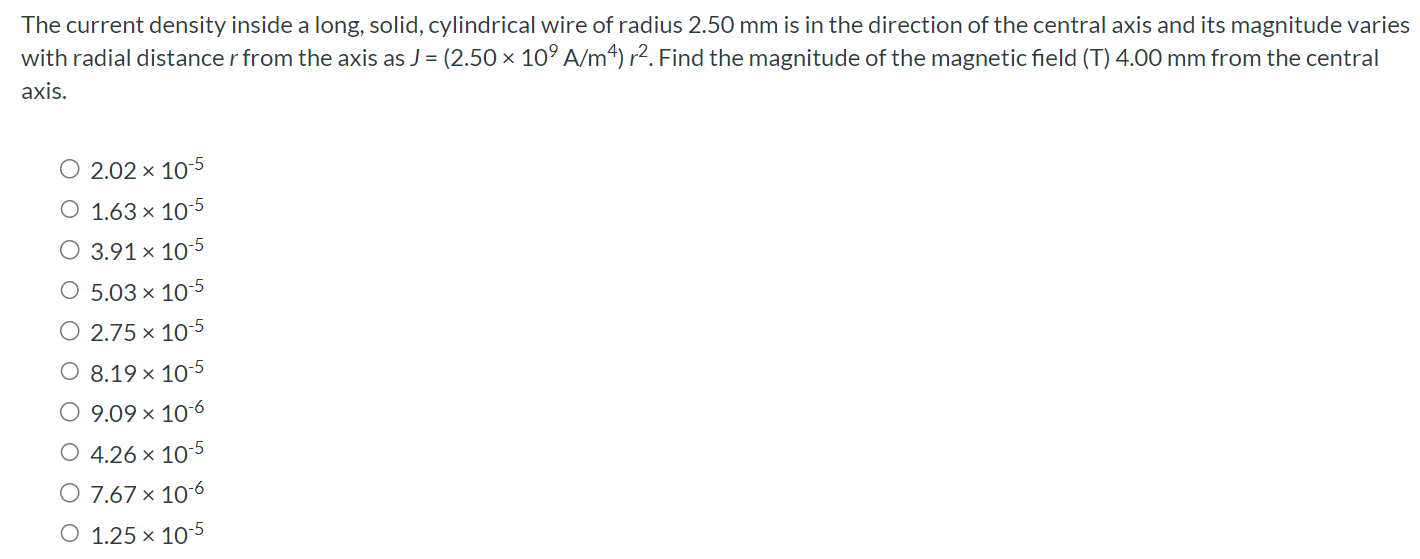

The current density inside a long, solid, cylindrical wire of radius 2.50 mm is in the direction of the central axis and its magnitude varies with radial distance r from the axis as J = (2.50×109 A/m4)r2. Find the magnitude of the magnetic field (T) 4.00 mm from the central axis. 2.02×10−5 1.63×10−5 3.91×10−5 5.03×10−5 2.75×10−5 8.19×10−5 9.09×10−6 4.26×10−5 7.67×10−6 1.25×10−5

The current density inside a long, solid, cylindrical wire of radius 2.50 mm is in the direction of the central axis and its magnitude varies with radial distance r from the axis as J = (2.50×109 A/m4)r2. Find the magnitude of the magnetic field (T) 4.00 mm from the central axis. 2.02×10−5 1.63×10−5 3.91×10−5 5.03×10−5 2.75×10−5 8.19×10−5 9.09×10−6 4.26×10−5 7.67×10−6 1.25×10−5

Image text
The current density inside a long, solid, cylindrical wire of radius 2.50 m m is in the direction of the central axis and its magnitude varies with radial distance r from the axis as J = ( 2.50 × 10 9 A / m 4 ) r 2 . Find the magnitude of the magnetic field (T) 4.00 m m from the central axis. 2.02 × 10 − 5 1.63 × 10 − 5 3.91 × 10 − 5 5.03 × 10 − 5 2.75 × 10 − 5 8.19 × 10 − 5 9.09 × 10 − 6 4.26 × 10 − 5 7.67 × 10 − 6 1.25 × 10 − 5
