The current i through a 3.6 H inductor varies with time t as shown by the graph of the figure. The inductor has a resistance of 12 Ω. Find the magnitude of the induced emf ε during the time intervals (a) t = 0 to 2 ms; (b) 2 ms to 5 ms, and (c) 5 ms to 6 ms. (Ignore the behavior at the ends of the intervals.) (a) Number Units (b) Number Units (c) Number Units

The current i through a 3.6 H inductor varies with time t as shown by the graph of the figure. The inductor has a resistance of 12 Ω. Find the magnitude of the induced emf ε during the time intervals (a) t = 0 to 2 ms; (b) 2 ms to 5 ms, and (c) 5 ms to 6 ms. (Ignore the behavior at the ends of the intervals.) (a) Number Units (b) Number Units (c) Number Units

Image text
The current i through a 3.6 H inductor varies with time t as shown by the graph of the figure. The inductor has a resistance of 12 Ω. Find the magnitude of the induced emf ε during the time intervals (a) t = 0 to 2 ms; (b) 2 ms to 5 ms, and (c) 5 ms to 6 ms. (Ignore the behavior at the ends of the intervals.) (a) Number Units (b) Number Units (c) Number Units

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

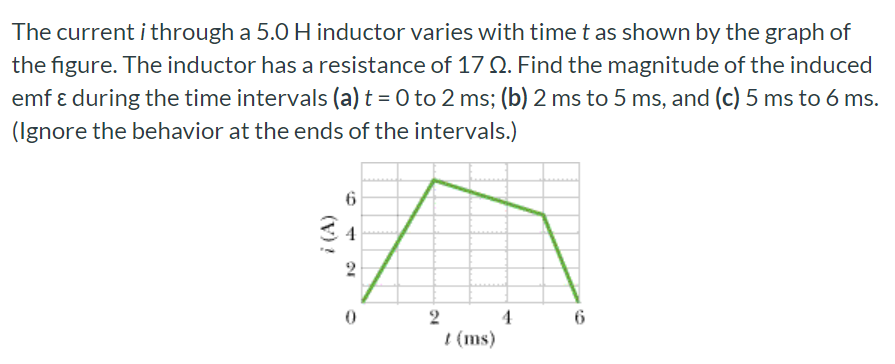

The current i through a 5.0 H inductor varies with time t as shown by the graph of the figure. The inductor has a resistance of 17 Ω. Find the magnitude of the induced emf ε during the time intervals (a) t = 0 to 2 ms; (b) 2 ms to 5 ms, and (c) 5 ms to 6 ms. (Ignore the behavior at the ends of the intervals.)
