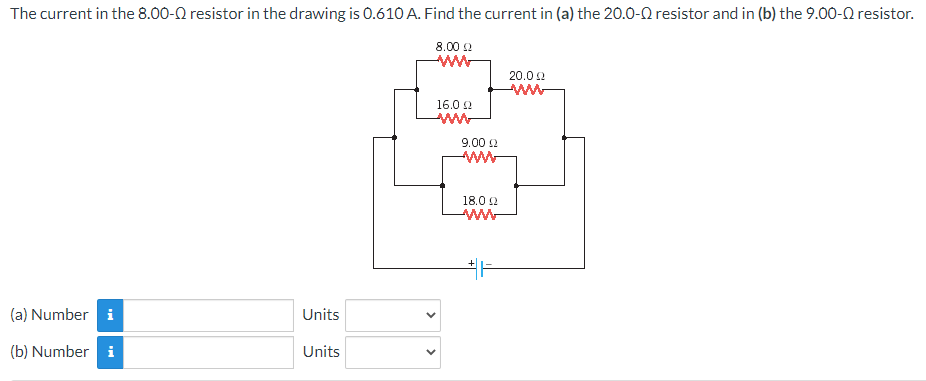

The current in the 8.00−Ω resistor in the drawing is 0.610 A. Find the current in (a) the 20.0−Ω resistor and in (b) the 9.00−Ω resistor. (a) Number Units (b) Number Units
