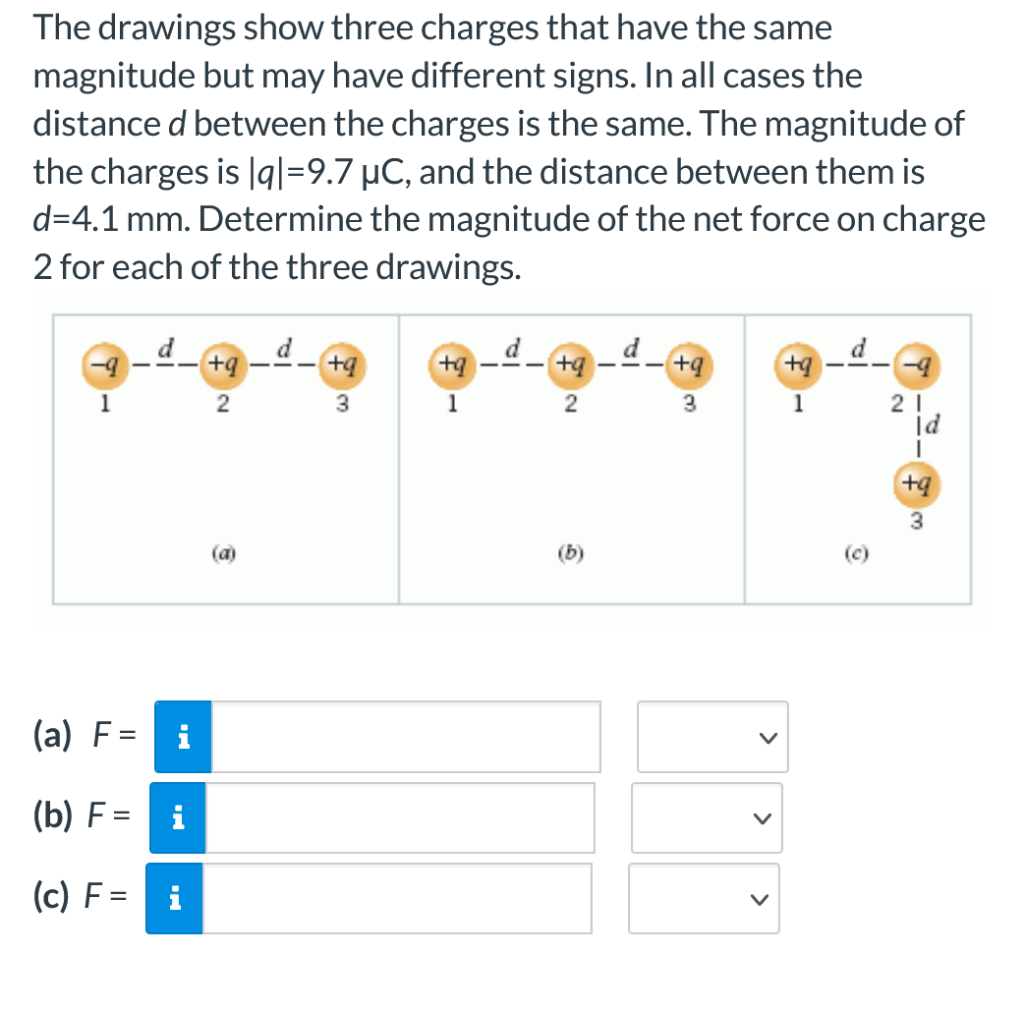

The drawings show three charges that have the same magnitude but may have different signs. In all cases the distance d between the charges is the same. The magnitude of the charges is |q| = 9.7 μC, and the distance between them is d = 4.1 mm. Determine the magnitude of the net force on charge 2 for each of the three drawings. (a) F = (b) F = (c) F =

The drawings show three charges that have the same magnitude but may have different signs. In all cases the distance d between the charges is the same. The magnitude of the charges is |q| = 9.7 μC, and the distance between them is d = 4.1 mm. Determine the magnitude of the net force on charge 2 for each of the three drawings. (a) F = (b) F = (c) F =

Image text
The drawings show three charges that have the same magnitude but may have different signs. In all cases the distance d between the charges is the same. The magnitude of the charges is | q | = 9.7 μ C , and the distance between them is d = 4.1 mm . Determine the magnitude of the net force on charge 2 for each of the three drawings.
(a) F = i (b) F = ◻ ◻ (c) F = ◻ ◻

Detailed Answer

3 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (3)
  • Correct answers (3)
  • Complete solution (3)
  • Step-by-step solution (3)
  • Fully explained (3)

Similar/Related Questions

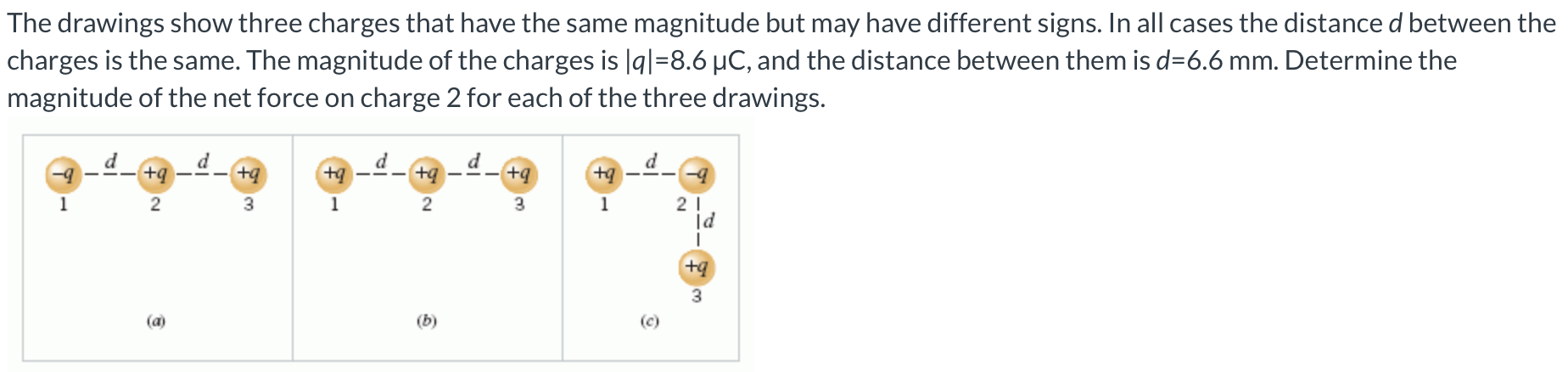

The drawings show three charges that have the same magnitude but may have different signs. In all cases the distance d between the charges is the same. The magnitude of the charges is |q| = 8.6 μC, and the distance between them is d = 6.6 mm. Determine the magnitude of the net force on charge 2 for each of the three drawings.
