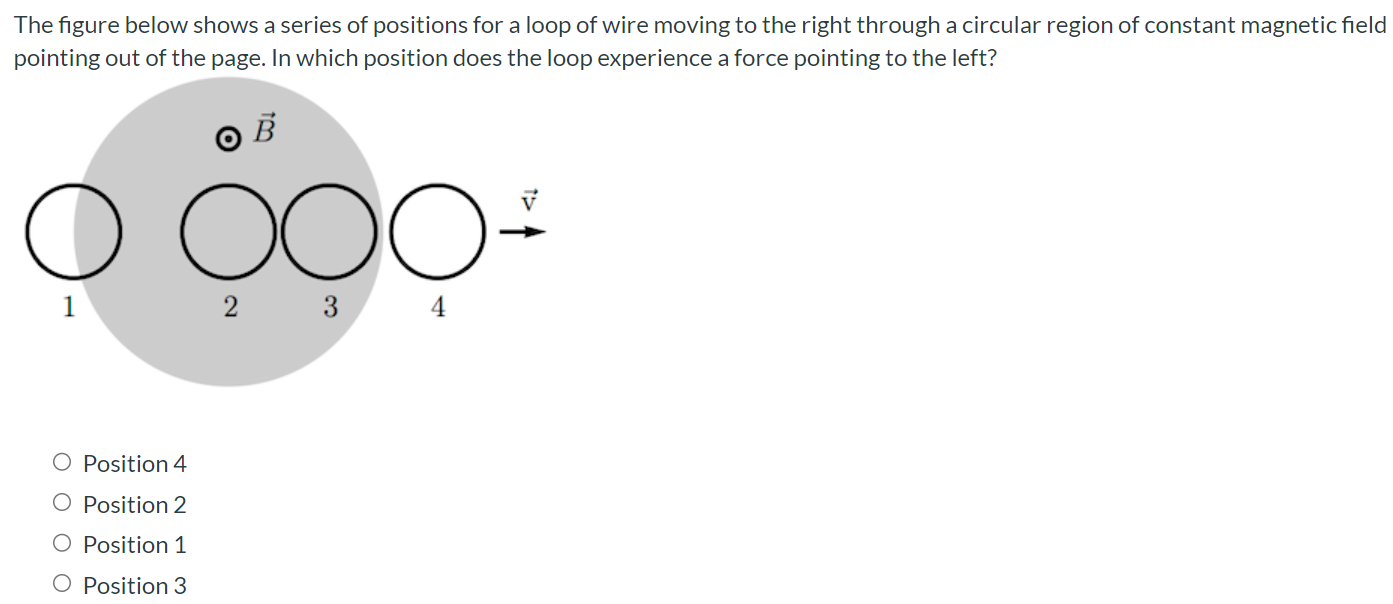

The figure below shows a series of positions for a loop of wire moving to the right through a circular region of constant magnetic field pointing out of the page. In which position does the loop experience a force pointing to the left? Position 4 Position 2 Position 1 Position 3

The figure below shows a series of positions for a loop of wire moving to the right through a circular region of constant magnetic field pointing out of the page. In which position does the loop experience a force pointing to the left? Position 4 Position 2 Position 1 Position 3

Image text
The figure below shows a series of positions for a loop of wire moving to the right through a circular region of constant magnetic field pointing out of the page. In which position does the loop experience a force pointing to the left? Position 4 Position 2 Position 1 Position 3

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

The figure below shows a loop of wire of mass m = 0.0251 kg, width L = 0.0537 m, and resistance R = 0.494 Ω dropping out of a region of constant magnetic field of magnitude B = 1.47 T pointing into the page. As long as the top of the loop is in the magnetic field, the equation describing the speed of the loop v is given by mdvdt + vL2 B2 R = mg. Replacing the speed by the current i, this equation has the same form as that for a series RL circuit. What is the speed of the loop after t = 3.58 s?
Solution
0 0

The figure below shows a rectangular coil of length ℓ and width w consisting of N turns of conducting wire, moving to the right with a constant velocity v→. The coil moves into a region of uniform magnetic field B→, pointing into the page and perpendicular to the plane of the coil. The total resistance of the coil is R. Find the magnitude and direction of the total magnetic force on the coil for the following situations. (Use the following as necessary: N, B, w, l, v, and R. ) (a) as it enters the magnetic field magnitude F = direction (b) as it moves within the field magnitude F = direction (c) as it leaves the field magnitude F = direction
Solution
2 0

The figure below shows a loop of wire of radius r = 0.810 m and resistance R = 0.0210Ω inside a region of spatially constant magnetic field with time dependent magnitude B = bt Find the time at which the net magnetic field at the center of the loop vanishes.
