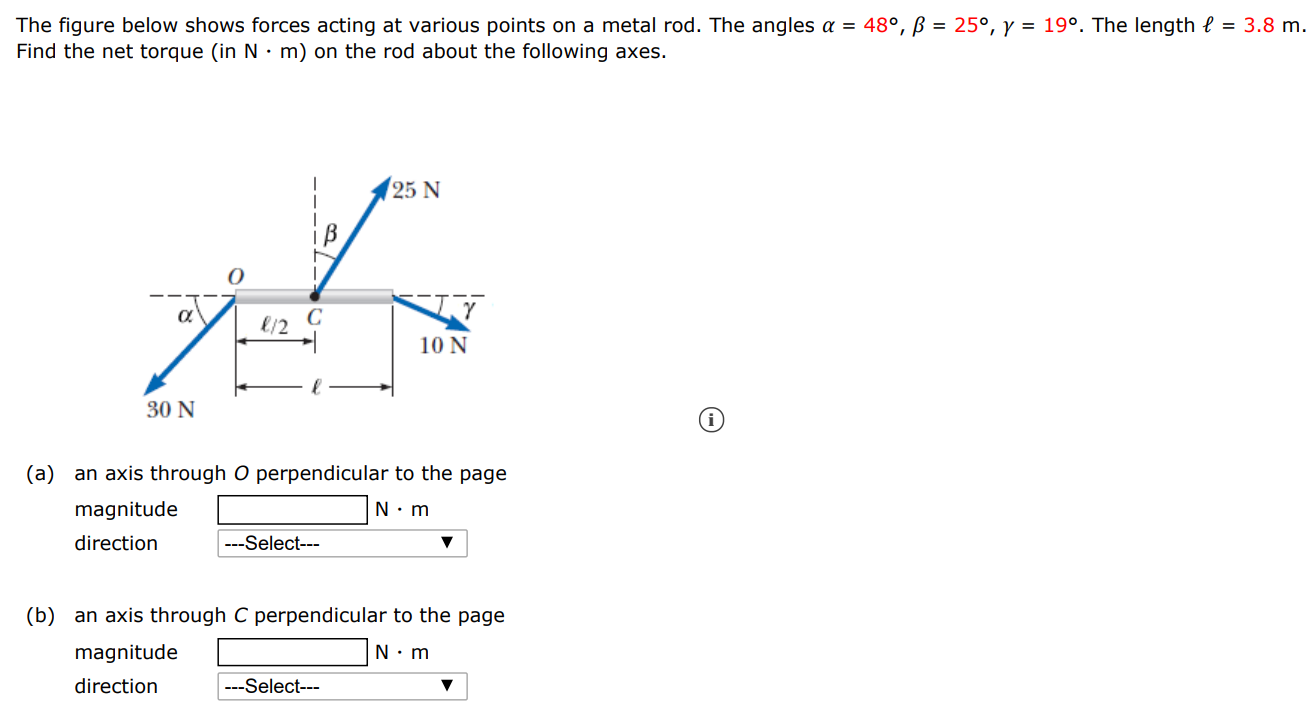

The figure below shows forces acting at various points on a metal rod. The angles α = 48∘, β = 25∘, γ = 19∘. The length ℓ = 3.8 m. Find the net torque (in N⋅m ) on the rod about the following axes. (a) an axis through O perpendicular to the page magnitude N⋅m direction (b) an axis through C perpendicular to the page magnitude N⋅m direction

The figure below shows forces acting at various points on a metal rod. The angles α = 48∘, β = 25∘, γ = 19∘. The length ℓ = 3.8 m. Find the net torque (in N⋅m ) on the rod about the following axes. (a) an axis through O perpendicular to the page magnitude N⋅m direction (b) an axis through C perpendicular to the page magnitude N⋅m direction

Image text
The figure below shows forces acting at various points on a metal rod. The angles α = 48 ∘ , β = 25 ∘ , γ = 19 ∘ . The length ℓ = 3.8 m . Find the net torque (in N ⋅ m ) on the rod about the following axes. (a) an axis through O perpendicular to the page magnitude ◻ N ⋅ m direction -- Select--- (b) an axis through C perpendicular to the page magnitude ◻ N ⋅ m direction ---Select---

Detailed Answer

3 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (3)
  • Correct answers (3)
  • Complete solution (3)
  • Step-by-step solution (3)
  • Fully explained (3)

Similar/Related Questions

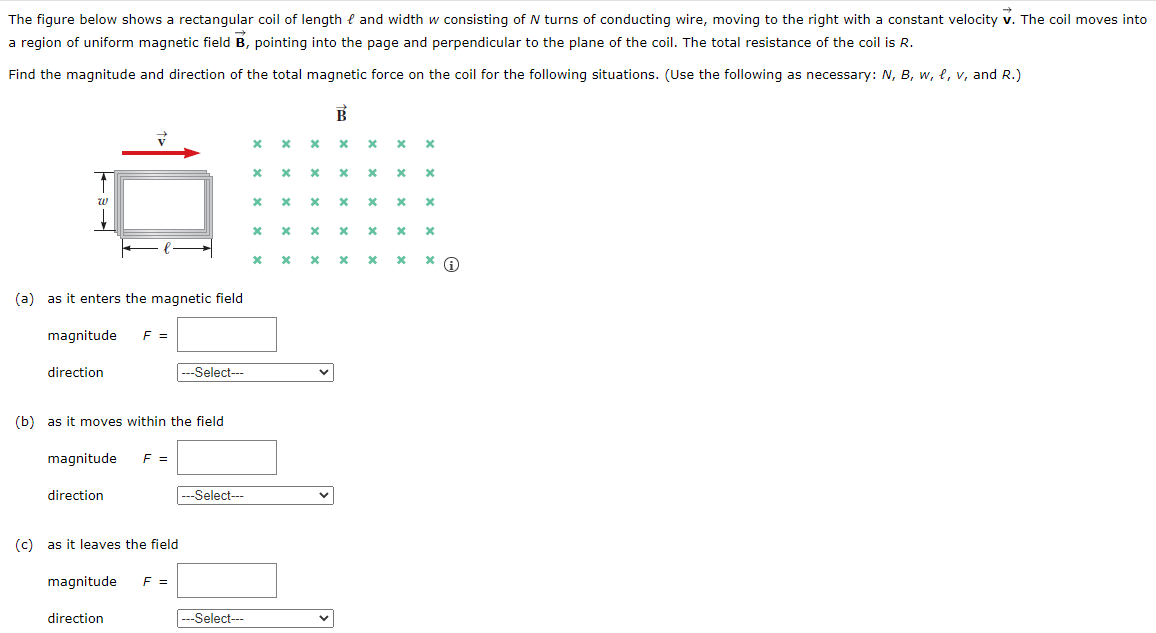

The figure below shows a rectangular coil of length ℓ and width w consisting of N turns of conducting wire, moving to the right with a constant velocity v→. The coil moves into a region of uniform magnetic field B→, pointing into the page and perpendicular to the plane of the coil. The total resistance of the coil is R. Find the magnitude and direction of the total magnetic force on the coil for the following situations. (Use the following as necessary: N, B, w, l, v, and R. ) (a) as it enters the magnetic field magnitude F = direction (b) as it moves within the field magnitude F = direction (c) as it leaves the field magnitude F = direction
Solution
2 0

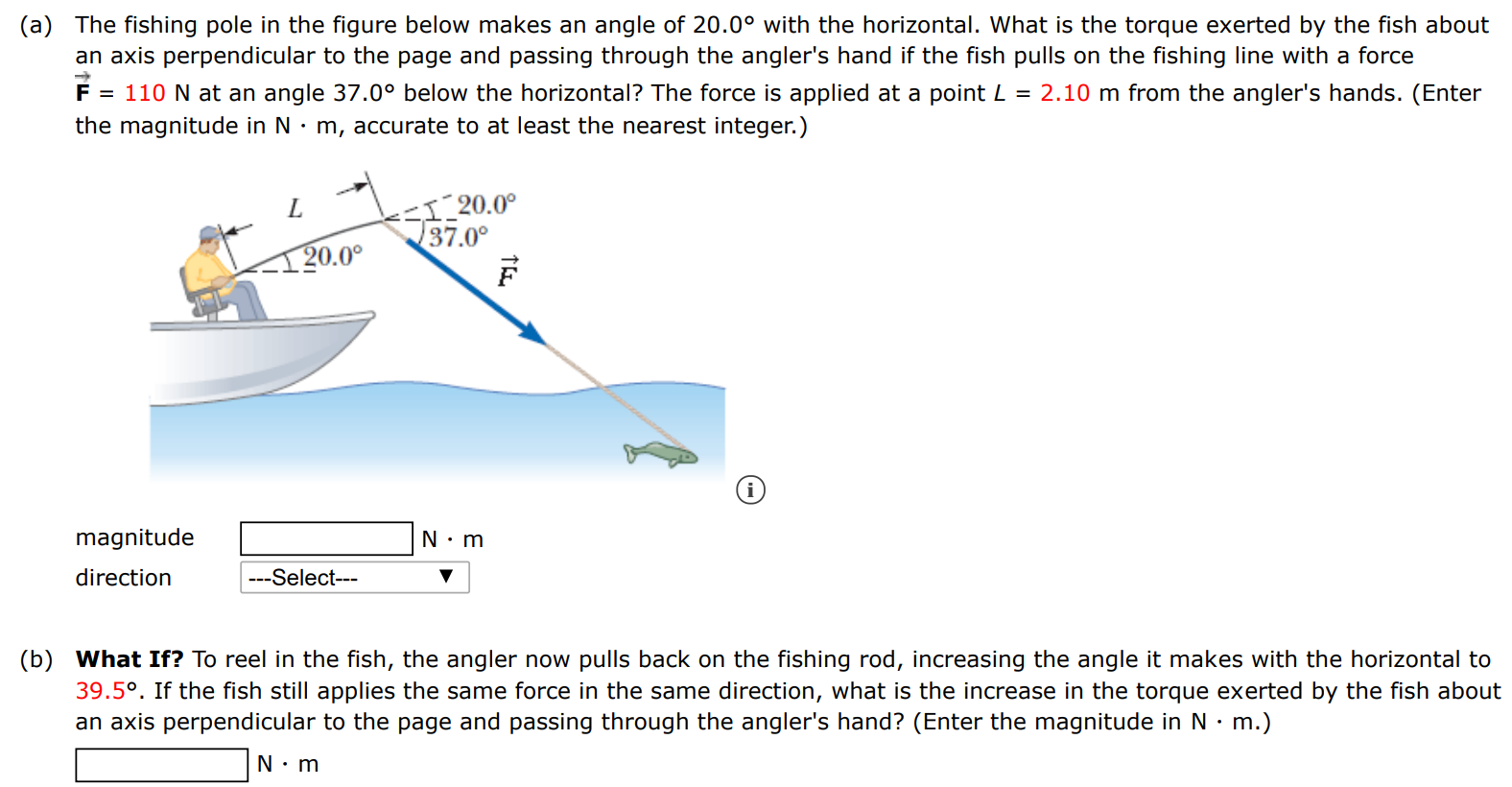

(a) The fishing pole in the figure below makes an angle of 20.0∘ with the horizontal. What is the torque exerted by the fish about an axis perpendicular to the page and passing through the angler's hand if the fish pulls on the fishing line with a force F→ = 110 N at an angle 37.0∘ below the horizontal? The force is applied at a point L = 2.10 m from the angler's hands. (Enter the magnitude in N⋅m, accurate to at least the nearest integer. ) (i) (b) What If? To reel in the fish, the angler now pulls back on the fishing rod, increasing the angle it makes with the horizontal to 39.5∘. If the fish still applies the same force in the same direction, what is the increase in the torque exerted by the fish about an axis perpendicular to the page and passing through the angler's hand? (Enter the magnitude in N⋅m.) N⋅m
