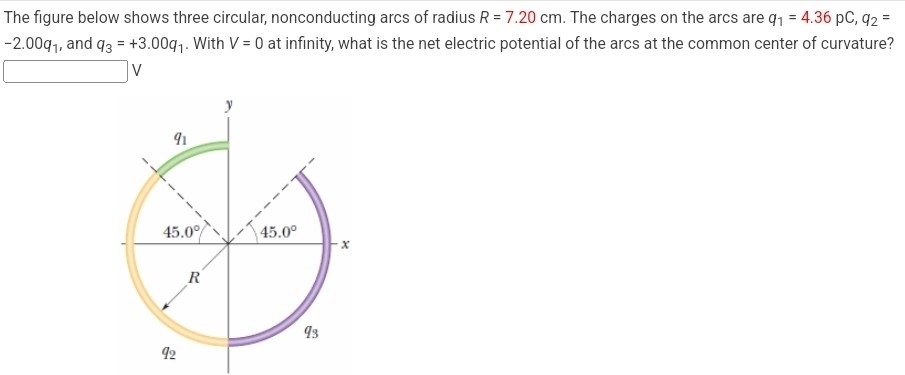

The figure below shows three circular, nonconducting arcs of radius R = 7.20 cm. The charges on the arcs are q1 = 4.36 pC, q2 = −2.00 q1, and q3 = +3.00q1. With V = 0 at infinity, what is the net electric potential of the arcs at the common center of curvature? V

The figure below shows three circular, nonconducting arcs of radius R = 7.20 cm. The charges on the arcs are q1 = 4.36 pC, q2 = −2.00 q1, and q3 = +3.00q1. With V = 0 at infinity, what is the net electric potential of the arcs at the common center of curvature? V

Image text
The figure below shows three circular, nonconducting arcs of radius R = 7.20 c m . The charges on the arcs are q 1 = 4.36 p C , q 2 = − 2.00 q 1 , and q 3 = + 3.00 q 1 . With V = 0 at infinity, what is the net electric potential of the arcs at the common center of curvature? ◻ V

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

In the figure particles with charges q1 = +8e and q2 = −17e are fixed in place with a separation of d = 25.0 cm. With V = 0 at infinity, what are the finite (a) positive and (b) negative values of x at which the net electric potential on the x axis is zero? (a) Number Units (b) Number Units
Solution
0 0

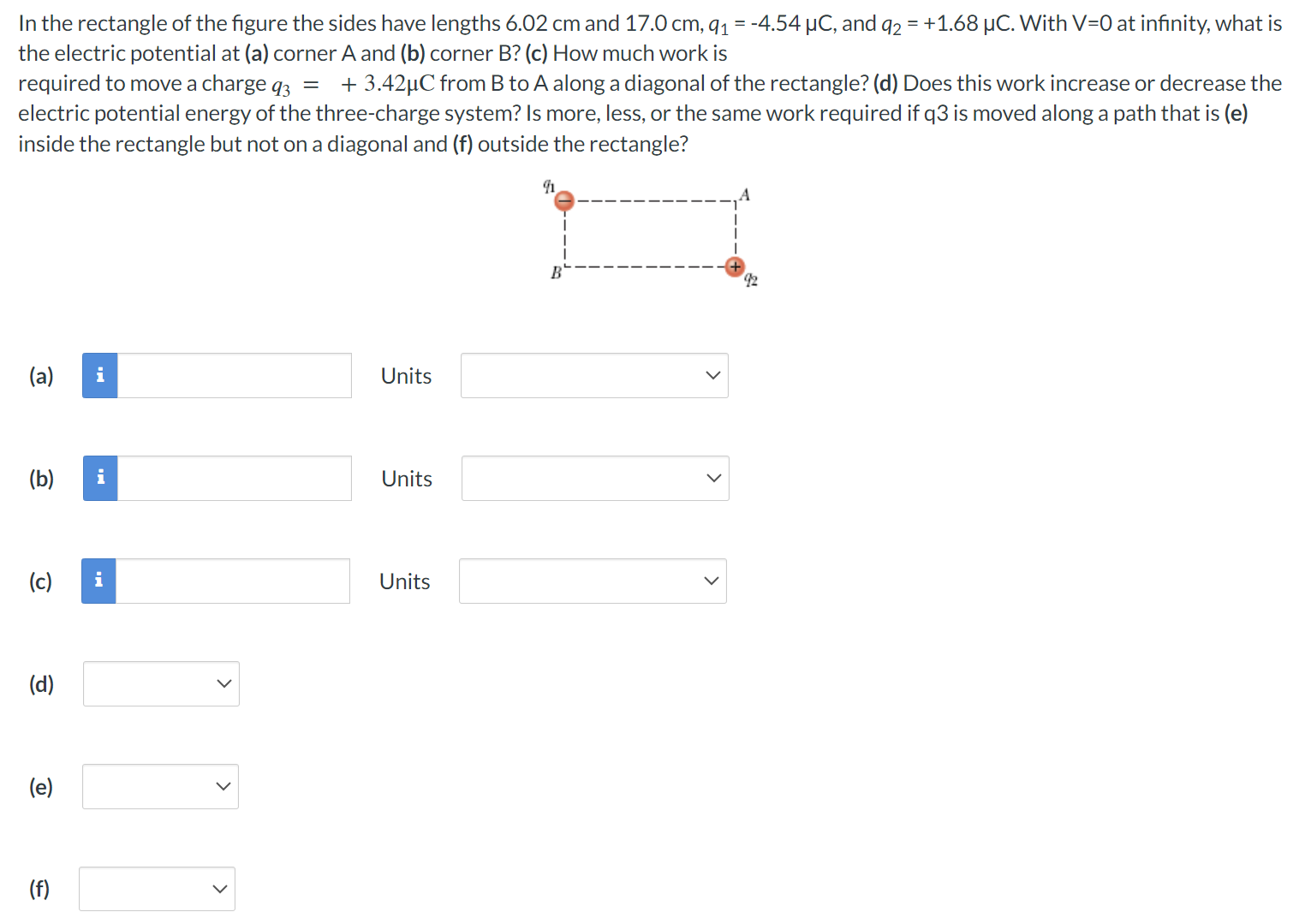

In the rectangle of the figure the sides have lengths 6.02 cm and 17.0 cm, q1 = −4.54 μC, and q2 = +1.68 μC. With V = 0 at infinity, what is the electric potential at (a) corner A and (b) corner B? (c) How much work is required to move a charge q3 = +3.42 μC from B to A along a diagonal of the rectangle? (d) Does this work increase or decrease the electric potential energy of the three-charge system? Is more, less, or the same work required if q3 is moved along a path that is (e) inside the rectangle but not on a diagonal and (f) outside the rectangle? (a) (b) Units (c) Units (d) (e) (f)
