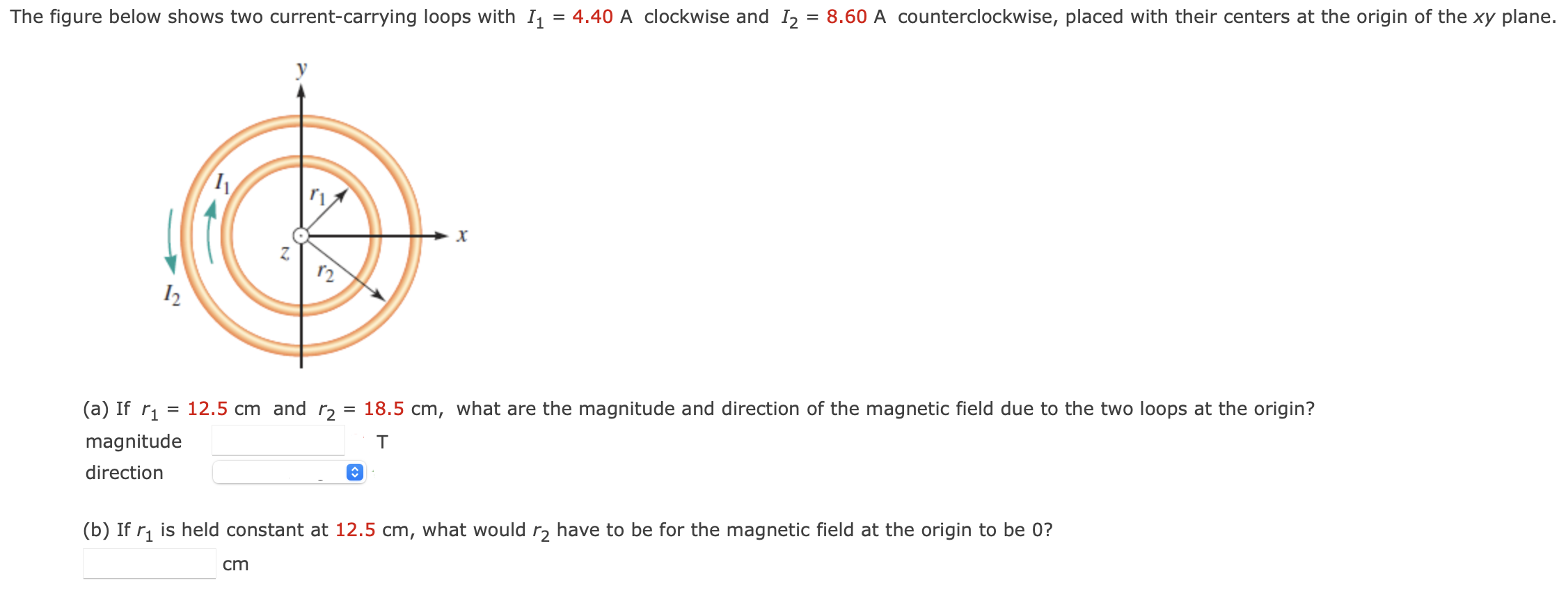

The figure below shows two current-carrying loops with I1 = 4.40 A clockwise and I2 = 8.60 A counterclockwise, placed with their centers at the origin of the xy plane. (a) If r1 = 12.5 cm and r2 = 18.5 cm, what are the magnitude and direction of the magnetic field due to the two loops at the origin? magnitude T direction (b) If r1 is held constant at 12.5 cm, what would r2 have to be for the magnetic field at the origin to be 0? cm

The figure below shows two current-carrying loops with I1 = 4.40 A clockwise and I2 = 8.60 A counterclockwise, placed with their centers at the origin of the xy plane. (a) If r1 = 12.5 cm and r2 = 18.5 cm, what are the magnitude and direction of the magnetic field due to the two loops at the origin? magnitude T direction (b) If r1 is held constant at 12.5 cm, what would r2 have to be for the magnetic field at the origin to be 0? cm

Image text
The figure below shows two current-carrying loops with I 1 = 4.40 A clockwise and I 2 = 8.60 A counterclockwise, placed with their centers at the origin of the x y plane. (a) If r 1 = 12.5 c m and r 2 = 18.5 c m , what are the magnitude and direction of the magnetic field due to the two loops at the origin? magnitude ◻ T direction ◻ (b) If r 1 is held constant at 12.5 cm , what would r 2 have to be for the magnetic field at the origin to be 0 ? cm
