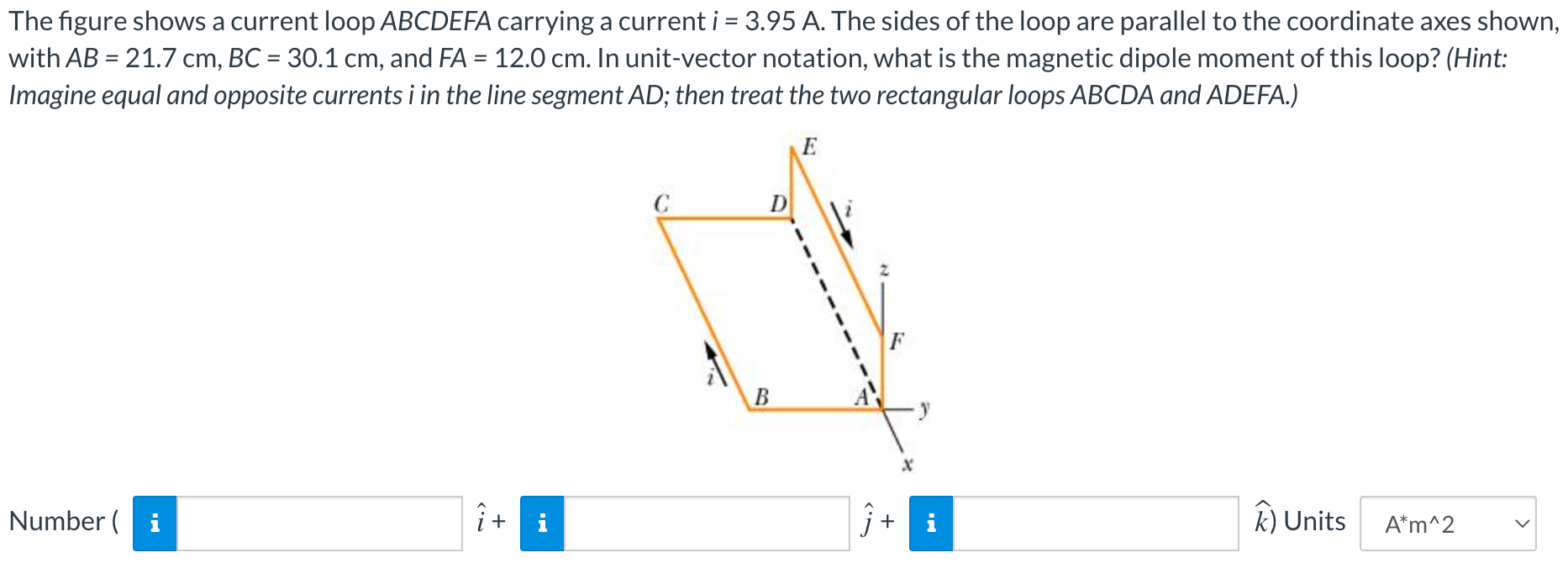

The figure shows a current loop ABCDEFA carrying a current i = 3.95 A. The sides of the loop are parallel to the coordinate axes shown, with AB = 21.7 cm, BC = 30.1 cm, and FA = 12.0 cm. In unit-vector notation, what is the magnetic dipole moment of this loop? (Hint: Imagine equal and opposite currents i in the line segment AD; then treat the two rectangular loops ABCDA and ADEFA.) Number ( i^+ j^+ k) Units

The figure shows a current loop ABCDEFA carrying a current i = 3.95 A. The sides of the loop are parallel to the coordinate axes shown, with AB = 21.7 cm, BC = 30.1 cm, and FA = 12.0 cm. In unit-vector notation, what is the magnetic dipole moment of this loop? (Hint: Imagine equal and opposite currents i in the line segment AD; then treat the two rectangular loops ABCDA and ADEFA.) Number ( i^+ j^+ k) Units

Image text
The figure shows a current loop A B C D E F A carrying a current i = 3.95 A . The sides of the loop are parallel to the coordinate axes shown, with A B = 21.7 cm , B C = 30.1 cm , and F A = 12.0 cm . In unit-vector notation, what is the magnetic dipole moment of this loop? (Hint: Imagine equal and opposite currents i in the line segment A D ; then treat the two rectangular loops A B C D A and A D E F A .)
Number ( i ◻ i ^ + i ◻ j ^ + i ◻ k) Units A ∗ m ∧ 2

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

The figure shows a current loop ABCDEFA carrying a current i = 6.69 A. The sides of the loop are parallel to the coordinate axes shown, with AB = 18.5 cm, BC = 25.3 cm, and FA = 10.7 cm. In unit-vector notation, what is the magnetic dipole moment of this loop? (Hint: Imagine equal and opposite currents i in the line segment AD; then treat the two rectangular loops ABCDA and ADEFA.) Number ( i^+ j^+ k) Units
Solution
0 0

The figure shows an infinitely long straight wire carrying a current of 5.00 A and a rectangular loop of wire carrying a current of 12.0 A. What is the magnitude (N) of the net magnetic force on the rectangular loop? L = 0.500 m, d1 = 4.00 cm, d2 = 8.00 cm. 9.11×10−4 9.02×10−5 5.13×10−4 4.02×10−5 8.20×10−4 7.50×10−5 1.50×10−4 1.11×10−5 2.25×10−4 2.33×10−5
Solution
0 0

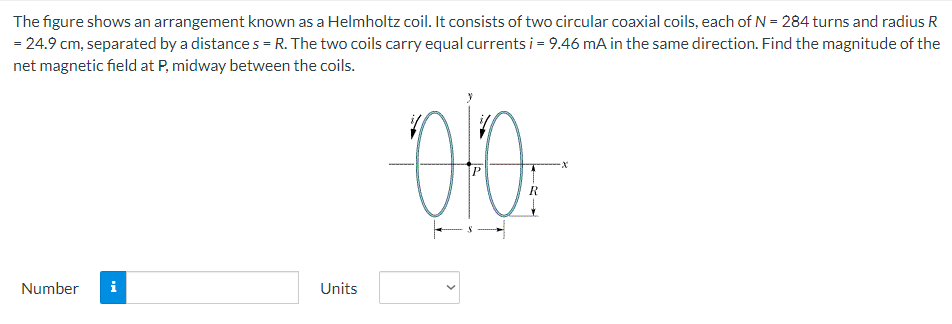

The figure shows an arrangement known as a Helmholtz coil. It consists of two circular coaxial coils, each of N = 284 turns and radius R = 24.9 cm, separated by a distance s = R. The two coils carry equal currents i = 9.46 mA in the same direction. Find the magnitude of the net magnetic field at P, midway between the coils. Number Units
