The figure shows an arrangement known as a Helmholtz coil. It consists of two circular coaxial coils, each of N = 284 turns and radius R = 24.9 cm, separated by a distance s = R. The two coils carry equal currents i = 9.46 mA in the same direction. Find the magnitude of the net magnetic field at P, midway between the coils. Number Units

The figure shows an arrangement known as a Helmholtz coil. It consists of two circular coaxial coils, each of N = 284 turns and radius R = 24.9 cm, separated by a distance s = R. The two coils carry equal currents i = 9.46 mA in the same direction. Find the magnitude of the net magnetic field at P, midway between the coils. Number Units

Image text
The figure shows an arrangement known as a Helmholtz coil. It consists of two circular coaxial coils, each of N = 284 turns and radius R = 24.9 c m , separated by a distance s = R . The two coils carry equal currents i = 9.46 m A in the same direction. Find the magnitude of the net magnetic field at P , midway between the coils.
Number i Units ◻

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

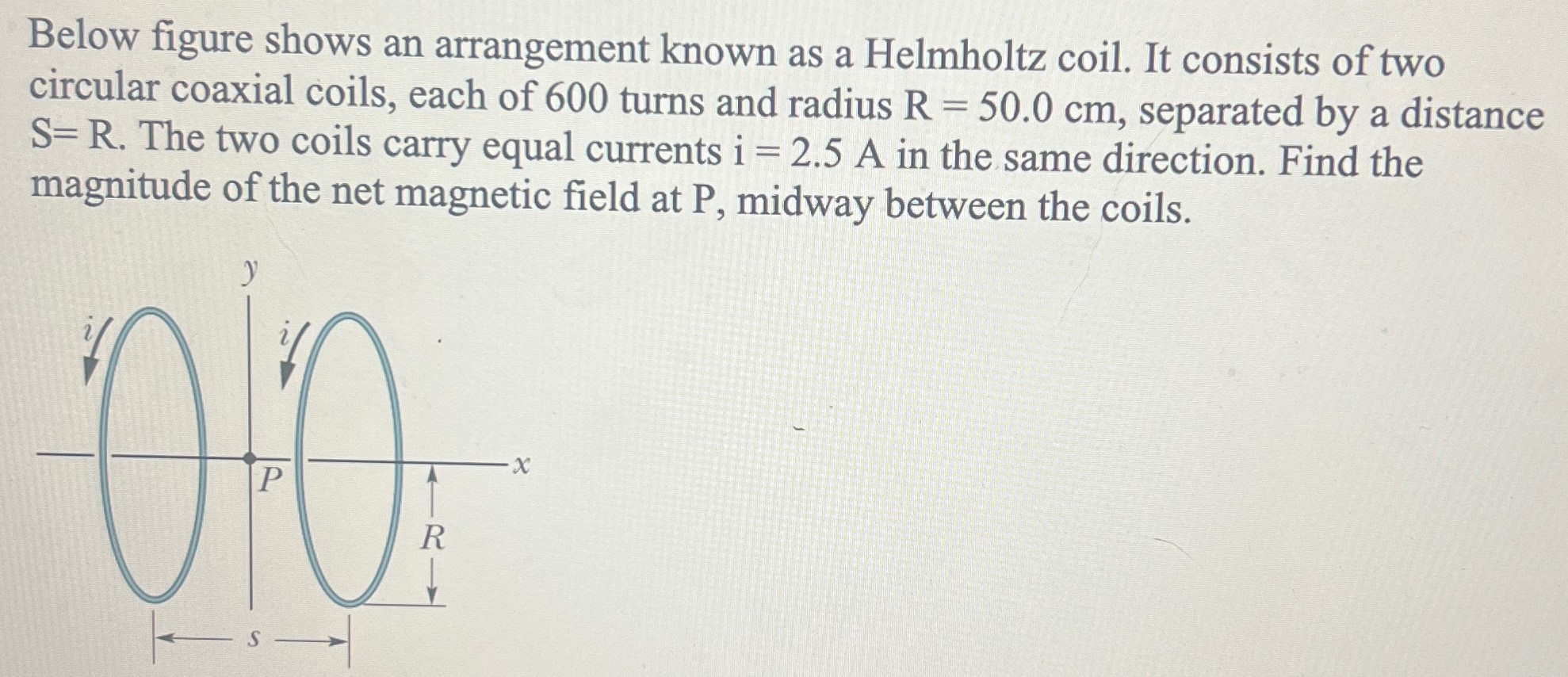

Below figure shows an arrangement known as a Helmholtz coil. It consists of two circular coaxial coils, each of 600 turns and radius R = 50.0 cm, separated by a distance S = R. The two coils carry equal currents i = 2.5 A in the same direction. Find the magnitude of the net magnetic field at P, midway between the coils.
