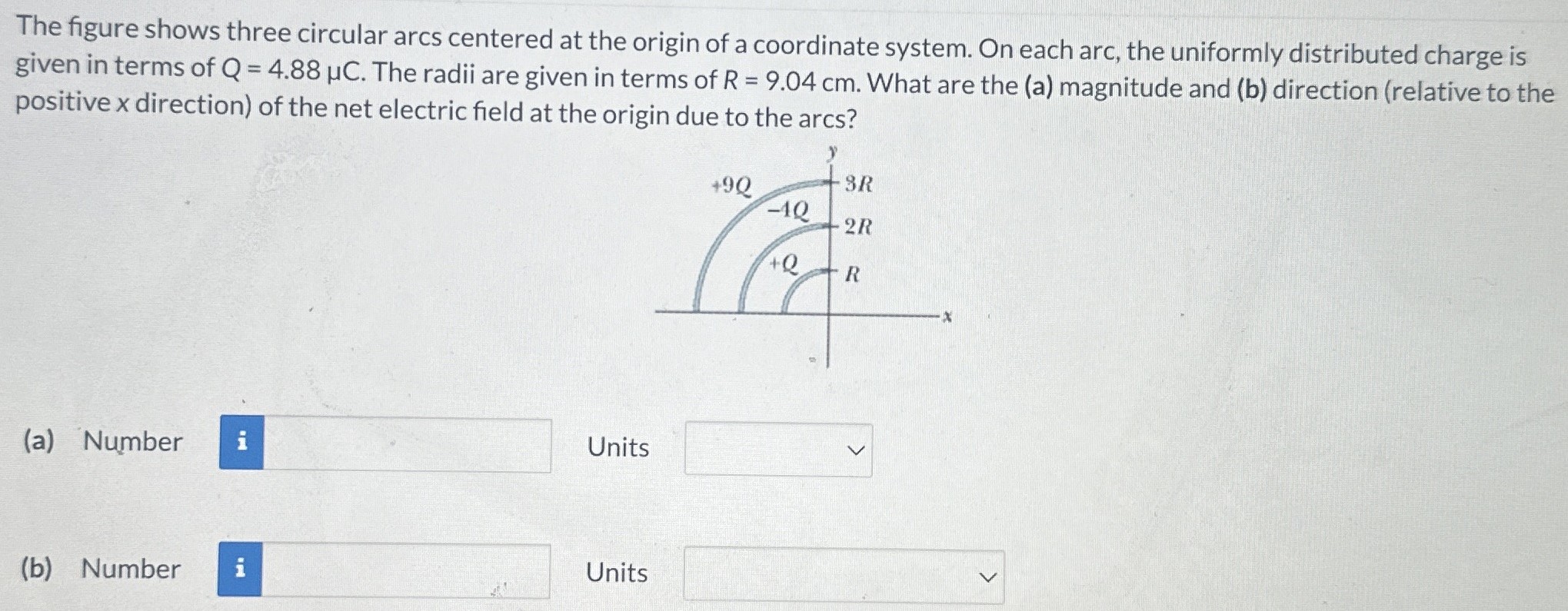

The figure shows three circular arcs centered at the origin of a coordinate system. On each arc, the uniformly distributed charge is given in terms of Q = 4.88 μC. The radii are given in terms of R = 9.04 cm. What are the (a) magnitude and (b) direction (relative to the positive x direction) of the net electric field at the origin due to the arcs? (a) Number Units (b) Number Units

The figure shows three circular arcs centered at the origin of a coordinate system. On each arc, the uniformly distributed charge is given in terms of Q = 4.88 μC. The radii are given in terms of R = 9.04 cm. What are the (a) magnitude and (b) direction (relative to the positive x direction) of the net electric field at the origin due to the arcs? (a) Number Units (b) Number Units

Image text
The figure shows three circular arcs centered at the origin of a coordinate system. On each arc, the uniformly distributed charge is given in terms of Q = 4.88 μ C . The radii are given in terms of R = 9.04 cm . What are the (a) magnitude and (b) direction (relative to the positive x direction) of the net electric field at the origin due to the arcs? (a) Number i Units ◻ (b) Number i Units ◻

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

A thin nonconducting rod with a uniform distribution of positive charge Q is bent into a circle of radius R (see the figure). The central perpendicular axis through the ring is a z axis, with the origin at the center of the ring. What is the magnitude of the electric field due to the rod at (a) z = 0 and (b) z = ∞? (c) In terms of R, at what positive value of z is that magnitude maximum? (d) If R = 2.00 cm and Q = 4.02 μC, what is the maximum magnitude? (a) Number Units (b) Number Units (c) Number Units (d) Number Units
Solution
0 0

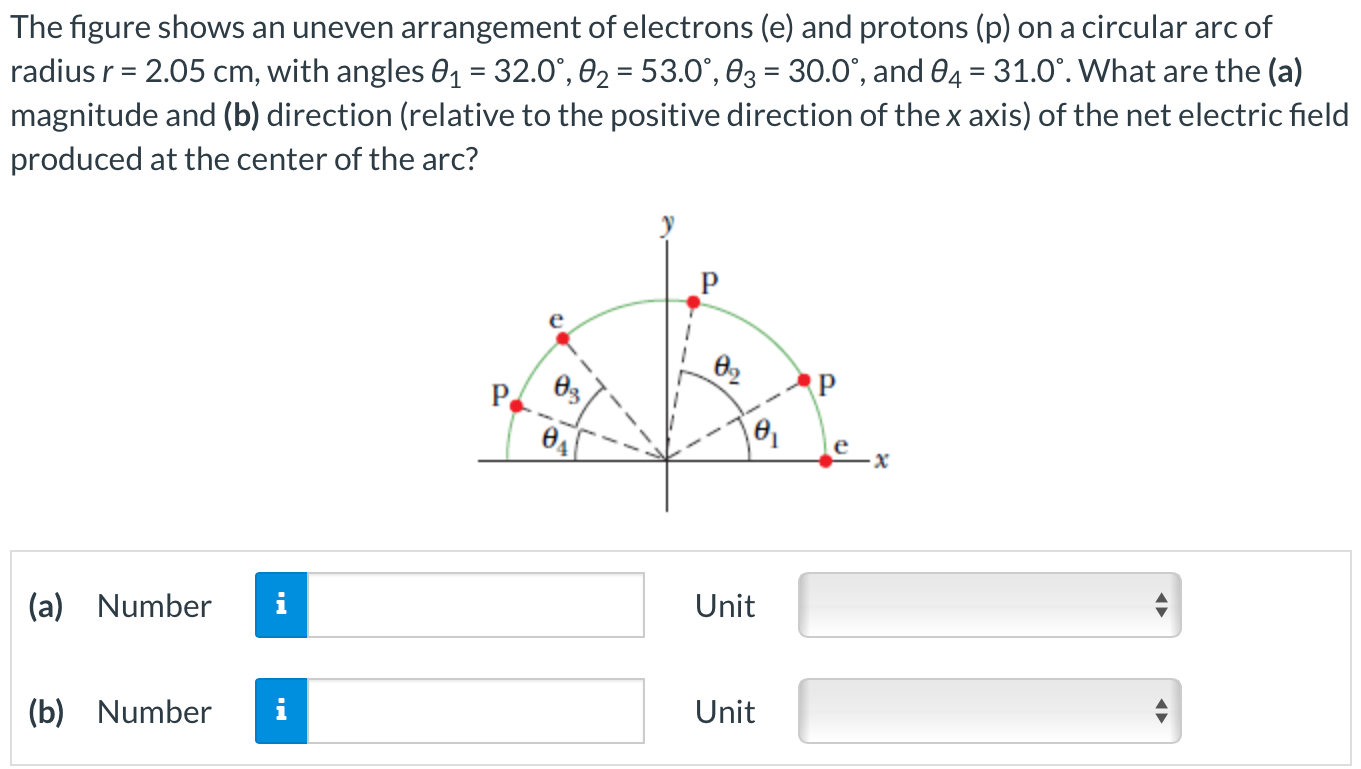

The figure shows an uneven arrangement of electrons (e) and protons (p) on a circular arc of radius r = 2.05 cm, with angles θ1 = 32.0∘, θ2 = 53.0∘, θ3 = 30.0∘, and θ4 = 31.0∘. What are the (a) magnitude and (b) direction (relative to the positive direction of the x axis) of the net electric field produced at the center of the arc? (a) Number Unit (b) Number Unit
