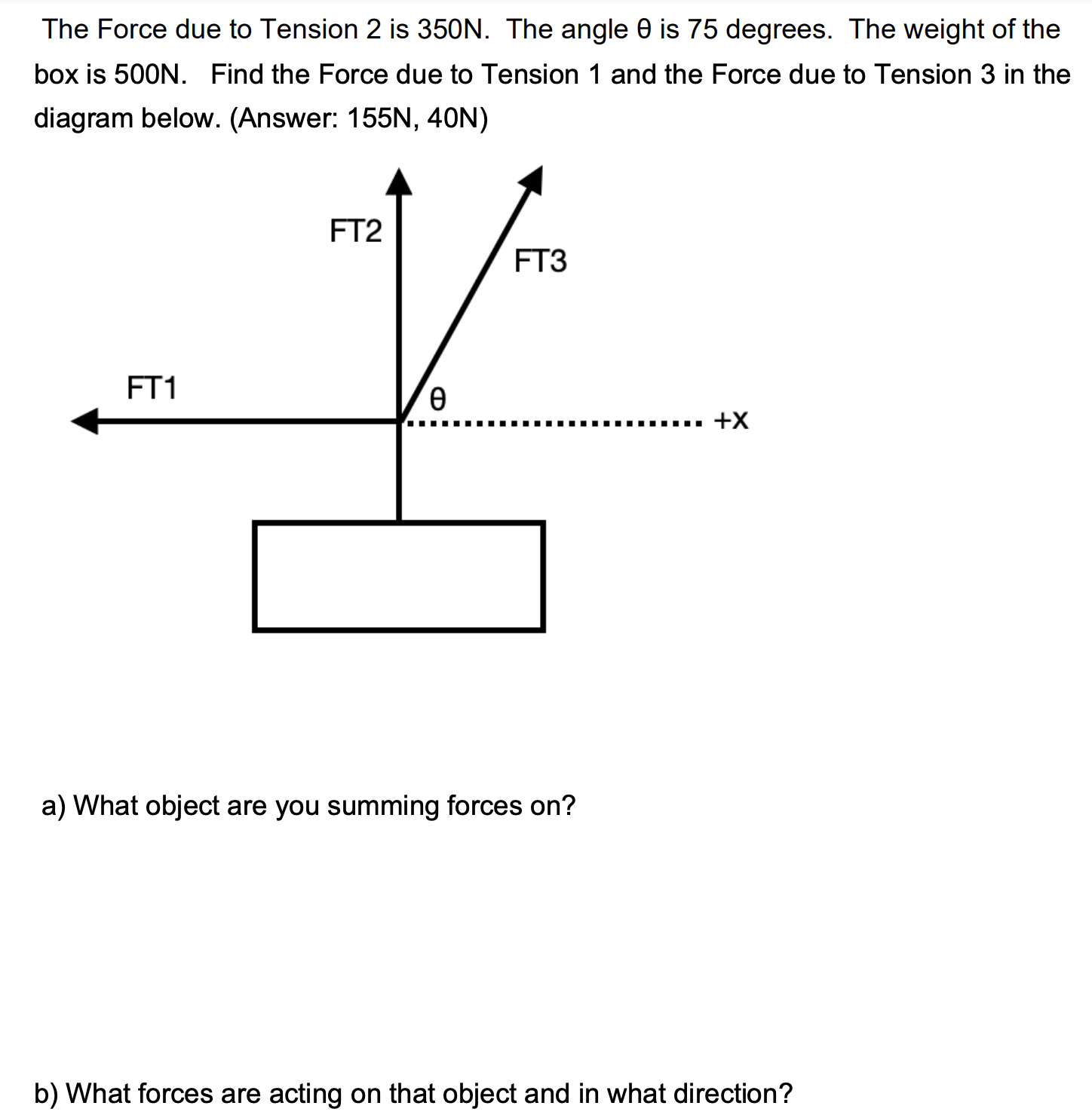

The Force due to Tension 2 is 350 N. The angle θ is 75 degrees. The weight of the box is 500. Find the Force due to Tension 1 and the Force due to Tension 3 in the diagram below. (Answer: 155 N, 40 N) a) What object are you summing forces on? b) What forces are acting on that object and in what direction?

The Force due to Tension 2 is 350 N. The angle θ is 75 degrees. The weight of the box is 500. Find the Force due to Tension 1 and the Force due to Tension 3 in the diagram below. (Answer: 155 N, 40 N) a) What object are you summing forces on? b) What forces are acting on that object and in what direction?

Image text
The Force due to Tension 2 is 350 N . The angle θ is 75 degrees. The weight of the box is 500 . Find the Force due to Tension 1 and the Force due to Tension 3 in the diagram below. (Answer: 155N, 40N) a) What object are you summing forces on? b) What forces are acting on that object and in what direction?

Detailed Answer

0 0
