The springs shown in the figure have spring constants of k = 10 N/m. When a current is established through the wire as shown, the magnetic force on the wire causes it to compress the springs by 1.0 cm. What is the current, I For full credit, you will need to include a free-body diagram in your answer.

The springs shown in the figure have spring constants of k = 10 N/m. When a current is established through the wire as shown, the magnetic force on the wire causes it to compress the springs by 1.0 cm. What is the current, I For full credit, you will need to include a free-body diagram in your answer.

Image text

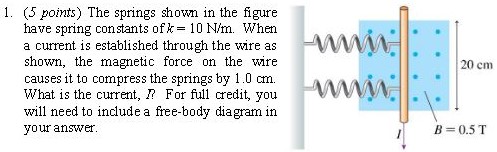

  1. (5 points) The springs shown in the figure have spring constants of k = 10 N / m . When a current is established through the wire as shown, the magnetic force on the wire causes it to compress the springs by 1.0 c m . What is the current, ?? For full credit, you will need to include a free-body diagram in your answer.
