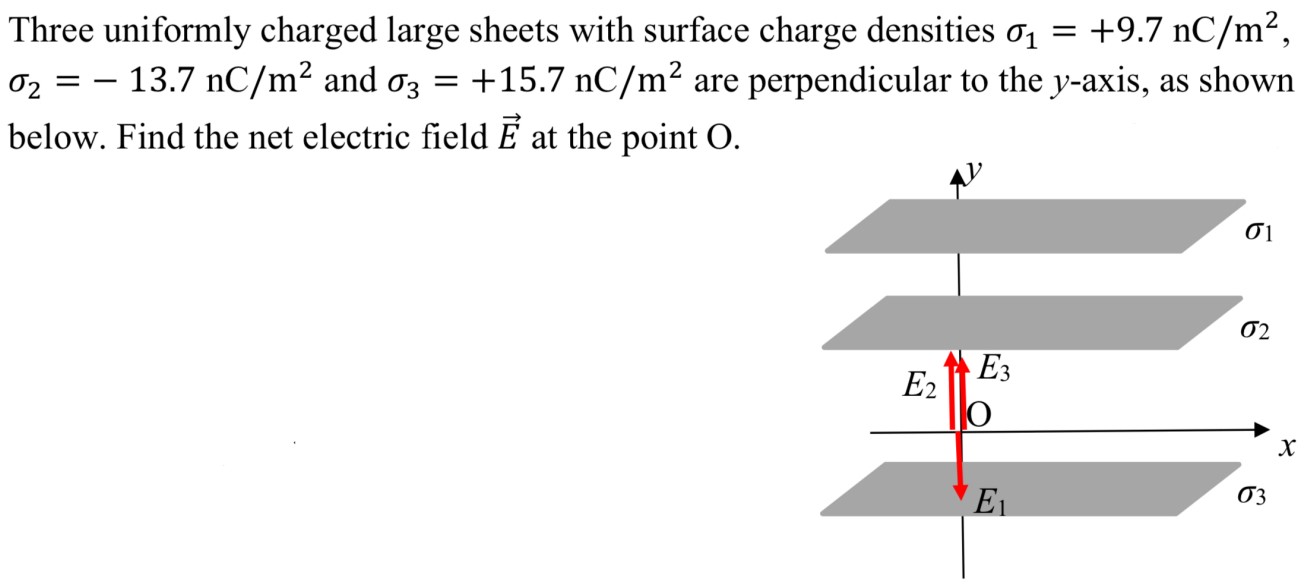

Three uniformly charged large sheets with surface charge densities σ1 = +9.7 nC/m2, σ2 = −13.7 nC/m2 and σ3 = +15.7 nC/m2 are perpendicular to the y-axis, as shown below. Find the net electric field E→ at the point O.

Three uniformly charged large sheets with surface charge densities σ1 = +9.7 nC/m2, σ2 = −13.7 nC/m2 and σ3 = +15.7 nC/m2 are perpendicular to the y-axis, as shown below. Find the net electric field E→ at the point O.

Image text
Three uniformly charged large sheets with surface charge densities σ 1 = + 9.7 nC / m 2 , σ 2 = − 13.7 nC / m 2 and σ 3 = + 15.7 nC / m 2 are perpendicular to the y -axis, as shown below. Find the net electric field E → at the point O .

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

Two very large, nonconducting plastic sheets, each 10.0 cm thick, carry uniform charge densities σ1, σ2, σ3 and σ4 on their surfaces, as shown in the following figure (Figure 1). These surface charge densities have the values σ1 = −6.60 μC/m2, σ2 = 5.00 μC/m2, σ3 = 1.60 μC/m2, and σ4 = 4.00 μC/m2. Use Gauss's law to find the magnitude and direction of the electric field at the following points, far from the edges of these sheets. Figure 1 of 1 Part A What is the magnitude of the electric field at point A, 5.00 cm from the left face of the left-hand sheet? Express your answer with the appropriate units. Submit Request Answer Part B What is the direction of the electric field at point A, 5.00 cm from the left face of the left-hand sheet? to the left. to the right. upwards. downwards. Part C What is the magnitude of the electric field at point B, 1.25 cm from the inner surface of the right-hand sheet? Express your answer with the appropriate units. Submit Request Answer Part D What is the direction of the electric field at point B, 1.25 cm from the inner surface of the right-hand sheet? to the left. to the right. upwards. downwards. Part E What is the magnitude of the electric field at point C, in the middle of the right-hand sheet? Express your answer with the appropriate units. Submit Request Answer Part F What is the direction of the electric field at point C, in the middle of the right-hand sheet? to the left. to the right. upwards. downwards. Submit Request AnswerTwo very large, nonconducting plastic sheets, each 10.0 cm thick, carry uniform charge densities σ1, σ2, σ3 and σ4 on their surfaces, as shown in the following figure (Figure 1). These surface charge densities have the values σ1 = −6.60 μC/m2, σ2 = 5.00 μC/m2, σ3 = 1.60 μC/m2, and σ4 = 4.00 μC/m2. Use Gauss's law to find the magnitude and direction of the electric field at the following points, far from the edges of these sheets. Figure 1 of 1 Part A What is the magnitude of the electric field at point A, 5.00 cm from the left face of the left-hand sheet? Express your answer with the appropriate units. Submit Request Answer Part B What is the direction of the electric field at point A, 5.00 cm from the left face of the left-hand sheet? to the left. to the right. upwards. downwards. Part C What is the magnitude of the electric field at point B, 1.25 cm from the inner surface of the right-hand sheet? Express your answer with the appropriate units. Submit Request Answer Part D What is the direction of the electric field at point B, 1.25 cm from the inner surface of the right-hand sheet? to the left. to the right. upwards. downwards. Part E What is the magnitude of the electric field at point C, in the middle of the right-hand sheet? Express your answer with the appropriate units. Submit Request Answer Part F What is the direction of the electric field at point C, in the middle of the right-hand sheet? to the left. to the right. upwards. downwards. Submit Request AnswerTwo very large, nonconducting plastic sheets, each 10.0 cm thick, carry uniform charge densities σ1, σ2, σ3 and σ4 on their surfaces, as shown in the following figure (Figure 1). These surface charge densities have the values σ1 = −6.60 μC/m2, σ2 = 5.00 μC/m2, σ3 = 1.60 μC/m2, and σ4 = 4.00 μC/m2. Use Gauss's law to find the magnitude and direction of the electric field at the following points, far from the edges of these sheets. Figure 1 of 1 Part A What is the magnitude of the electric field at point A, 5.00 cm from the left face of the left-hand sheet? Express your answer with the appropriate units. Submit Request Answer Part B What is the direction of the electric field at point A, 5.00 cm from the left face of the left-hand sheet? to the left. to the right. upwards. downwards. Part C What is the magnitude of the electric field at point B, 1.25 cm from the inner surface of the right-hand sheet? Express your answer with the appropriate units. Submit Request Answer Part D What is the direction of the electric field at point B, 1.25 cm from the inner surface of the right-hand sheet? to the left. to the right. upwards. downwards. Part E What is the magnitude of the electric field at point C, in the middle of the right-hand sheet? Express your answer with the appropriate units. Submit Request Answer Part F What is the direction of the electric field at point C, in the middle of the right-hand sheet? to the left. to the right. upwards. downwards. Submit Request Answer
Solution
3 0

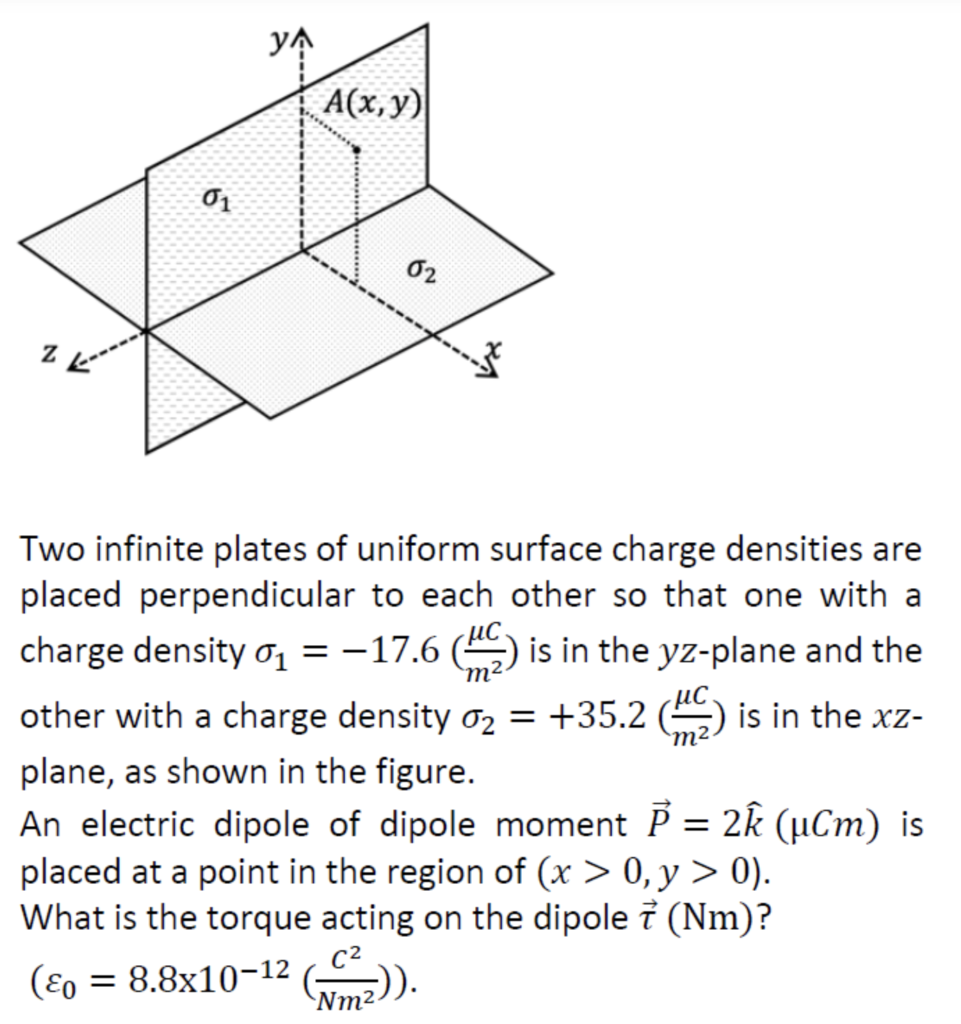

Two infinite plates of uniform surface charge densities are placed perpendicular to each other so that one with a charge density σ1 = −17.6 (μCm2) is in the yz-plane and the other with a charge density σ2 = +35.2 (μCm2) is in the xz− plane, as shown in the figure. An electric dipole of dipole moment P→ = 2 k^(μCm) is placed at a point in the region of (x>0, y>0). What is the torque acting on the dipole τ→(Nm) ? (ε0 = 8.8×10−12(C2 Nm2)).
