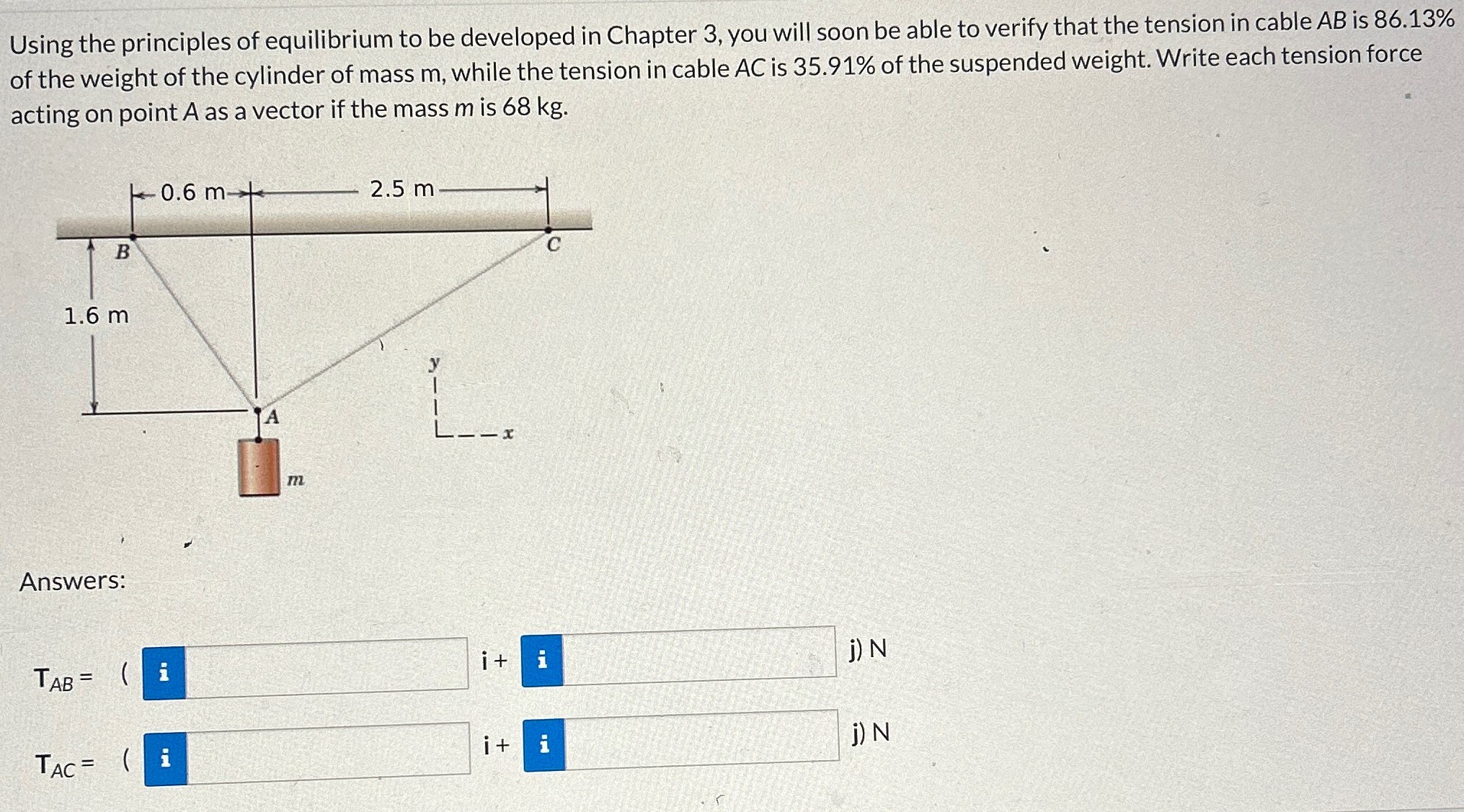

Using the principles of equilibrium to be developed in Chapter 3 , you will soon be able to verify that the tension in cable AB is 86.13% of the weight of the cylinder of mass m, while the tension in cable AC is 35.91% of the suspended weight. Write each tension force acting on point A as a vector if the mass m is 68 kg. Answers: TAB = ( i + ј) N TAC = ( i + ј) N

Using the principles of equilibrium to be developed in Chapter 3 , you will soon be able to verify that the tension in cable AB is 86.13% of the weight of the cylinder of mass m, while the tension in cable AC is 35.91% of the suspended weight. Write each tension force acting on point A as a vector if the mass m is 68 kg. Answers: TAB = ( i + ј) N TAC = ( i + ј) N

Image text
Using the principles of equilibrium to be developed in Chapter 3 , you will soon be able to verify that the tension in cable A B is 86.13 % of the weight of the cylinder of mass m , while the tension in cable A C is 35.91 % of the suspended weight. Write each tension force acting on point A as a vector if the mass m is 68 k g .
Answers:
T A B = 1 i i + i ј) N T A C = 1 i + i ј) N

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

A uniform 50−kg scaffold of length 7.0 m is supported by two light cables, as shown below. A 62−kg painter stands 1.0 m from the left end of the scaffold, and his paint bucket is 1.5 m from the right end. If the tension in the left cable is twice that in the right cable, find the tensions in the cables and the mass of the bucket. As a hint, you have three unknowns, T1 (left cable), T2 (right cable), and the bucket's mass/weight. One way to do this is to set the axis at the bucket, so that the weight of the bucket is not part of the net torque equation (because the lever arm, the distance from the axis, is zero). Then use the fact that the net torque needs to be equal to zero for everything to be balanced. You should be able to solve for T1 and T2. Then, do a new problem where you sum all of the "y" forces, and equate them all to zero (that should allow you to calculate the mass or weight of the bucket). mbucket = kg Tleft = N Tright = N
Solution
0 0

A load of bricks with mass m1 = 17.0 kg hangs from one end of a rope that passes over a small, frictionless pulley. A counterweight of mass m2 = 31.0 kg is suspended from the other end of the rope, as shown in (Figure 1). The system is released from rest. For related problem-solving tips and strategies, you may want to view a Video Tutor Solution of Two bodies with the same magnitude of acceleration. Part A Draw a free-body diagram for the load of bricks. Draw the vectors starting at the black dot. The location, orientation, and relative length of the vectors will be graded. The exact length of the vectors will not be graded. No elements selected Select the elements from the list and add them to the canvas setting the appropriate attributes Draw the vectors starting at the black dot. The location, orientation, and relative length of the vectors will be graded. The exact length of the vectors will not be graded. No elements selected Select the elements from the list and add them to the canvas setting the appropriate attributes. Part C What is the magnitude of the upward acceleration of the load of bricks? Express your answer with the appropriate units. Part D What is the tension in the rope while the load is moving? Express your answer with the appropriate units. Part E How does the tension compare to the weight of the load of bricks? To the weight of the counterweight? Drag the terms on the left to the appropriate blanks on the right to complete the sentence. Reset Help smaller than The tension in the rope is the greater than weight of the load of bricks and the weight of the counterweigh. A load of bricks with mass m1 = 17.0 kg hangs from one end of a rope that passes over a small, frictionless pulley. A counterweight of mass m2 = 31.0 kg is suspended from the other end of the rope, as shown in (Figure 1). The system is released from rest. For related problem-solving tips and strategies, you may want to view a Video Tutor Solution of Two bodies with the same magnitude of acceleration. Part A Draw a free-body diagram for the load of bricks. Draw the vectors starting at the black dot. The location, orientation, and relative length of the vectors will be graded. The exact length of the vectors will not be graded. No elements selected Select the elements from the list and add them to the canvas setting the appropriate attributes Draw the vectors starting at the black dot. The location, orientation, and relative length of the vectors will be graded. The exact length of the vectors will not be graded. No elements selected Select the elements from the list and add them to the canvas setting the appropriate attributes. Part C What is the magnitude of the upward acceleration of the load of bricks? Express your answer with the appropriate units. Part D What is the tension in the rope while the load is moving? Express your answer with the appropriate units. Part E How does the tension compare to the weight of the load of bricks? To the weight of the counterweight? Drag the terms on the left to the appropriate blanks on the right to complete the sentence. Reset Help smaller than The tension in the rope is the greater than weight of the load of bricks and the weight of the counterweigh. A load of bricks with mass m1 = 17.0 kg hangs from one end of a rope that passes over a small, frictionless pulley. A counterweight of mass m2 = 31.0 kg is suspended from the other end of the rope, as shown in (Figure 1). The system is released from rest. For related problem-solving tips and strategies, you may want to view a Video Tutor Solution of Two bodies with the same magnitude of acceleration. Part A Draw a free-body diagram for the load of bricks. Draw the vectors starting at the black dot. The location, orientation, and relative length of the vectors will be graded. The exact length of the vectors will not be graded. No elements selected Select the elements from the list and add them to the canvas setting the appropriate attributes Draw the vectors starting at the black dot. The location, orientation, and relative length of the vectors will be graded. The exact length of the vectors will not be graded. No elements selected Select the elements from the list and add them to the canvas setting the appropriate attributes. Part C What is the magnitude of the upward acceleration of the load of bricks? Express your answer with the appropriate units. Part D What is the tension in the rope while the load is moving? Express your answer with the appropriate units. Part E How does the tension compare to the weight of the load of bricks? To the weight of the counterweight? Drag the terms on the left to the appropriate blanks on the right to complete the sentence. Reset Help smaller than The tension in the rope is the greater than weight of the load of bricks and the weight of the counterweigh. A load of bricks with mass m1 = 17.0 kg hangs from one end of a rope that passes over a small, frictionless pulley. A counterweight of mass m2 = 31.0 kg is suspended from the other end of the rope, as shown in (Figure 1). The system is released from rest. For related problem-solving tips and strategies, you may want to view a Video Tutor Solution of Two bodies with the same magnitude of acceleration. Part A Draw a free-body diagram for the load of bricks. Draw the vectors starting at the black dot. The location, orientation, and relative length of the vectors will be graded. The exact length of the vectors will not be graded. No elements selected Select the elements from the list and add them to the canvas setting the appropriate attributes Draw the vectors starting at the black dot. The location, orientation, and relative length of the vectors will be graded. The exact length of the vectors will not be graded. No elements selected Select the elements from the list and add them to the canvas setting the appropriate attributes. Part C What is the magnitude of the upward acceleration of the load of bricks? Express your answer with the appropriate units. Part D What is the tension in the rope while the load is moving? Express your answer with the appropriate units. Part E How does the tension compare to the weight of the load of bricks? To the weight of the counterweight? Drag the terms on the left to the appropriate blanks on the right to complete the sentence. Reset Help smaller than The tension in the rope is the greater than weight of the load of bricks and the weight of the counterweigh. A load of bricks with mass m1 = 17.0 kg hangs from one end of a rope that passes over a small, frictionless pulley. A counterweight of mass m2 = 31.0 kg is suspended from the other end of the rope, as shown in (Figure 1). The system is released from rest. For related problem-solving tips and strategies, you may want to view a Video Tutor Solution of Two bodies with the same magnitude of acceleration. Part A Draw a free-body diagram for the load of bricks. Draw the vectors starting at the black dot. The location, orientation, and relative length of the vectors will be graded. The exact length of the vectors will not be graded. No elements selected Select the elements from the list and add them to the canvas setting the appropriate attributes Draw the vectors starting at the black dot. The location, orientation, and relative length of the vectors will be graded. The exact length of the vectors will not be graded. No elements selected Select the elements from the list and add them to the canvas setting the appropriate attributes. Part C What is the magnitude of the upward acceleration of the load of bricks? Express your answer with the appropriate units. Part D What is the tension in the rope while the load is moving? Express your answer with the appropriate units. Part E How does the tension compare to the weight of the load of bricks? To the weight of the counterweight? Drag the terms on the left to the appropriate blanks on the right to complete the sentence. Reset Help smaller than The tension in the rope is the greater than weight of the load of bricks and the weight of the counterweigh.

Solution
0 0

A child of mass m is sitting at rest on a swing of length L. Their parent pulls them back making an angle of θ with the vertical as shown in the diagram. The parent uses a force that is perfectly horizontal. a) Find an expression for the force required to pull the child back as a function of the angle made by the swing. θ, m, L, and any fundamental can be in your answer. b) (Calculus version) i. Set up but do not solve an integral that could be used to calculate the work done on the child. ii. Now execute the integral showing that the work done will equal the resulting increase in potential energy. c) (Non calculus version) i. Find an expression for the height of the child above their lowest position as a function of θ and L. ii. Find an expression for the potential energy of the child in terms of m, θ, L, and any fundamental constants. d) The child is released and swings down to the lowest position. i. What is the tension in the cable the instant they are released? (Hint: their velocity the instant they are released is zero, but the net force is unbalanced. ) ii. What is the acceleration of the child the instant the parent releases them? iii. What is the speed of the child at the bottom of their swing? iv. What is the tension in the cable at the bottom of their swing?
