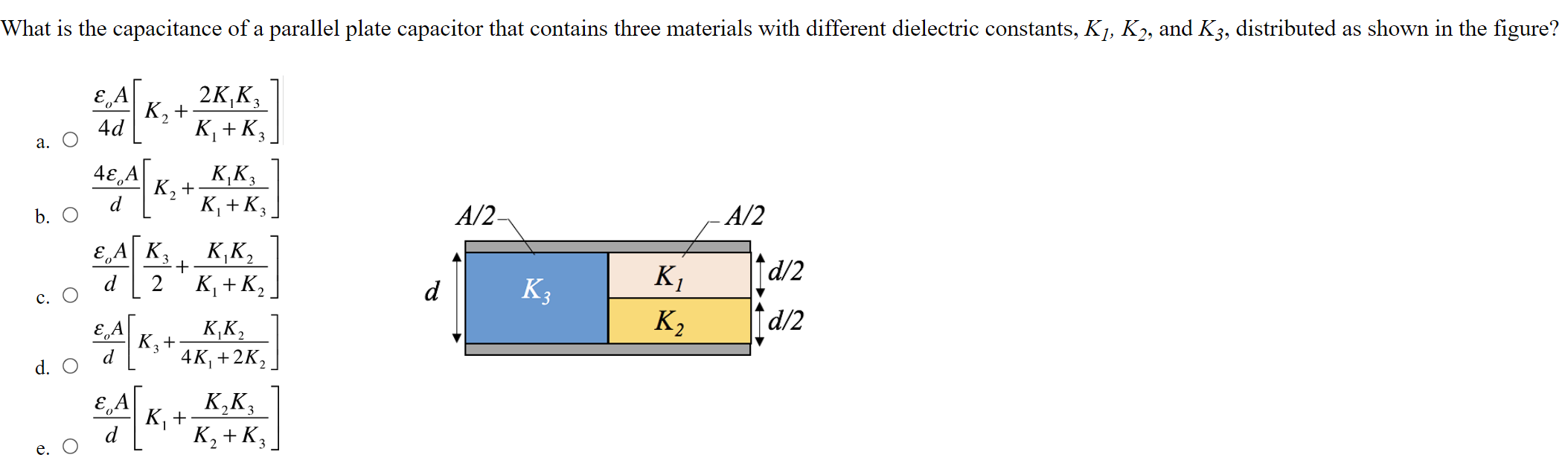

What is the capacitance of a parallel plate capacitor that contains three materials with different dielectric constants, K1, K2, and K3, distributed as shown in the figure? a. εoA4 d[K2+2 K1 K3 K1+K3] b. 4 εoAd[K2+K1 K3 K1+K3] c. O εoAd[K32+K1 K2 K1+K2] d. εoAd[K3+K1 K24 K1+2 K2] e. εoAd[K1+K2 K3 K2+K3]

What is the capacitance of a parallel plate capacitor that contains three materials with different dielectric constants, K1, K2, and K3, distributed as shown in the figure? a. εoA4 d[K2+2 K1 K3 K1+K3] b. 4 εoAd[K2+K1 K3 K1+K3] c. O εoAd[K32+K1 K2 K1+K2] d. εoAd[K3+K1 K24 K1+2 K2] e. εoAd[K1+K2 K3 K2+K3]

Image text
What is the capacitance of a parallel plate capacitor that contains three materials with different dielectric constants, K 1 , K 2 , and K 3 , distributed as shown in the figure? a. ε o A 4 d [ K 2 + 2 K 1 K 3 K 1 + K 3 ] b. 4 ε o A d [ K 2 + K 1 K 3 K 1 + K 3 ] c. O ε o A d [ K 3 2 + K 1 K 2 K 1 + K 2 ] d. ε o A d [ K 3 + K 1 K 2 4 K 1 + 2 K 2 ] e. ε o A d [ K 1 + K 2 K 3 K 2 + K 3 ]

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

A parallel-plate capacitor with circular plates and a capacitance of 11.7 μF is connected to a battery which provides a voltage of 12.2 V. For related problem-solving tips and strategies, you may want to view a Video Tutor Solution of Properties of a parallel-plate capacitor. Part A What is the charge on each plate? Express your answer with the appropriate units. Q = Part B How much charge would be on the plates if their separation were doubled while the capacitor remained connected to the battery? Express your answer with the appropriate units. Q = Value Units Submit Request Answer Part C How much charge would be on the plates if the capacitor were connected to the battery after the radius of each plate was doubled without changing their separation? Express your answer with the appropriate units.

A parallel-plate capacitor with circular plates and a capacitance of 11.7 μF is connected to a battery which provides a voltage of 12.2 V. For related problem-solving tips and strategies, you may want to view a Video Tutor Solution of Properties of a parallel-plate capacitor. Part A What is the charge on each plate? Express your answer with the appropriate units. Q = Part B How much charge would be on the plates if their separation were doubled while the capacitor remained connected to the battery? Express your answer with the appropriate units. Q = Value Units Submit Request Answer Part C How much charge would be on the plates if the capacitor were connected to the battery after the radius of each plate was doubled without changing their separation? Express your answer with the appropriate units.
Solution
0 0

The dielectric to be used in a parallel-plate capacitor has a dielectric constant of 4.10 and a dielectric strength of 1.50×107 V/m. The capacitor is to have a capacitance of 1.50×10−9 F and must be able to withstand a maximum potential difference of 5.90×103 V. For related problem-solving tips and strategies, you may want to view a Video Tutor Solution of Energy density, both before and after the. Part A What is the minimum area the plates of the capacitor may have? Express your answer in meters squared.

Solution
0 0

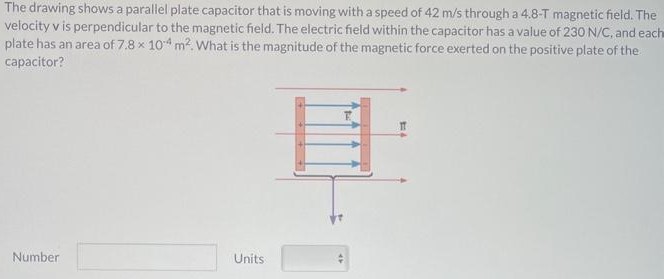

The drawing shows a parallel plate capacitor that is moving with a speed of 42 m/s through a 4.8−T magnetic field. The velocity v is perpendicular to the magnetic field. The electric field within the capacitor has a value of 230 N/C, and each plate has an area of 7.8×10−4 m2. What is the magnitude of the magnetic force exerted on the positive plate of the capacitor? Number Units
