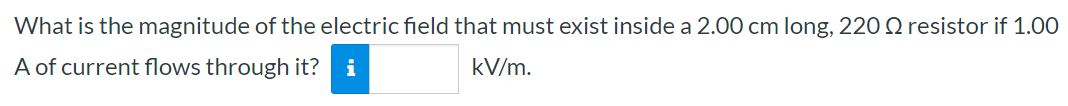

What is the magnitude of the electric field that must exist inside a 2.00 cm long, 220 Ω resistor if 1.00 A of current flows through it? kV/m.

What is the magnitude of the electric field that must exist inside a 2.00 cm long, 220 Ω resistor if 1.00 A of current flows through it? kV/m.

Image text
What is the magnitude of the electric field that must exist inside a 2.00 c m long, 220 Ω resistor if 1.00 A of current flows through it? i k V / m .
