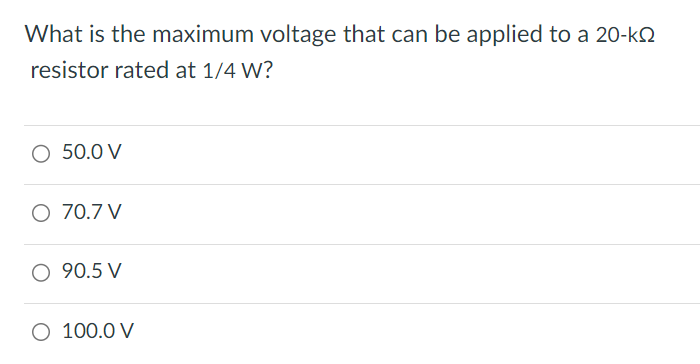

What is the maximum voltage that can be applied to a 20-kΩ resistor rated at 1/4 W? 50.0 V 70.7 V 90.5 V 100.0 V
