What is the tension in the rope of Figure 4? Ignore the friction between the man's hands and the rope. Consider that the pulley is ideal, and the rope is massless. (To get full marks you must include free-body diagrams)

What is the tension in the rope of Figure 4? Ignore the friction between the man's hands and the rope. Consider that the pulley is ideal, and the rope is massless. (To get full marks you must include free-body diagrams)

Image text

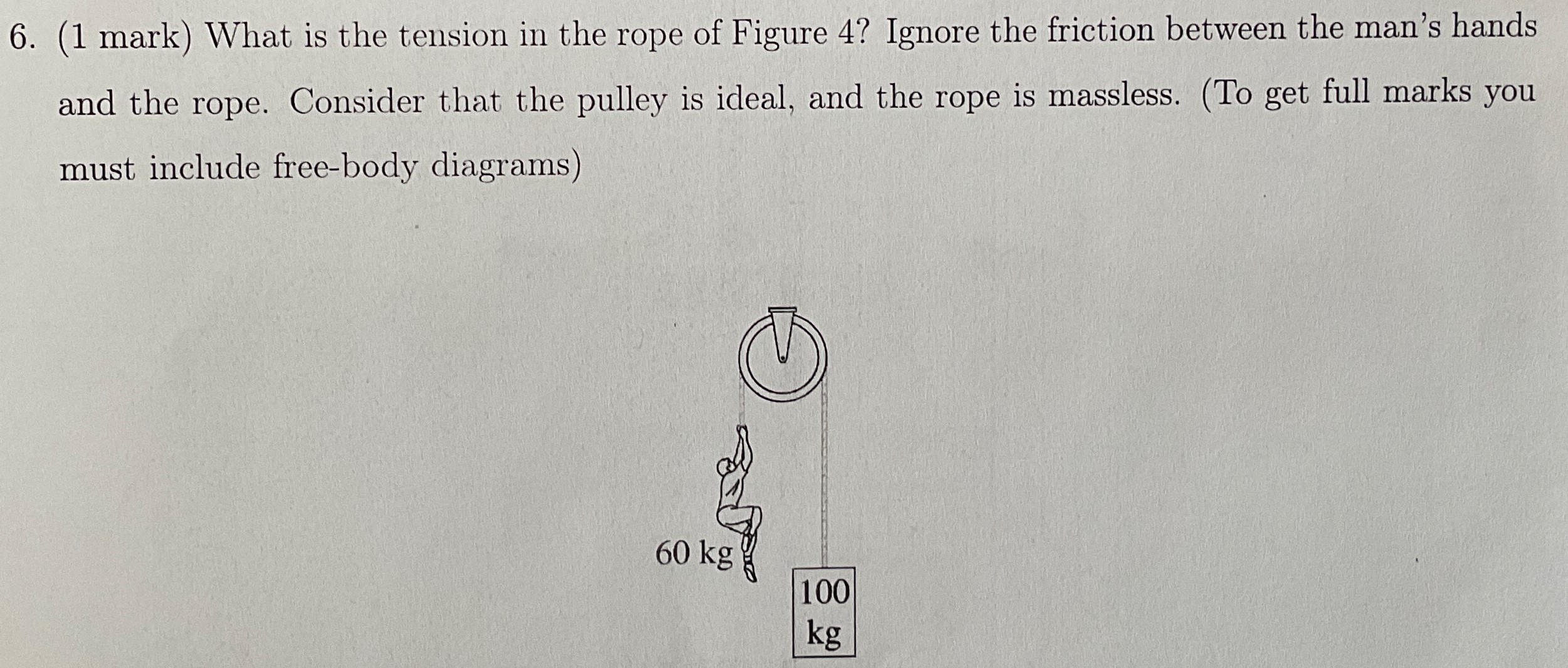

  1. (1 mark) What is the tension in the rope of Figure 4? Ignore the friction between the man's hands and the rope. Consider that the pulley is ideal, and the rope is massless. (To get full marks you must include free-body diagrams)

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

A load of bricks with mass m1 = 17.0 kg hangs from one end of a rope that passes over a small, frictionless pulley. A counterweight of mass m2 = 31.0 kg is suspended from the other end of the rope, as shown in (Figure 1). The system is released from rest. For related problem-solving tips and strategies, you may want to view a Video Tutor Solution of Two bodies with the same magnitude of acceleration. Part A Draw a free-body diagram for the load of bricks. Draw the vectors starting at the black dot. The location, orientation, and relative length of the vectors will be graded. The exact length of the vectors will not be graded. No elements selected Select the elements from the list and add them to the canvas setting the appropriate attributes Draw the vectors starting at the black dot. The location, orientation, and relative length of the vectors will be graded. The exact length of the vectors will not be graded. No elements selected Select the elements from the list and add them to the canvas setting the appropriate attributes. Part C What is the magnitude of the upward acceleration of the load of bricks? Express your answer with the appropriate units. Part D What is the tension in the rope while the load is moving? Express your answer with the appropriate units. Part E How does the tension compare to the weight of the load of bricks? To the weight of the counterweight? Drag the terms on the left to the appropriate blanks on the right to complete the sentence. Reset Help smaller than The tension in the rope is the greater than weight of the load of bricks and the weight of the counterweigh. A load of bricks with mass m1 = 17.0 kg hangs from one end of a rope that passes over a small, frictionless pulley. A counterweight of mass m2 = 31.0 kg is suspended from the other end of the rope, as shown in (Figure 1). The system is released from rest. For related problem-solving tips and strategies, you may want to view a Video Tutor Solution of Two bodies with the same magnitude of acceleration. Part A Draw a free-body diagram for the load of bricks. Draw the vectors starting at the black dot. The location, orientation, and relative length of the vectors will be graded. The exact length of the vectors will not be graded. No elements selected Select the elements from the list and add them to the canvas setting the appropriate attributes Draw the vectors starting at the black dot. The location, orientation, and relative length of the vectors will be graded. The exact length of the vectors will not be graded. No elements selected Select the elements from the list and add them to the canvas setting the appropriate attributes. Part C What is the magnitude of the upward acceleration of the load of bricks? Express your answer with the appropriate units. Part D What is the tension in the rope while the load is moving? Express your answer with the appropriate units. Part E How does the tension compare to the weight of the load of bricks? To the weight of the counterweight? Drag the terms on the left to the appropriate blanks on the right to complete the sentence. Reset Help smaller than The tension in the rope is the greater than weight of the load of bricks and the weight of the counterweigh. A load of bricks with mass m1 = 17.0 kg hangs from one end of a rope that passes over a small, frictionless pulley. A counterweight of mass m2 = 31.0 kg is suspended from the other end of the rope, as shown in (Figure 1). The system is released from rest. For related problem-solving tips and strategies, you may want to view a Video Tutor Solution of Two bodies with the same magnitude of acceleration. Part A Draw a free-body diagram for the load of bricks. Draw the vectors starting at the black dot. The location, orientation, and relative length of the vectors will be graded. The exact length of the vectors will not be graded. No elements selected Select the elements from the list and add them to the canvas setting the appropriate attributes Draw the vectors starting at the black dot. The location, orientation, and relative length of the vectors will be graded. The exact length of the vectors will not be graded. No elements selected Select the elements from the list and add them to the canvas setting the appropriate attributes. Part C What is the magnitude of the upward acceleration of the load of bricks? Express your answer with the appropriate units. Part D What is the tension in the rope while the load is moving? Express your answer with the appropriate units. Part E How does the tension compare to the weight of the load of bricks? To the weight of the counterweight? Drag the terms on the left to the appropriate blanks on the right to complete the sentence. Reset Help smaller than The tension in the rope is the greater than weight of the load of bricks and the weight of the counterweigh. A load of bricks with mass m1 = 17.0 kg hangs from one end of a rope that passes over a small, frictionless pulley. A counterweight of mass m2 = 31.0 kg is suspended from the other end of the rope, as shown in (Figure 1). The system is released from rest. For related problem-solving tips and strategies, you may want to view a Video Tutor Solution of Two bodies with the same magnitude of acceleration. Part A Draw a free-body diagram for the load of bricks. Draw the vectors starting at the black dot. The location, orientation, and relative length of the vectors will be graded. The exact length of the vectors will not be graded. No elements selected Select the elements from the list and add them to the canvas setting the appropriate attributes Draw the vectors starting at the black dot. The location, orientation, and relative length of the vectors will be graded. The exact length of the vectors will not be graded. No elements selected Select the elements from the list and add them to the canvas setting the appropriate attributes. Part C What is the magnitude of the upward acceleration of the load of bricks? Express your answer with the appropriate units. Part D What is the tension in the rope while the load is moving? Express your answer with the appropriate units. Part E How does the tension compare to the weight of the load of bricks? To the weight of the counterweight? Drag the terms on the left to the appropriate blanks on the right to complete the sentence. Reset Help smaller than The tension in the rope is the greater than weight of the load of bricks and the weight of the counterweigh. A load of bricks with mass m1 = 17.0 kg hangs from one end of a rope that passes over a small, frictionless pulley. A counterweight of mass m2 = 31.0 kg is suspended from the other end of the rope, as shown in (Figure 1). The system is released from rest. For related problem-solving tips and strategies, you may want to view a Video Tutor Solution of Two bodies with the same magnitude of acceleration. Part A Draw a free-body diagram for the load of bricks. Draw the vectors starting at the black dot. The location, orientation, and relative length of the vectors will be graded. The exact length of the vectors will not be graded. No elements selected Select the elements from the list and add them to the canvas setting the appropriate attributes Draw the vectors starting at the black dot. The location, orientation, and relative length of the vectors will be graded. The exact length of the vectors will not be graded. No elements selected Select the elements from the list and add them to the canvas setting the appropriate attributes. Part C What is the magnitude of the upward acceleration of the load of bricks? Express your answer with the appropriate units. Part D What is the tension in the rope while the load is moving? Express your answer with the appropriate units. Part E How does the tension compare to the weight of the load of bricks? To the weight of the counterweight? Drag the terms on the left to the appropriate blanks on the right to complete the sentence. Reset Help smaller than The tension in the rope is the greater than weight of the load of bricks and the weight of the counterweigh.

Solution
0 0

Consider the 58.0 kg mountain climber in the figure. (a) Find the tension in the rope (in N) and the force that the mountain climber must exert with her feet (in N) on the vertical rock face to remain stationary. Assume that the force is exerted parallel to her legs. Also, assume negligible force exerted by her arms. tension in rope N force on feet N (b) What is the minimum coefficient of friction between her shoes and the cliff?Consider the 58.0 kg mountain climber in the figure. (a) Find the tension in the rope (in N) and the force that the mountain climber must exert with her feet (in N) on the vertical rock face to remain stationary. Assume that the force is exerted parallel to her legs. Also, assume negligible force exerted by her arms. tension in rope N force on feet N (b) What is the minimum coefficient of friction between her shoes and the cliff?
Solution
0 0

Consider the Atwood machine in Fig. 1, where two blocks, one resting on top of the other. The blocks are tied to an ideal pulley (massless) through the rope and the rope can slip through the pulley without friction. The coefficients of static and kinetic frictions between the blocks are μ, and there is no friction between the block and the ground. Someone pulled the pulley with a force F. a. What will the maximum acceleration of the system be if the top block does not slip? ( 3 points) b. Now, assume that slipping does occur between the blocks. Draw the free-body diagrams of two blocks and the pulley w. (4 points) c. Express the acceleration of each block in terms of F, m1, m2, μ, and g when there is slipping. (Hint: pulley is massless, so the sum of the tensions in the rope equals to F ) (3 points)
